Phoenix 3022276 tope final CLIPFIX 35-5 para carriles DIN NS 35/7,5 y NS 35/15, poliamida, gris, libre de halógenos, UL 94 V0

With a vibration resistance of 2.2 g and shock resistance of 5 g, the Phoenix 3022276 CLIPFIX 35-5 end bracket secures terminal blocks on DIN rails even in demanding industrial environments. This gray polyamide bracket snaps onto NS 35/7.5 or NS 35/15 rails without tools, providing a stable end stop for horizontal assembly. Its UL 94 V0 flammability rating and halogen-free, silicone-free construction make it suitable for control cabinets and automation systems where safety and material purity are critical.

Overview

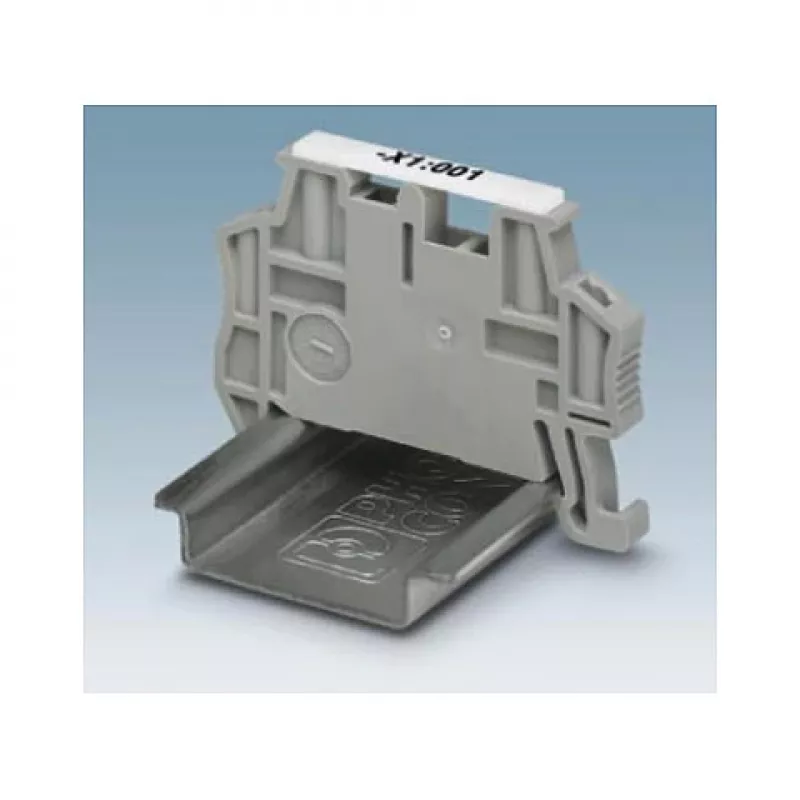

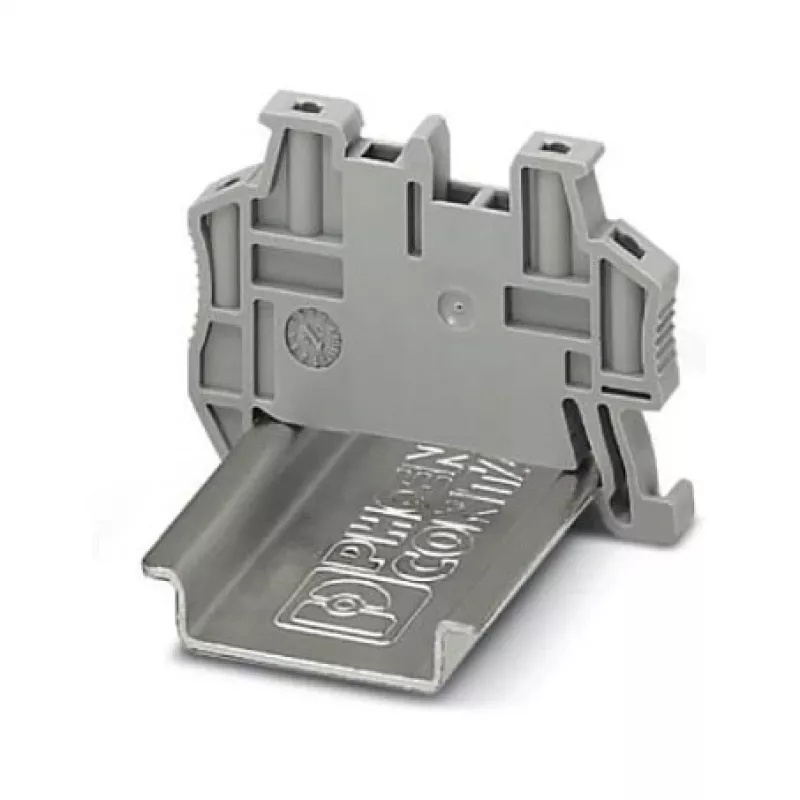

The Phoenix 3022276 end bracket, also known as CLIPFIX 35-5, is a compact accessory for DIN rail mounting. It acts as an end stop to prevent terminal blocks from sliding along the rail. The bracket is made from polyamide (PA) in gray, offering excellent mechanical strength and electrical insulation. It is designed for easy snap-on installation, reducing assembly time and eliminating the need for additional fasteners.

What stands out

• Tool-free snap-on mounting on standard DIN rails NS 35/7.5 and NS 35/15
• High resistance to vibration (2.2 g) and shock (5 g) per IEC 60068
• UL 94 V0 flammability rating for enhanced fire safety
• Halogen-free and silicone-free material, ideal for sensitive applications
• Wide operating temperature range from -60 °C to 105 °C
• Complies with RoHS, UL, cUL, and VDE standards

Technical details

• Product type: End bracket / End stop
• Mounting type: DIN rail
• DIN rail compatibility: NS 35/7.5, NS 35/15
• Material: Polyamide (PA)
• Color: Gray
• Insulating material group: I
• Flammability rating: V0 (UL 94)
• Operating temperature: -60 °C to 105 °C
• Storage/transport temperature: -60 °C to 105 °C
• Assembly temperature: -5 °C to 70 °C
• Halogen-free: Yes
• Silicone-free: Yes
• Shock resistance: 5 g (IEC 60068-2-27)
• Vibration resistance: 2.2 g (IEC 60068-2-6)
• Approvals: RoHS, UL, cUL, VDE
• Assembly position: Horizontal
• Fixing method: Snap-on / Clip-on

Our verdict

The Phoenix 3022276 CLIPFIX 35-5 is a reliable and durable end bracket that simplifies DIN rail assembly. Its robust polyamide construction, combined with excellent temperature and vibration tolerance, makes it a smart choice for industrial control panels and automation projects. The tool-free installation and compliance with key safety standards add practical value for both installers and system integrators.
