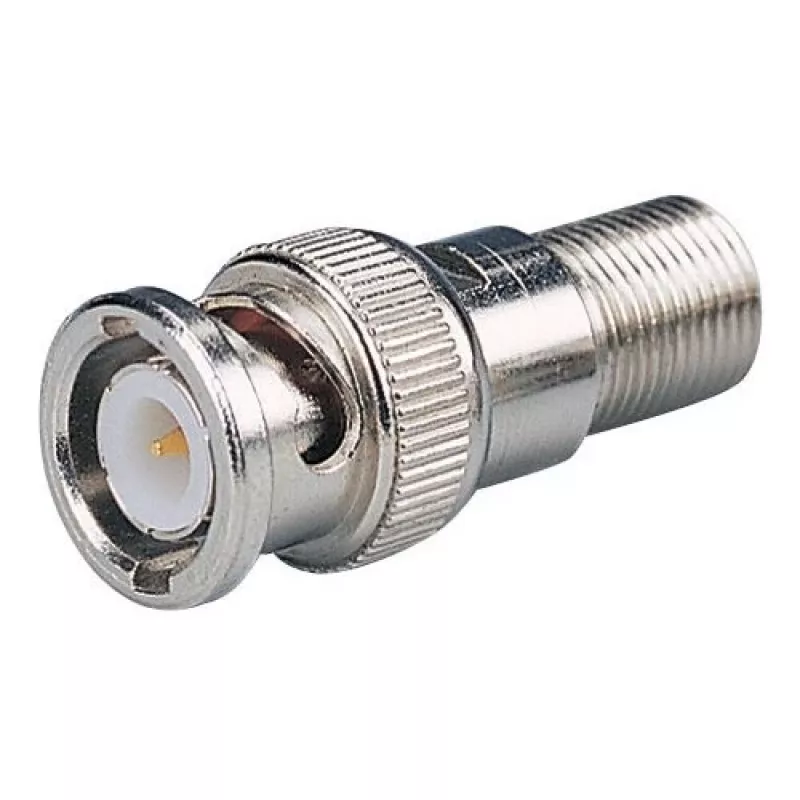

DELTA Adaptador BNC a F-Type, conector hembra F a conector macho BNC, 75 ohmios, latón niquelado

This coaxial adapter converts an F-type female socket to a BNC male plug, enabling seamless connection between devices with different RF interfaces. Its 75-ohm impedance and low insertion loss preserve signal integrity in video and RF applications.

Advantages

Precision-machined brass body with nickel plating ensures durability and corrosion resistance. PTFE insulation supports stable performance across a wide frequency range from DC to 1 GHz, while the low VSWR of less than 1.3:1 minimizes signal reflection. The adapter withstands up to 500 mating cycles, making it reliable for repeated connections.

Suitable for

• CCTV and video surveillance systems
• Satellite TV and cable TV installations
• RF test and measurement setups
• Broadcast equipment interconnection

Key specifications

• Connector A: F-type female (socket)
• Connector B: BNC male (plug)
• Impedance: 75 Ohm
• Frequency range: DC to 1 GHz
• Body material: Brass, nickel-plated
• Insulator: PTFE
• Insertion loss: < 0.2 dB at 1 GHz
• Operating temperature: -40°C to +85°C
• RoHS compliant

Recommendations

Ideal for technicians and installers who need a reliable, low-loss adapter for connecting F-type and BNC equipment in professional AV and RF environments.
