DELTA LZ-8/E unidad de distribución de corriente, 8 salidas, 10-30V DC, 8A, borne de tornillo

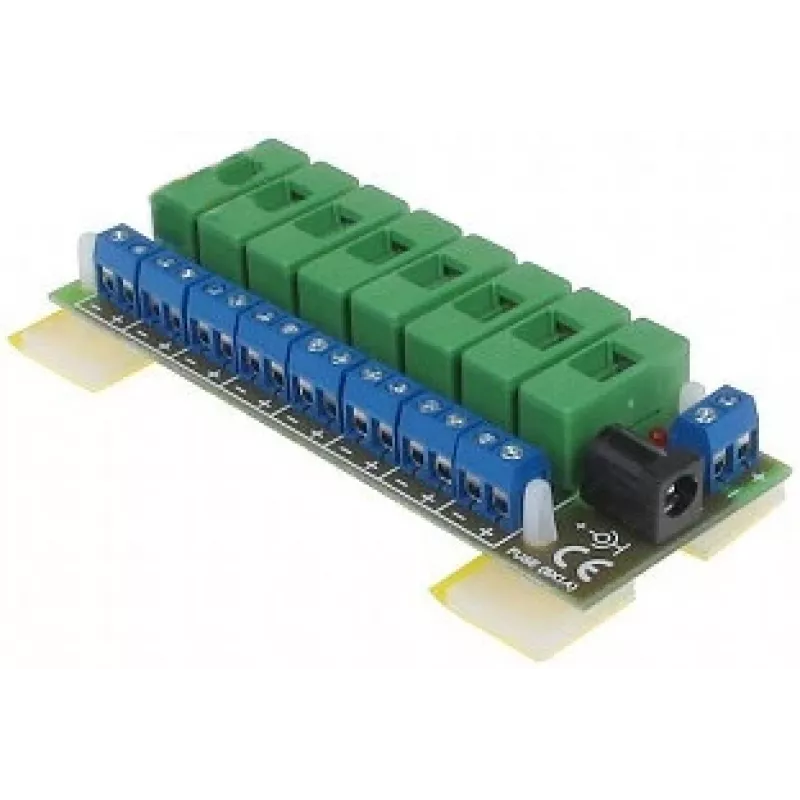

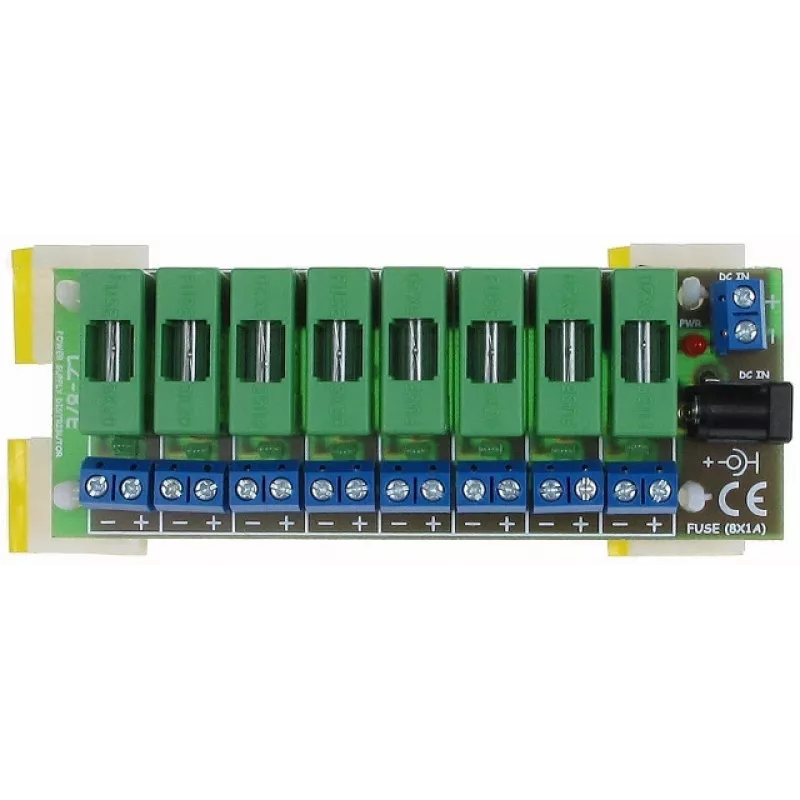

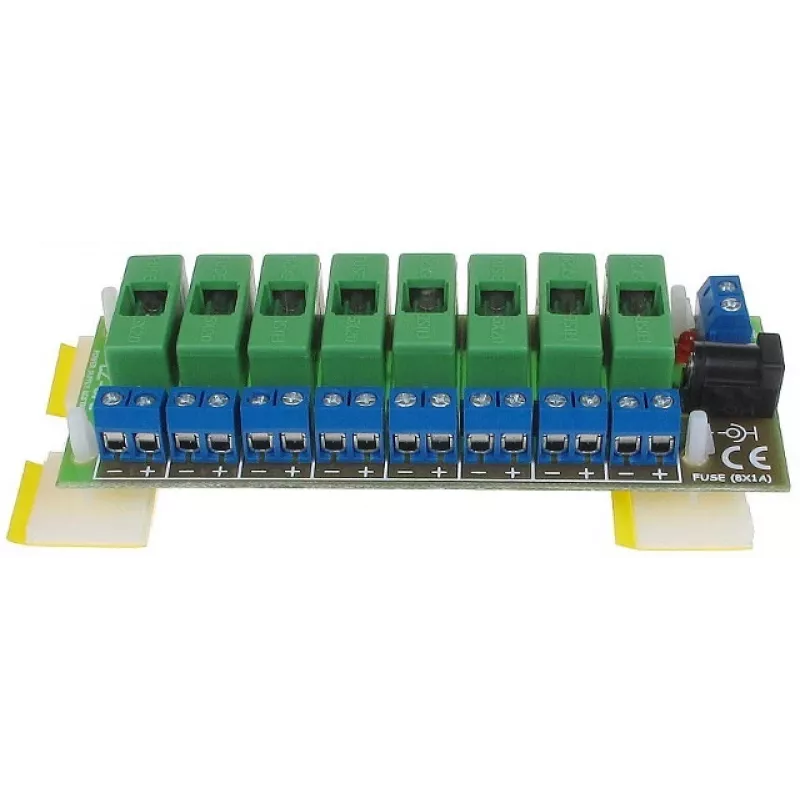

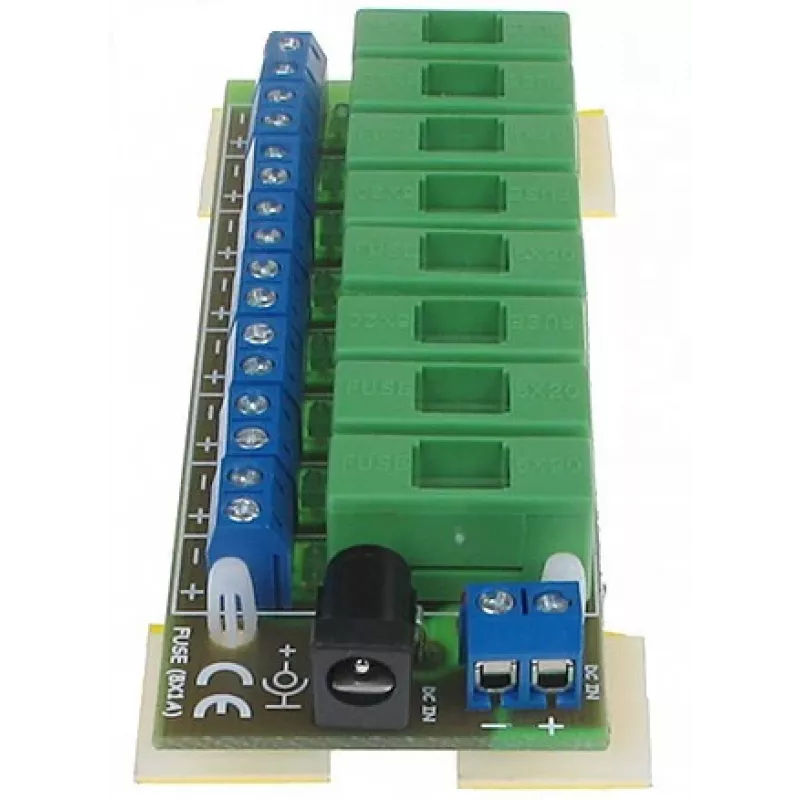

The DELTA LZ-8/E is a compact and reliable DC power distribution unit designed for distributing power to multiple devices in security, access control, and automation systems. It accepts a wide input voltage range of 10V to 30V DC and provides 8 individually fused outputs, each rated at 1A, with a total output current of 8A. The unit features screw terminal connectors for both input and outputs, ensuring secure and easy wiring. Built with individual PTC fuses per output, it offers protection against short circuits and overloads, enhancing system safety and uptime. The LZ-8/E includes a power status LED for quick visual indication and is designed for surface mounting via mounting holes. Its compact PCB-based design with an optional plastic cover makes it suitable for installation in confined spaces such as CCTV cabinets, access control enclosures, and alarm panels.

Advantages

Reliable power distribution with individual output protection ensures that a fault on one output does not affect others. Wide input voltage range accommodates various DC power sources. Compact and easy to mount, saving space in equipment racks and enclosures.

Suitable for

• CCTV systems
• Access control systems
• Alarm systems
• DC power distribution in industrial and commercial applications

Key specifications

• Input Voltage: 10-30V DC
• Output Voltage: Equal to input voltage
• Number of Outputs: 8
• Max Current per Output: 1A
• Total Max Output Current: 8A
• Output Protection: Individual PTC fuses
• Protection Features: Short-circuit (SCP), Overload (OCP)
• Input Connector: Screw terminal block
• Output Connectors: Screw terminal blocks
• Operating Temperature: -10°C to +50°C
• Mounting: Surface mount (via mounting holes)
• Enclosure Material: PCB (with optional plastic cover)
• LED Indicators: Power status LED
• Compliance: CE

Recommendations

For optimal performance, ensure the input voltage is within the specified range and do not exceed the total output current of 8A. Use appropriate gauge wires for connections. The unit is intended for indoor use only.
