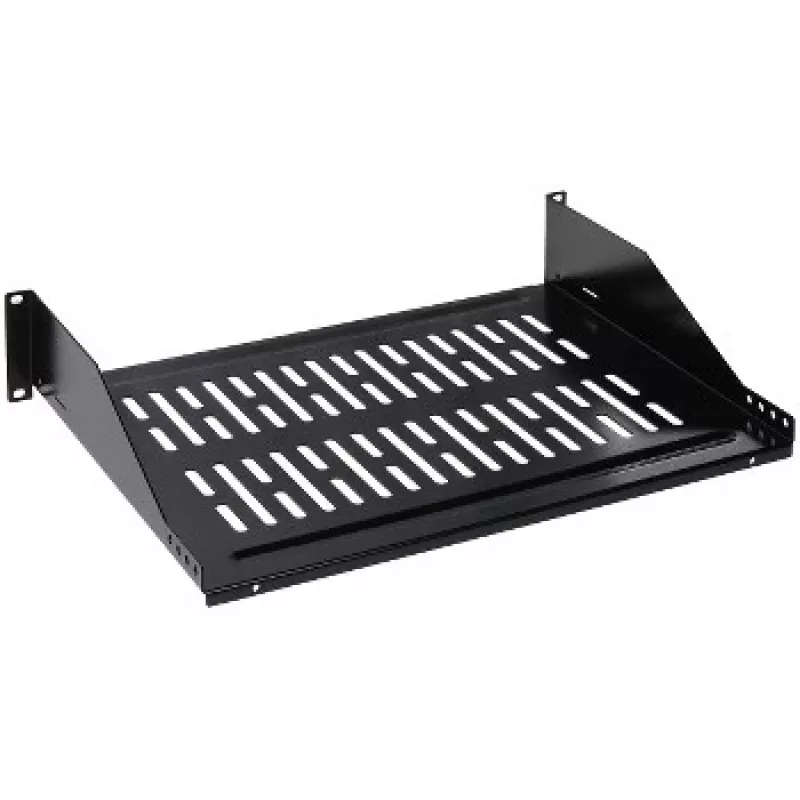

DELTA OPTICAL P19-2U/356*P2 estante fijo 19" 2U para armario rack 356 mm negro

The DELTA OPTICAL P19-2U/356*P2 is a robust 19-inch 2U fixed shelf designed for professional server racks and cabinets. Manufactured from high-quality steel with a powder-coated finish in black (RAL 9004), this shelf provides a reliable platform for mounting network equipment, servers, or other rack-mountable devices. With a depth of 356 mm and a load capacity of 25 kg, it offers ample space and strength for various applications. The shelf features a solid (non-vented) design and includes mounting hardware for easy 4-point installation on front and rear rack rails.

Advantages

Sturdy steel construction ensures long-lasting durability. The powder-coated finish provides corrosion resistance and a professional appearance. Easy to install with included mounting kit. Compact 2U height saves valuable rack space while offering a usable shelf area of 440 x 350 mm.

Suitable for

• 19-inch server racks and cabinets
• Supporting network switches, patch panels, or small servers
• Data centers, server rooms, and network closets

Key specifications

• Rack Unit Height: 2U
• Rack Width Compatibility: 19 inches
• Shelf Depth: 356 mm
• Material: Steel
• Color: Black (RAL 9004)
• Load Capacity: 25 kg
• Mounting Type: 4-point mounting (front and rear)
• Ventilation: Solid (Non-Vented)
• Finish: Powder Coated
• Mounting Hardware: Included
• Compliance: RoHS
• External Dimensions (W x D x H): 482.6 x 356 x 88.9 mm
• Usable Shelf Area (W x D): 440 x 350 mm

Recommendations

For optimal performance, ensure the rack rails are properly aligned and securely fastened. The shelf is designed for indoor use only. Do not exceed the maximum load capacity of 25 kg.
