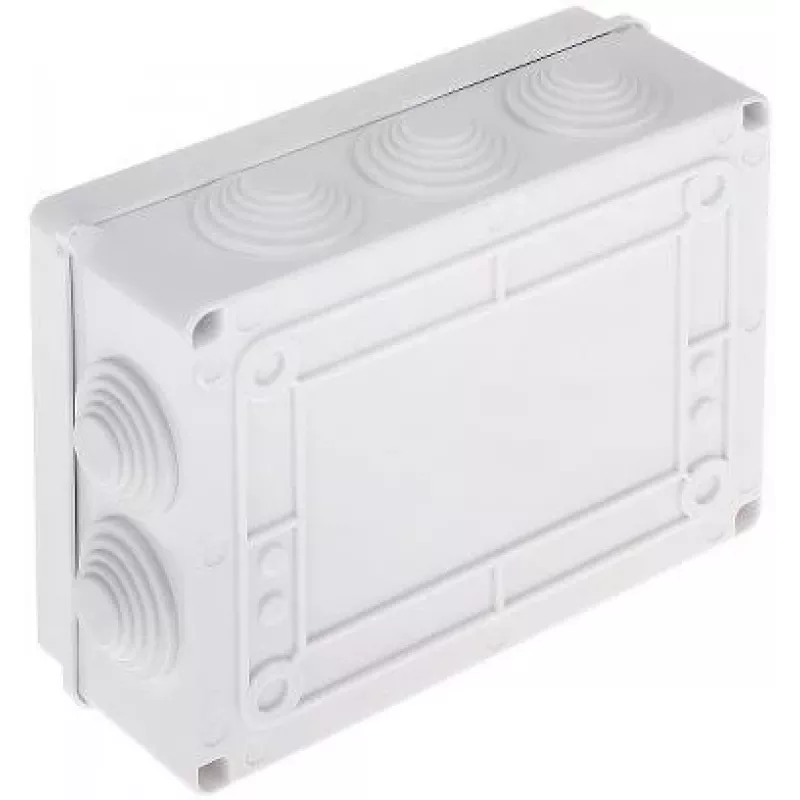

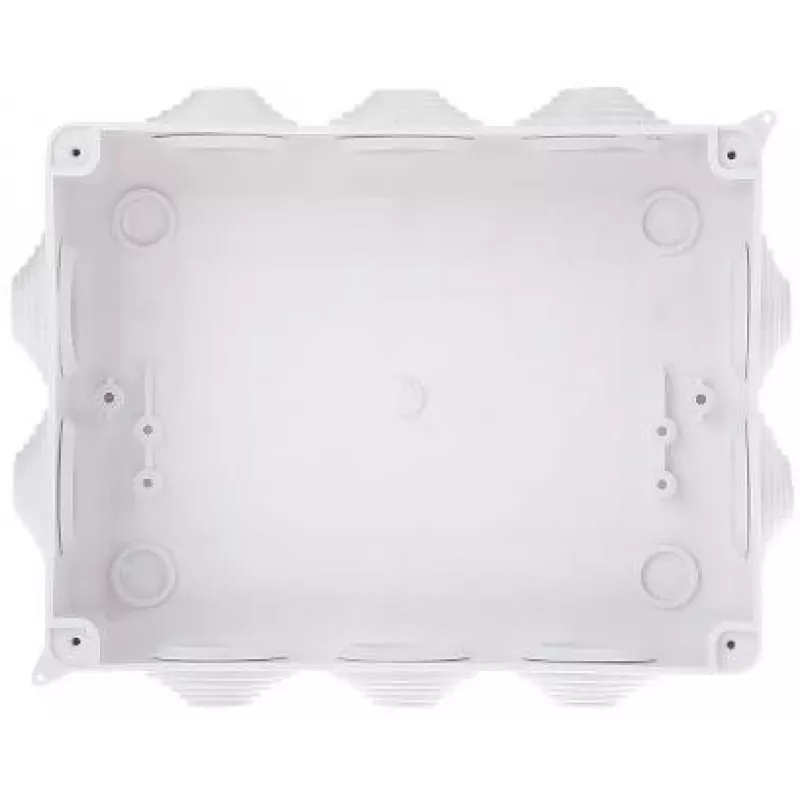

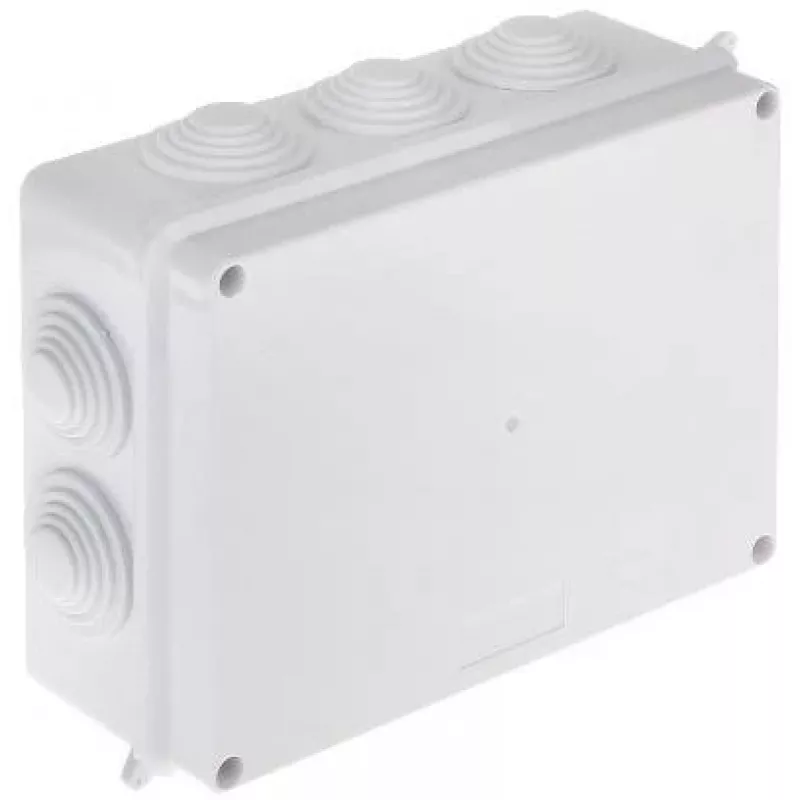

DELTA PK-200X155 caja de conexiones IP65 200x155x80mm gris

The DELTA PK-200X155 IP65 is a robust hermetic electrical junction box designed for demanding indoor and outdoor applications. Manufactured from high-quality polypropylene (PP) with a grey (RAL 7035) finish, this enclosure offers reliable protection against dust and water ingress, making it ideal for industrial, commercial, and residential installations.

Advantages

This junction box provides excellent durability and environmental resistance. Its IP65 rating ensures complete protection against dust ingress and low-pressure water jets, while the IK07 impact rating safeguards against mechanical shocks. The EPDM gasket seal guarantees long-lasting performance, and the halogen-free, UV-resistant material ensures safety and longevity in harsh conditions. The box features four plastic screws for secure lid fastening and external lugs for surface mounting, simplifying installation.

Suitable for

• Electrical junction and connection points in industrial environments
• Outdoor installations such as gardens, terraces, and building exteriors
• Commercial and residential wiring projects requiring a weatherproof enclosure
• Telecommunications and network infrastructure where dust and moisture protection is critical

Key specifications

• Product Type: Hermetic Electrical Junction Box / Enclosure
• Ingress Protection: IP65
• Material: Polypropylene (PP)
• Colour: Grey (RAL 7035)
• External Dimensions (L x W x H): 200 x 155 x 80 mm
• Lid Fastening: 4x Plastic Screws
• Seal Material: EPDM Gasket
• Mounting Type: Surface Mount (via external lugs)
• Operating Temperature Range: -25°C to +60°C
• Impact Resistance: IK07
• UV Resistance: Yes
• Halogen-Free: Yes
• Glow Wire Test: 650°C (IEC 60695-2-11)
• Certifications: CE, RoHS
• Cable Entries: No pre-drilled entries (user-configurable with cable glands)
• Internal Mounting Options: Bosses for mounting plate/DIN rail

Recommendations

For optimal performance, use appropriate cable glands to maintain the IP65 rating when making cable entries. Ensure the mounting surface is clean and flat for proper sealing. This enclosure is suitable for both indoor and outdoor use, but avoid prolonged exposure to extreme temperatures beyond the specified range.
