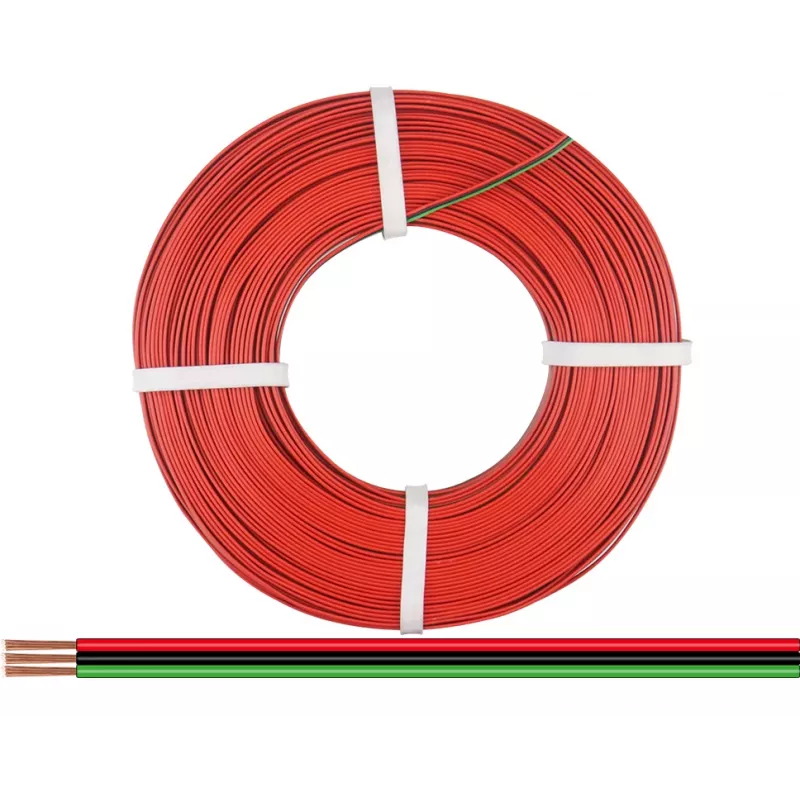

Donau Elektronik 318-014-50 cable flexible 3 x 0,14 mm² rojo, verde, negro 50 m

Stranded wire with three tinned copper conductors, each 0.14 mm², in red, green and black PVC insulation. This 50 m spool is suited for internal wiring, model building and hobby electronics where flexible, colour-coded connections are required.

Advantages

The tinned copper strands provide good solderability and resistance to oxidation. PVC insulation offers durability and flexibility, while the three distinct colours simplify circuit identification.

Suitable for

• Internal wiring of electronic devices
• Model building and hobby projects
• Low-voltage signal and control circuits

Key specifications

• Conductor: tinned copper, stranded
• Cross-section: 0.14 mm² per core
• Number of cores: 3
• Insulation colours: red, green, black
• Length: 50 m
• Nominal voltage: 300 V
• Temperature range: -30 °C to +80 °C
• Outer diameter: 3.0 mm
• AWG equivalent: 26 AWG

Recommendations

For clean installations, use a wire stripper adjusted to 26 AWG and secure connections with solder or crimp terminals suitable for 0.14 mm² conductors.
