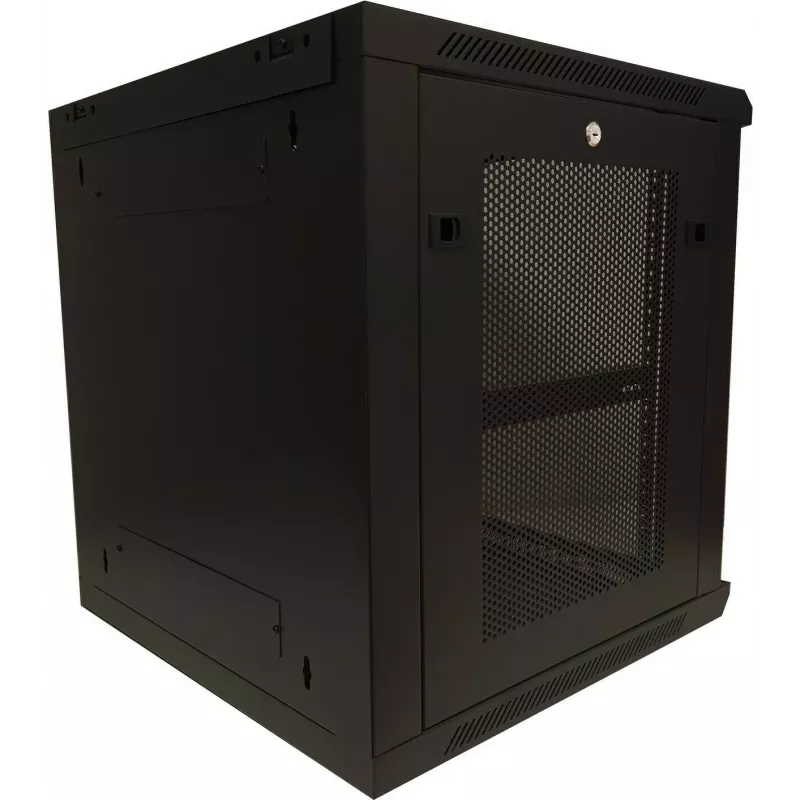

DSIT Armario servidor de pared 12U 19" con puerta de cristal y paredes laterales perforadas 600x600x635 mm (DS6612ZP)

The DSIT 12U wall-mount server cabinet secures and organizes 19-inch IT equipment in a compact, space-saving design. Its tempered glass front door and lockable, perforated side panels combine visibility, security, and passive ventilation for reliable operation.

Advantages

This cabinet offers a robust SPCC cold-rolled steel construction with a static load capacity of 60 kg, making it suitable for a wide range of networking and server components. The pre-assembled enclosure simplifies installation, while the removable side panels and adjustable mounting rails allow for flexible equipment configuration. Top and bottom cable entry points with brush strips ensure clean cable management and protection against dust.

Suitable for

• Small and medium-sized business network installations
• Wall-mounted server and patch panel enclosures
• Secure housing for switches, routers, and UPS devices
• IT closets and areas with limited floor space

Key specifications

• Rack capacity: 12U
• External dimensions (WxDxH): 600 x 600 x 635 mm
• Usable depth: approx. 550 mm
• Front door: tempered glass with key lock
• Side panels: removable, perforated, lockable
• Material: SPCC cold-rolled steel, powder-coated black (RAL 9005)
• Static load capacity: 60 kg
• Protection rating: IP20
• Compliance: CE, RoHS

Recommendations

For optimal airflow, leave at least 10 cm clearance around the cabinet and use the included fan cutouts on the top panel if active cooling is required. Regularly inspect locks and hinges to maintain security.
