DSIT DS10-3304 armario servidor de pared 10 inch 4U con puerta de cristal, 312x310x264 mm, negro

With a static load capacity of 20 kg and a lockable glass front door, the DSIT DS10-3304 10-inch wall-mount cabinet secures compact network equipment in a sleek, space-saving footprint of just 312 x 310 x 264 mm. This 4U enclosure is engineered for small offices, retail back rooms, and edge deployments where every millimetre counts.

Overview

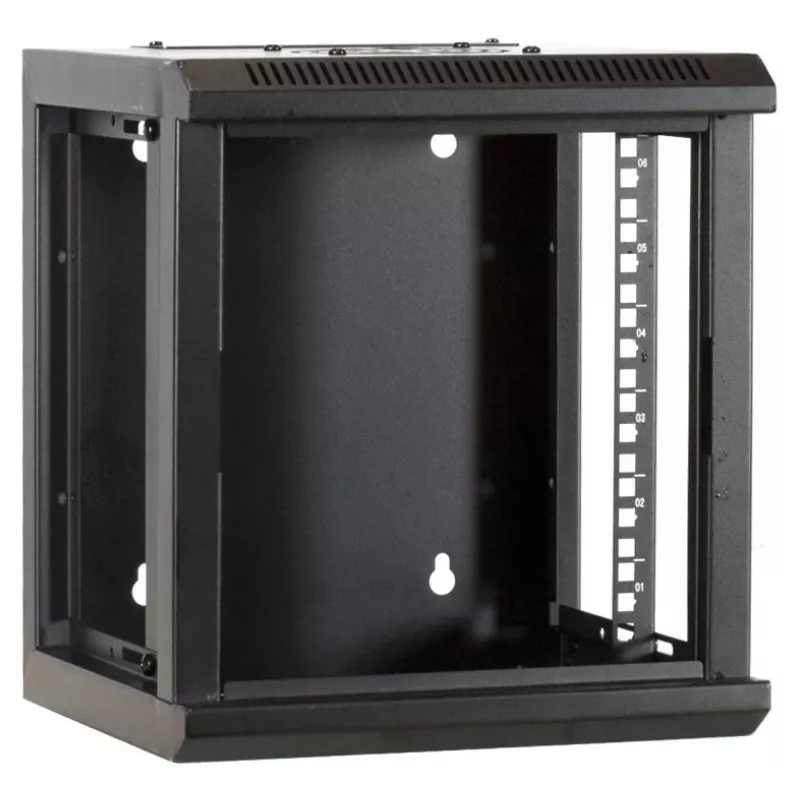

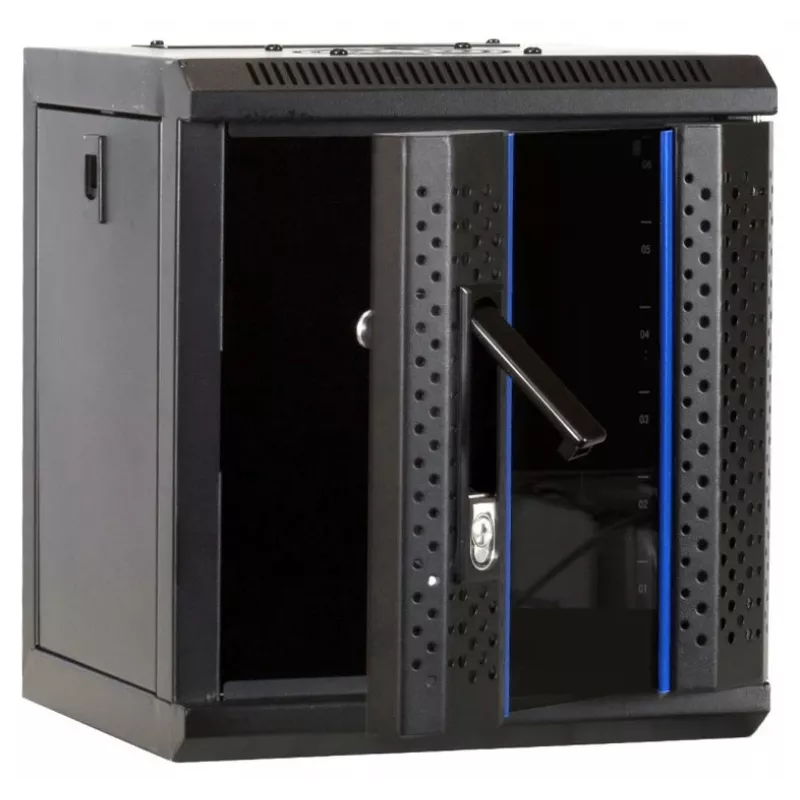

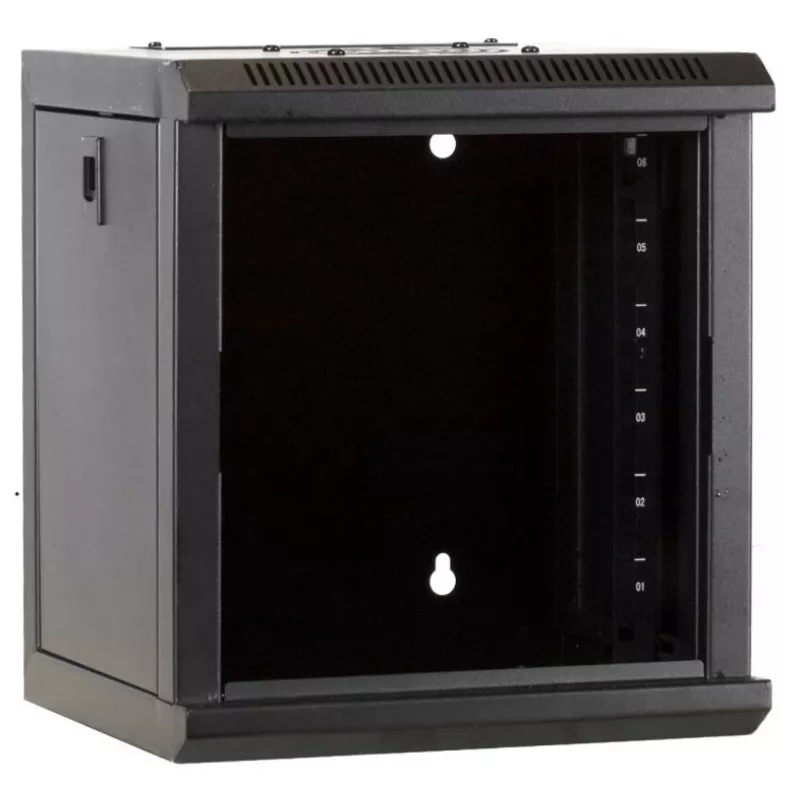

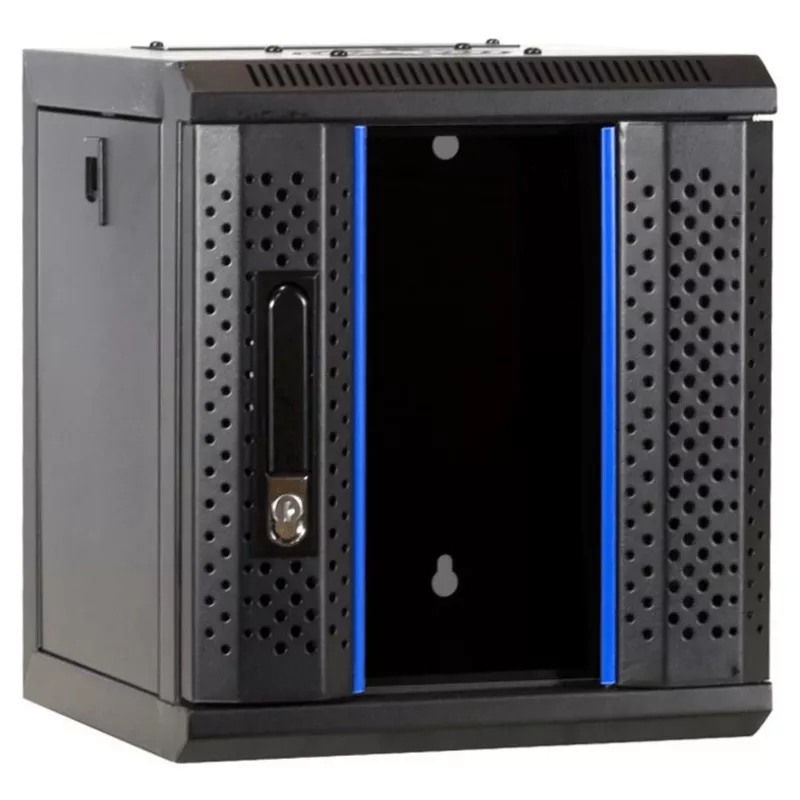

The DSIT DS10-3304 is a pre-assembled, wall-mountable rack cabinet built around the 10-inch standard. It offers four rack units (4U) of vertical space, with adjustable-depth mounting rails that provide a usable depth of approximately 260 mm. The front is fitted with a tempered glass door that locks with a key, combining visibility of status LEDs with physical security. The cabinet is constructed from SPCC cold-rolled steel with a powder-coated finish in black (RAL 9005), ensuring durability and a professional appearance. Passive ventilation slots on the top and bottom promote natural airflow, while knockouts on both ends allow clean cable entry from above or below. The fixed side panels are not removable, but the front door can be opened for easy access to equipment. Compliance with CE and RoHS directives confirms the cabinet meets European safety and environmental standards, and its IP20 protection rating is suitable for indoor use in clean environments.

What stands out

• Lockable glass front door: keeps equipment visible yet protected from unauthorised access.
• Adjustable 10-inch mounting rails: accommodate a variety of device depths up to ~260 mm.
• Wall-mount design: frees up floor space and keeps cabling out of the way.
• 20 kg load capacity: robust enough for switches, patch panels, and small servers.
• Tool-less assembly: arrives pre-assembled, ready to mount in minutes.

Technical details

• Rack standard: 10 inch
• Rack units: 4U
• External dimensions (W x D x H): 312 x 310 x 264 mm
• Usable depth: approx. 260 mm
• Material: SPCC cold-rolled steel
• Colour: black (RAL 9005), powder-coated
• Maximum static load: 20 kg
• Front door: lockable glass, with key
• Side panels: fixed
• Ventilation: passive slots (top and bottom)
• Cable entry: knockouts on top and bottom
• Protection class: IP20
• Compliance: CE, RoHS

Our verdict

The DSIT DS10-3304 is a compact, secure, and well-built solution for 10-inch networking gear. Its glass door and solid steel construction make it a reliable choice for small-scale installations where security and visibility matter.
