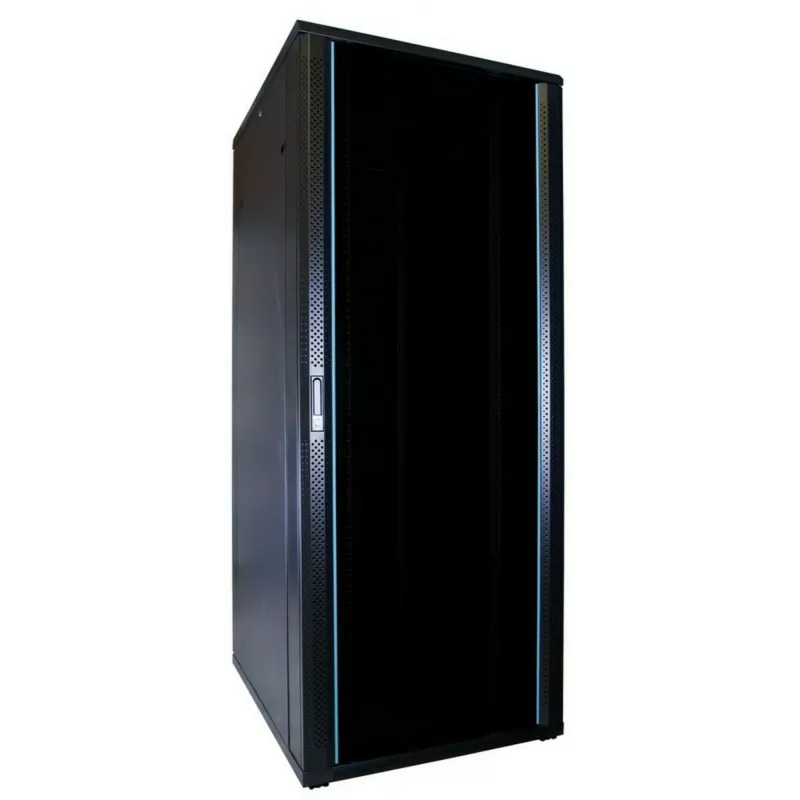

DSIT DS8042 Armario rack de servidor 42U 19" con puerta de vidrio templado, 800x1000mm, negro

With a massive 800 kg static load capacity, the DSIT DS8042 is built to anchor even the densest data center deployments. This 42U 19-inch rack cabinet combines a sleek tempered glass front door with a fully perforated steel rear door for optimal passive airflow, all in a durable black RAL 9005 finish.

Overview

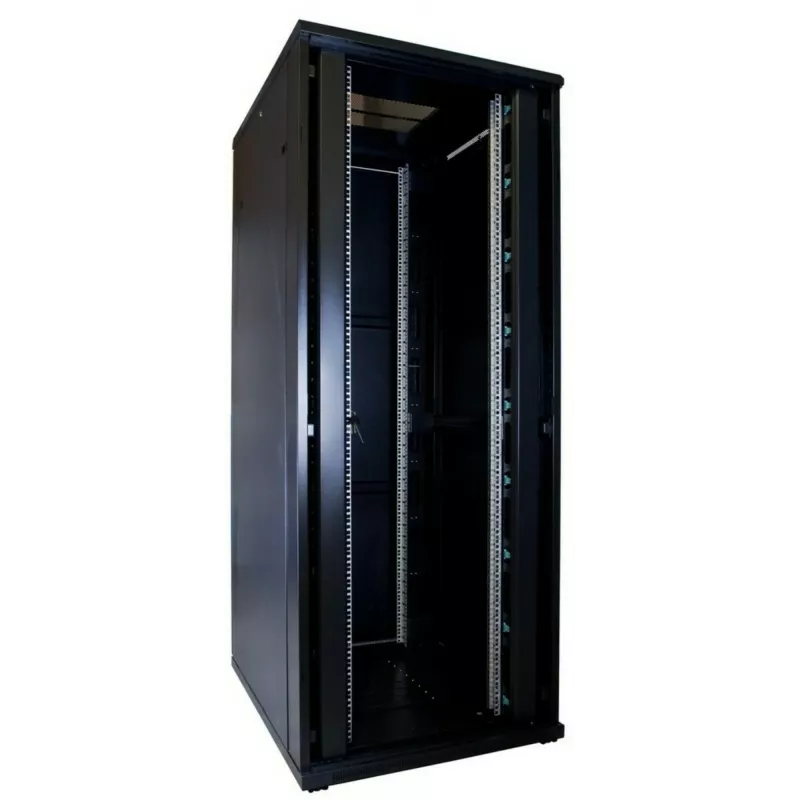

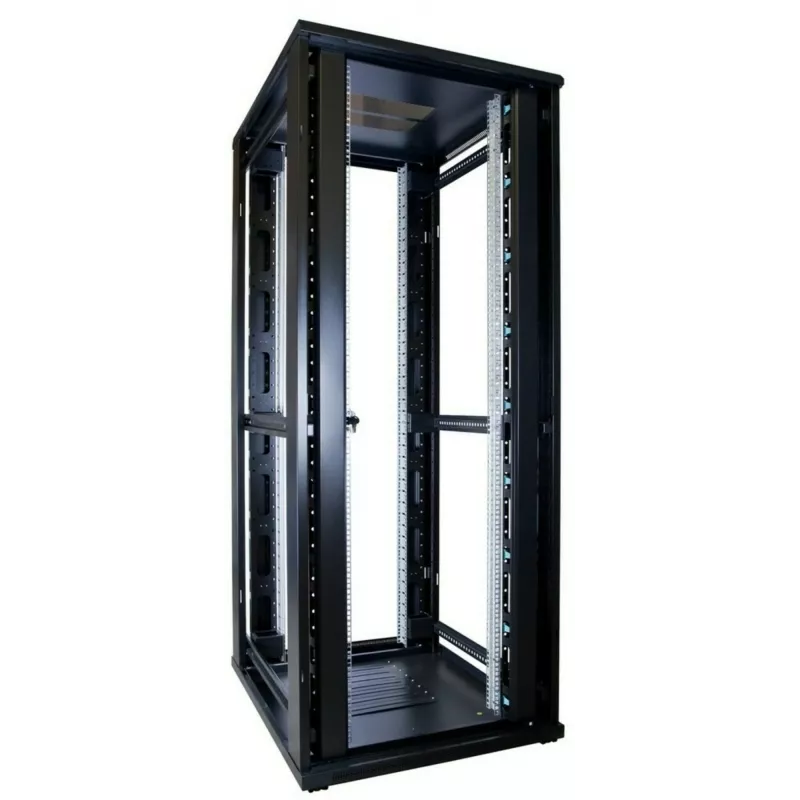

The DS8042 is a freestanding server rack cabinet engineered for professional IT environments. Its 800 mm width and 1000 mm depth provide ample space for deep servers and cable management, while the 2000 mm height accommodates 42 rack units. The cabinet is constructed from SPCC cold rolled steel, ensuring rigidity and longevity. Front and rear adjustable mounting rails allow precise equipment alignment, and removable, lockable side panels offer easy access during installation and maintenance.

What stands out

• 42U capacity with 19-inch standard mounting rails, compliant with EIA-310-D and IEC 60297-3-100.

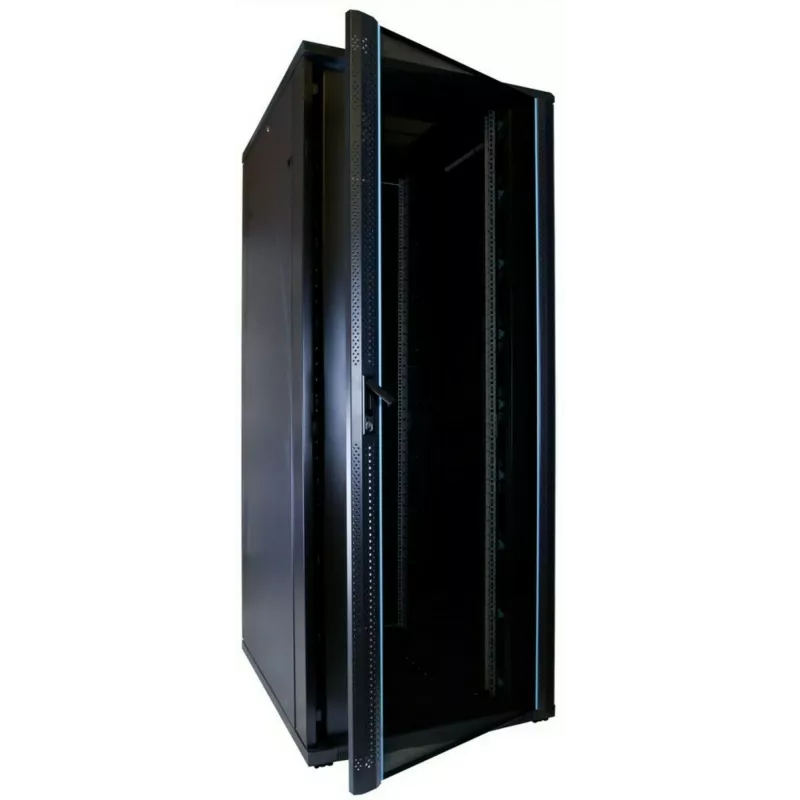

• Tempered glass front door with multi-point locking for security and visibility.
• Perforated steel rear door promotes passive ventilation; provision for optional fan units.
• Removable and lockable side panels, each with single-point locking.
• Top and bottom cable entry with brush strips to maintain cleanliness and airflow.
• Included accessories: 4 leveling feet, 4 castors, 4 keys (2 front, 2 rear, 2 side), and 20 cage nuts & screws.
• IP20 protection rating, suitable for indoor use in controlled environments.
• Fully assembled for immediate deployment.

Technical details

• External dimensions (W x D x H): 800 x 1000 x 2000 mm
• Rack capacity: 42U
• Material: SPCC cold rolled steel
• Colour: Black (RAL 9005)
• Static load capacity: 800 kg
• Mounting depth: adjustable, front and rear rails
• Protection class: IP20
• Locking: multi-point for doors, single-point for side panels
• Ventilation: passive via perforated rear door; fan unit provision
• Compliance: EIA-310-D, IEC 60297-3-100
• Assembly: fully assembled

Our verdict

The DSIT DS8042 is a robust and secure choice for data centers and server rooms, offering excellent load capacity, thoughtful cable management, and a professional appearance with its glass front door.
