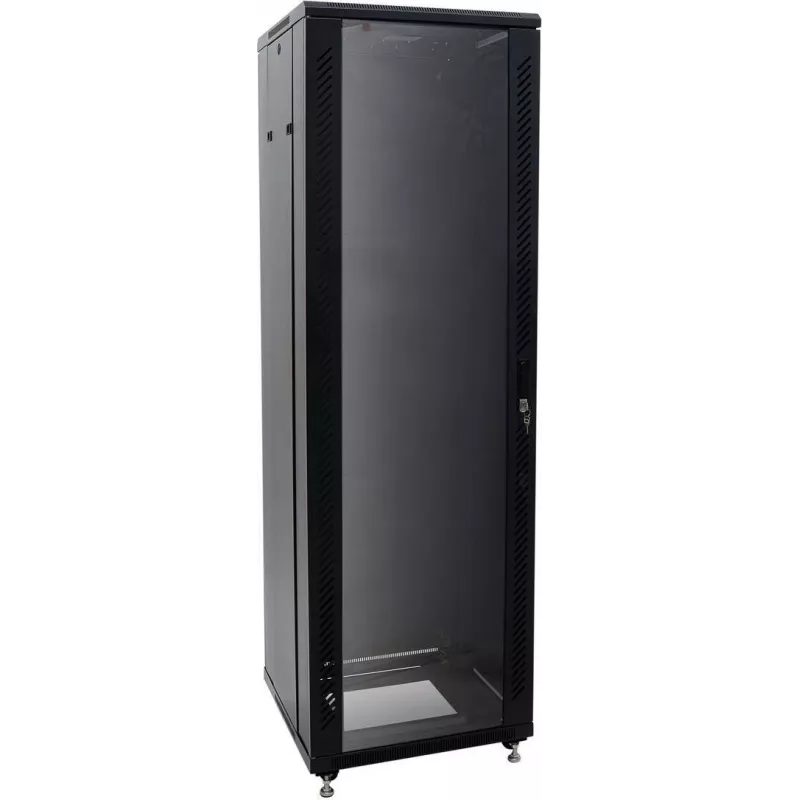

ROADINGER SSC-28 Armario de acero con puerta de cristal 28U, 60x60x143,5 cm, 150 kg de carga

Managing network equipment without proper housing leads to cable clutter, dust accumulation, and security risks. The ROADINGER SSC-28 solves these problems with a robust 19-inch steel cabinet that keeps servers, switches, and patch panels organized, protected, and accessible. Its tempered glass front door provides a clear view of equipment status while the lockable steel rear door ensures security. With a 150 kg load capacity and 28U of space, this cabinet is built for demanding IT environments.

Who is it for

This cabinet is ideal for IT administrators, network engineers, and system integrators who need a reliable, freestanding enclosure for small to medium server rooms, offices, or industrial settings. It suits businesses that require secure equipment storage with easy visual monitoring.

Main features

• 28U rack capacity for extensive equipment mounting
• Tempered glass front door with lock for security and visibility
• Steel rear door, also lockable, for full enclosure protection
• Removable side panels for easy access during installation and maintenance
• Adjustable mounting rails (150-480 mm depth) to accommodate various equipment
• Top and bottom cable entry points for flexible cable management
• Passive ventilation with optional fan mounting capability
• Powder-coated black finish (RAL 9005) for durability and professional appearance
• Flat-pack design for cost-effective shipping and on-site assembly

Specifications

• Rack Units: 28U
• External Dimensions (WxDxH): 600 x 600 x 1435 mm
• Max Load Capacity: 150 kg
• Material: Steel
• Front Door: Tempered glass, lockable
• Rear Door: Steel, lockable
• Side Panels: Removable
• Mounting Standard: 19-inch (483 mm)
• Mounting Rail Depth: Adjustable 150-480 mm
• Cable Entry: Top and bottom
• Protection Rating: IP20
• Ventilation: Passive (optional fan mounting)
• Surface Finish: Powder-coated
• Colour: Black (RAL 9005)
• Included Accessories: 2 keys, mounting hardware

Tips

To maximize airflow, consider installing optional fans in the designated mounting points. Use the adjustable rails to accommodate deeper equipment, and plan cable routing through the top or bottom entries for a clean setup. Ensure the floor can support the cabinet's weight when fully loaded.
