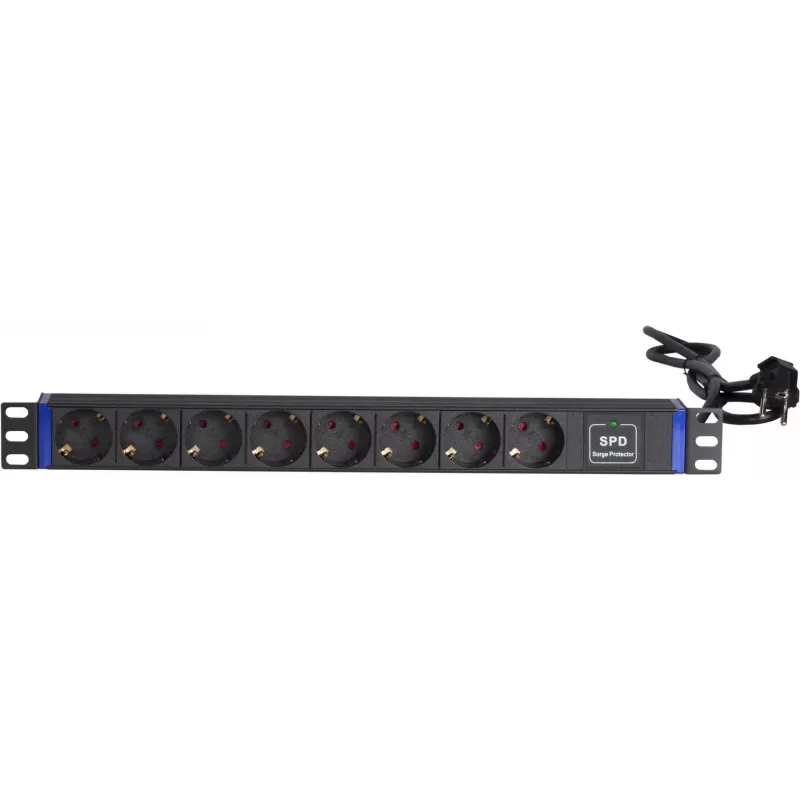

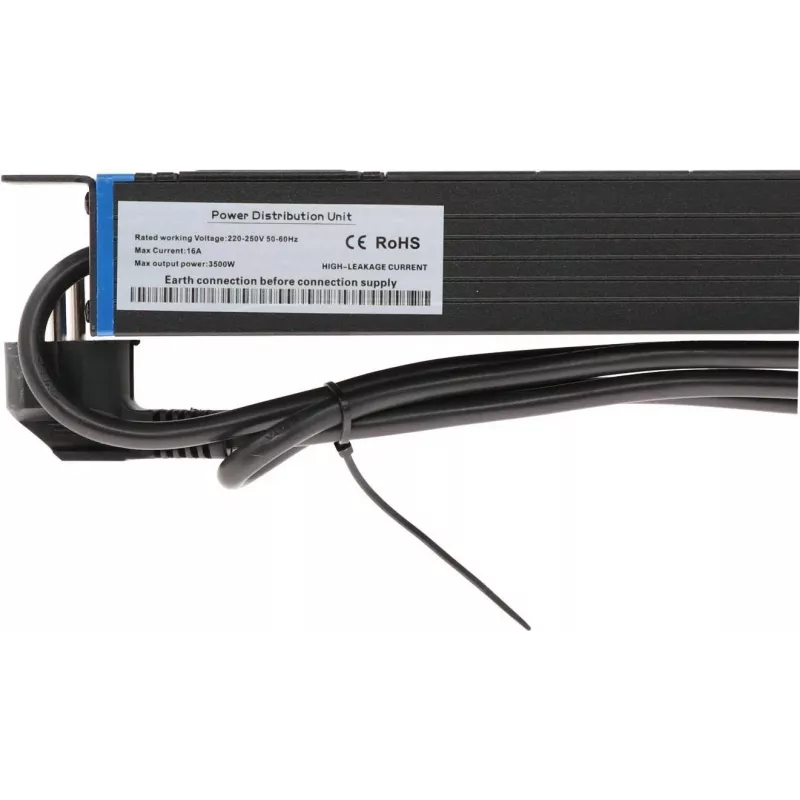

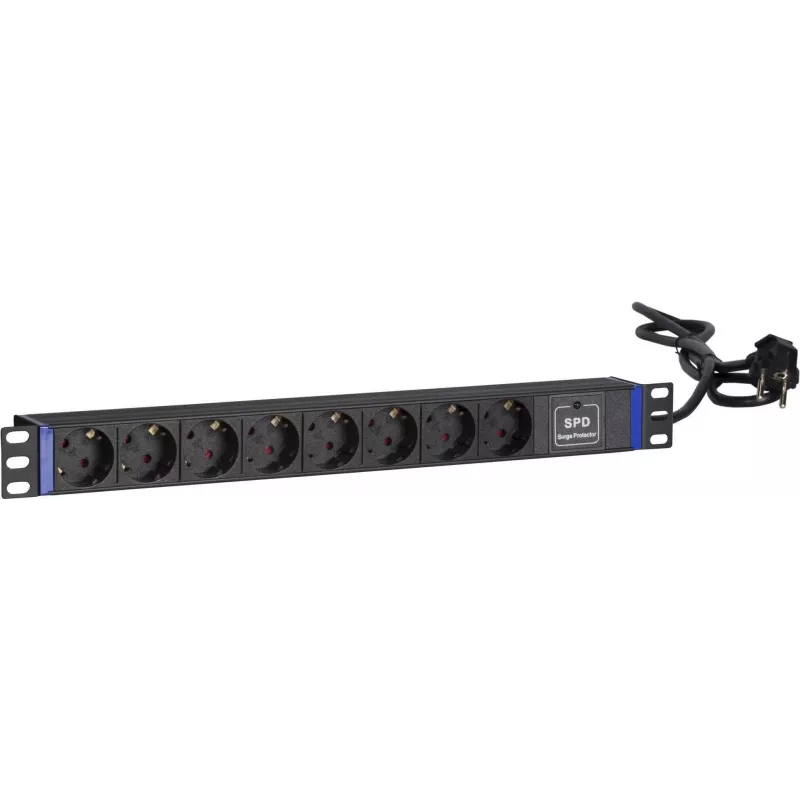

DSIT regleta de enchufes para montaje en rack 19" con 8 tomas y protección contra sobretensiones, PDU con cable de 2m, 16A, 1U, negro

Unprotected power distribution in a 19-inch rack leaves sensitive network equipment vulnerable to voltage spikes and surges. The DSIT DS-8PDU-SPD solves this by combining eight Schuko outlets with robust surge protection in a slim 1U aluminum housing. Its 2-meter cable with Schuko plug reaches standard rack power sources, while the illuminated switch and status LEDs give clear operational feedback. Whether you're equipping a server cabinet, network enclosure, or AV rack, this PDU delivers reliable power and safeguards your investment.

Who is it for

IT administrators, system integrators, and AV technicians who need dependable, surge-protected power distribution in professional 19-inch racks. Ideal for data centers, server rooms, network closets, and studio environments where equipment uptime is critical.

Main features

• 8 Schuko (CEE 7/3) outlets with surge protection up to 900 joules
• 19-inch rack mount, 1U height – fits standard server racks
• 2-meter H05VV-F 3G1.5mm² cable with Schuko (CEE 7/7) plug
• Illuminated on/off switch with integrated overload protection
• LED indicators for power and surge protection status
• Aluminum housing for durability and heat dissipation
• Rated 16A / 230V / 3680W for high-power loads
• CE and RoHS certified

Specifications

• Product type: Rack mount power strip with surge protection
• Mounting: 19-inch rack, 1U
• Outlets: 8 × Schuko (CEE 7/3)
• Input plug: Schuko (CEE 7/7)
• Cable length: 2 m
• Max current: 16 A
• Nominal voltage: 230 V AC
• Frequency: 50/60 Hz
• Max power: 3680 W
• Surge energy rating: 900 J
• Surge response time: < 1 ns
• Protection: Surge, overload
• Housing material: Aluminum
• Color: Black
• Switch: Illuminated on/off
• Indicators: Power LED, surge protection LED
• Certifications: CE, RoHS

Tips

For optimal surge protection, ensure the PDU is connected to a properly grounded outlet. Do not daisy-chain multiple surge protectors, as this can reduce effectiveness. Periodically check the surge protection LED – if it goes out, the surge protection component may be exhausted and the unit should be replaced.
