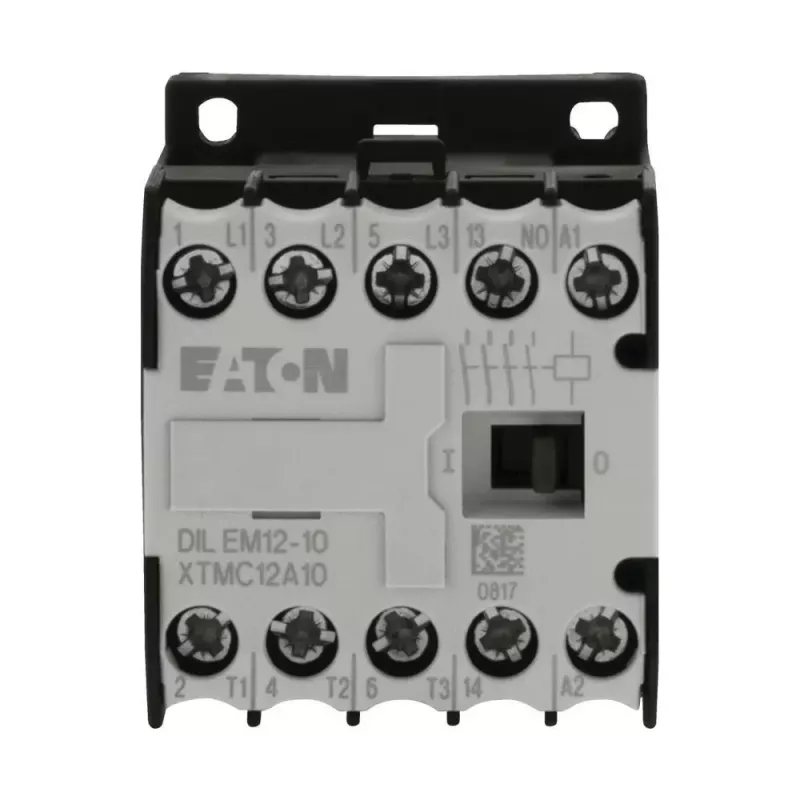

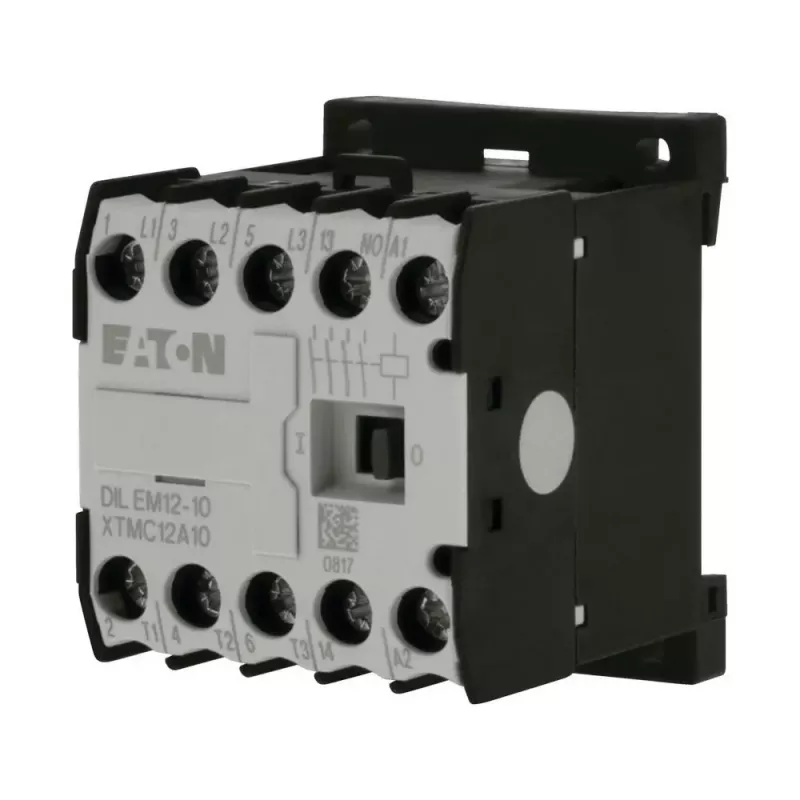

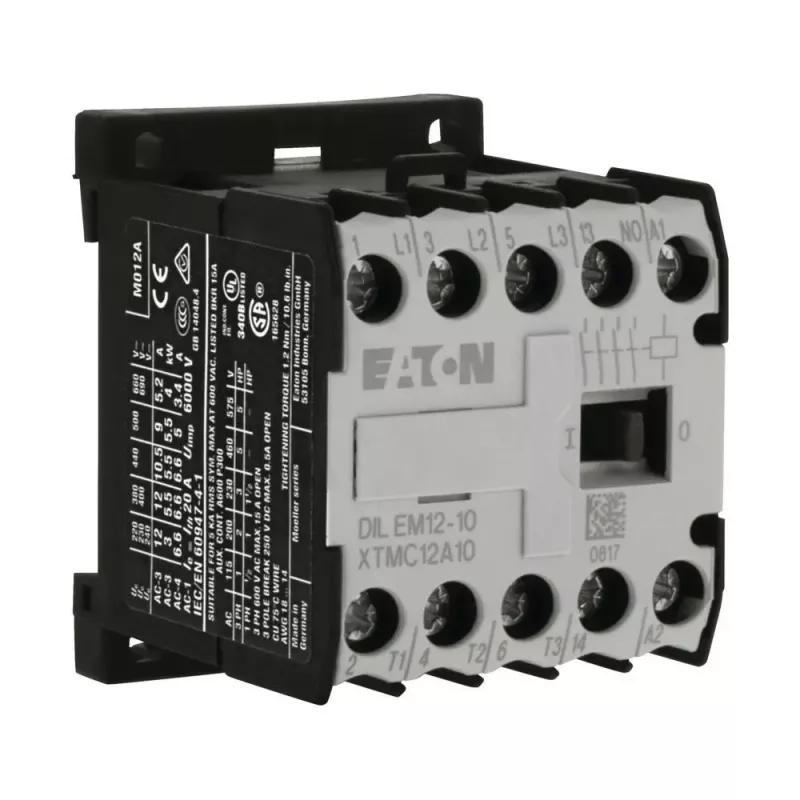

Eaton DILEM12-10 minicontactor, 3 polos, 12 A, bobina 230 V 50 Hz / 240 V 60 Hz, 1 contacto auxiliar NA, IP20, negro/blanco 127075

The Eaton DILEM12-10 mini contactor provides reliable switching of three-phase loads up to 5.5 kW at 400 V AC-3. Its compact 45 mm width and screw terminals make it ideal for space-saving control panel installations.

Advantages

With a mechanical life of 10 million operations and electrical durability of 1.5 million operations, this contactor ensures long-term performance. The IP20 protection and DIN rail or screw mounting offer flexible integration.

Suitable for

• Motor control in industrial automation
• Heating and lighting load switching
• Building management systems

Key specifications

• Rated operational current: 12 A (AC-3, 400 V)
• Coil voltage: 230 V 50 Hz / 240 V 60 Hz
• Number of poles: 3
• Auxiliary contacts: 1 NO
• Rated insulation voltage: 690 V
• Mounting: DIN rail or screw

Recommendations

Pair with a suitable motor protection circuit breaker for complete motor starting solutions.
