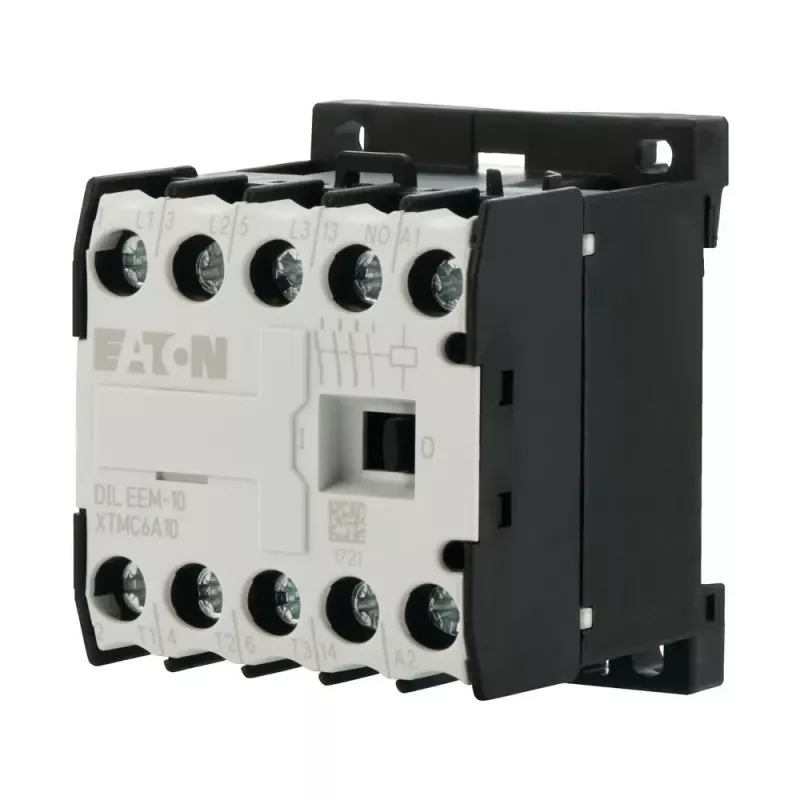

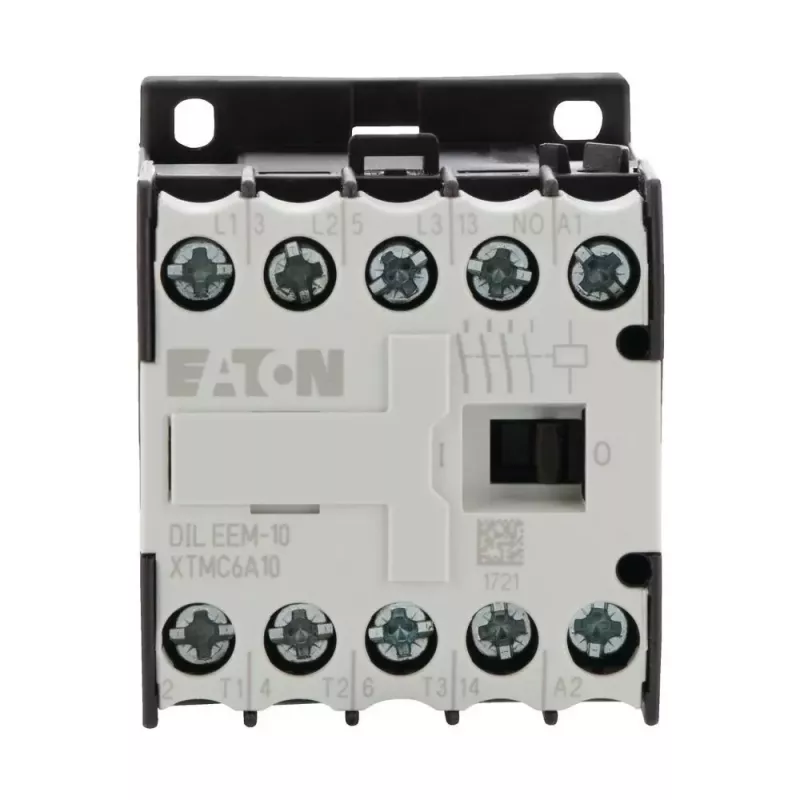

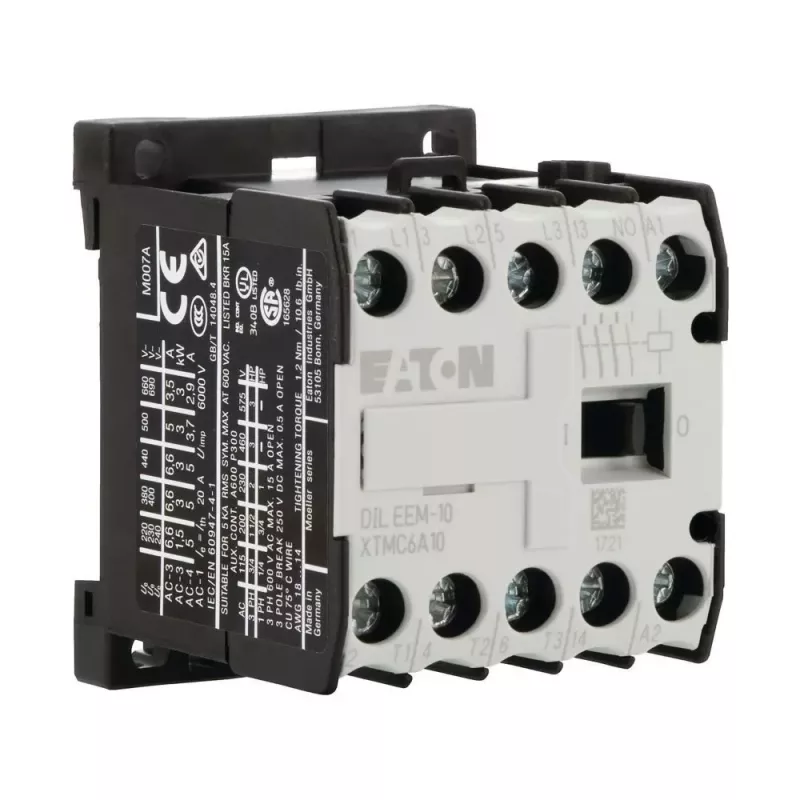

Minicontactor Eaton DILEEM-10 - 3 polos, bobina 230 V AC, 9 A, 4 kW, 1 contacto auxiliar NO, montaje en carril DIN, IP20, negro/blanco 056674

With a rated impulse withstand voltage of 6 kV and an insulation rating of 690 V, the Eaton DILEEM-10 mini contactor delivers robust switching for demanding motor control applications. This 3-pole contactor features a 230 V AC coil (50/60 Hz) and one normally open auxiliary contact, making it a versatile choice for industrial automation and building services. Its compact 45 mm width and DIN rail or screw mounting ensure easy integration into control panels, while the IP20 protection guards against accidental contact. The black and white housing provides clear visual identification, and screw terminals offer secure wiring. Compliant with IEC/EN 60947, this contactor is engineered for reliability and long service life.

Overview

The Eaton DILEEM-10 is a mini contactor designed for switching three-phase loads up to 4 kW at 400 V AC (AC-3). It is ideal for controlling small motors, heating circuits, and lighting systems. The contactor's coil operates on 230 V AC at 50/60 Hz, and it includes one normally open auxiliary contact for control and signaling functions. Its compact dimensions (45 mm width, 52 mm depth, 58 mm height) save valuable space in enclosures. The device can be mounted on a standard 35 mm DIN rail or directly with screws, offering flexibility in installation. The IP20 rating means it is suitable for use in dry, indoor environments where protection against solid objects larger than 12 mm is required.

What stands out

• High electrical durability: 1.5 million operations (AC-3) and 10 million mechanical operations for long-term reliability.
• Wide operating temperature range from -25°C to +50°C, suitable for harsh industrial environments.
• Rated insulation voltage of 690 V and impulse withstand voltage of 6 kV for safe operation in high-voltage systems.
• Compact design with DIN rail and screw mounting options for easy installation and space savings.
• Compliance with IEC/EN 60947 ensures international safety and performance standards.

Technical details

• Number of main poles: 3
• Auxiliary contacts: 1 normally open (NO)
• Coil voltage: 230 V AC, 50/60 Hz
• Rated operational current (AC-3, 400 V): 9 A
• Rated operational power (AC-3, 400 V): 4 kW
• Rated insulation voltage (Ui): 690 V
• Rated impulse withstand voltage (Uimp): 6 kV
• Ingress protection: IP20
• Mounting: DIN rail or screw mounting
• Terminal type: Screw terminals
• Color: Black / White
• Operating temperature range: -25°C to +50°C
• Electrical life (AC-3): 1.5 x 10^6 operations
• Mechanical life: 10 x 10^6 operations
• Standard compliance: IEC/EN 60947

Our verdict

The Eaton DILEEM-10 mini contactor is a reliable and compact solution for motor control up to 4 kW. Its high electrical and mechanical durability, combined with a wide temperature range and international compliance, make it a trustworthy choice for industrial applications. The inclusion of an auxiliary contact and flexible mounting options add to its versatility. If you need a space-saving contactor that doesn't compromise on performance, the DILEEM-10 is an excellent pick.
