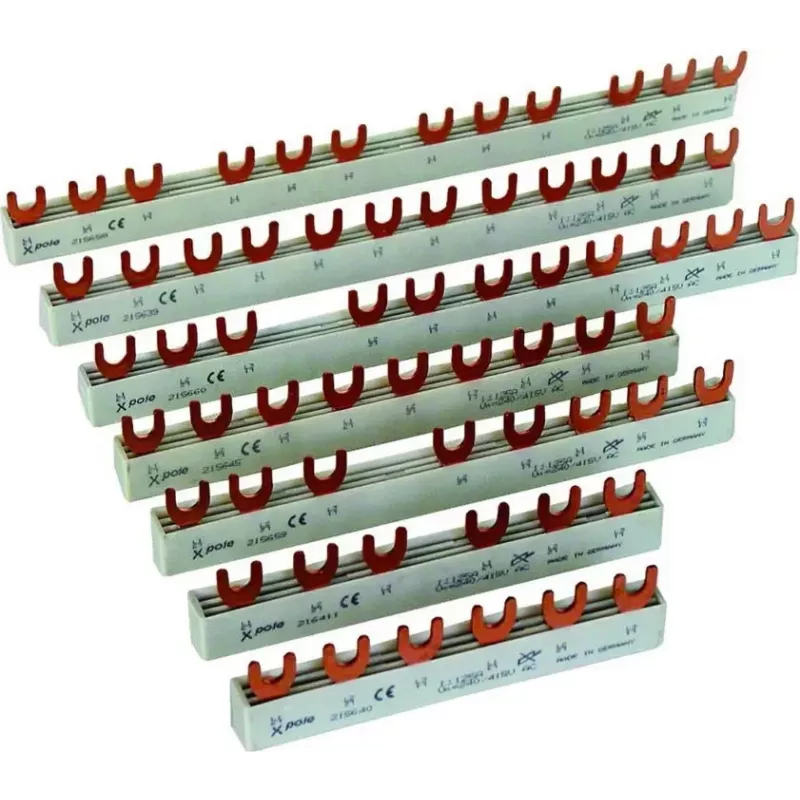

Eaton EVG-16/3PHAS/12MODUL Barra colectora de pines 213,6 mm, trifásica, 16 A, 12 módulos 291472

Pin-type busbar for 3-phase power distribution in modular installations. It connects up to four 3-pole devices across 12 modules with a 16 A rated current. The fully insulated copper conductor ensures safe and reliable power distribution in switchgear and controlgear assemblies.

Advantages

Fully insulated design protects against accidental contact. Pin connection allows quick and secure mounting of compatible modular devices. Copper conductor provides excellent conductivity and long-term reliability.

Suitable for

• Eaton xPole series circuit breakers and similar modular devices
• 3-phase power distribution in distribution boards
• DIN rail mounted installations

Key specifications

• Product type: Pin busbar
• Number of phases: 3
• Rated current: 16 A
• Number of modules: 12
• Length: 213.6 mm
• Cross-section: 10 mm²
• Rated operational voltage: 400 V AC
• Rated insulation voltage: 500 V
• Connection type: Pin
• Pitch: 17.5 mm
• Conductor material: Copper
• Insulation: Fully insulated

Recommendations

Verify compatibility with your specific modular devices before installation. Use in conjunction with Eaton xPole series for optimal performance.
