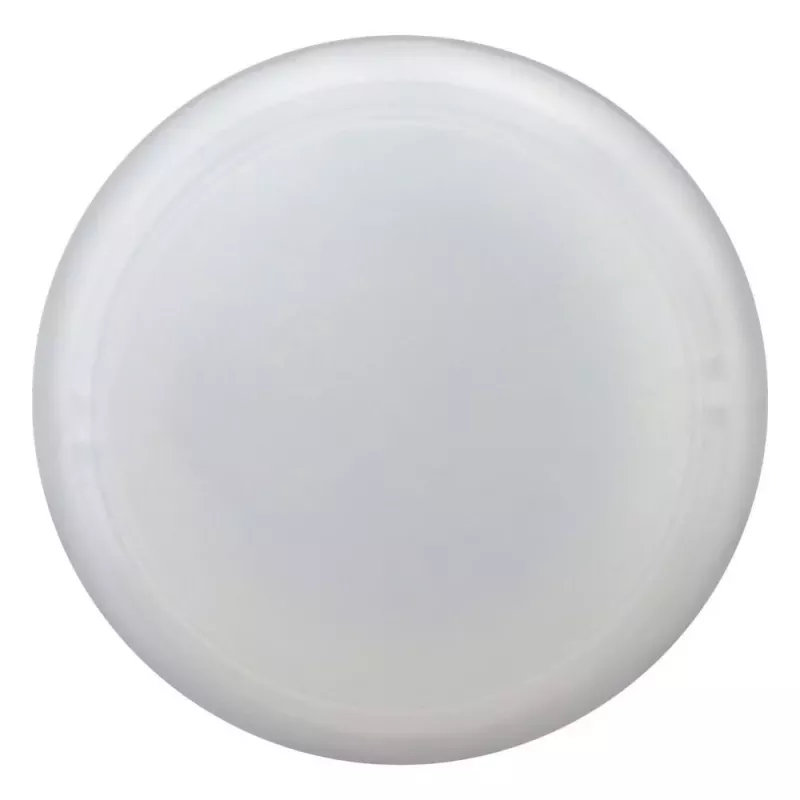

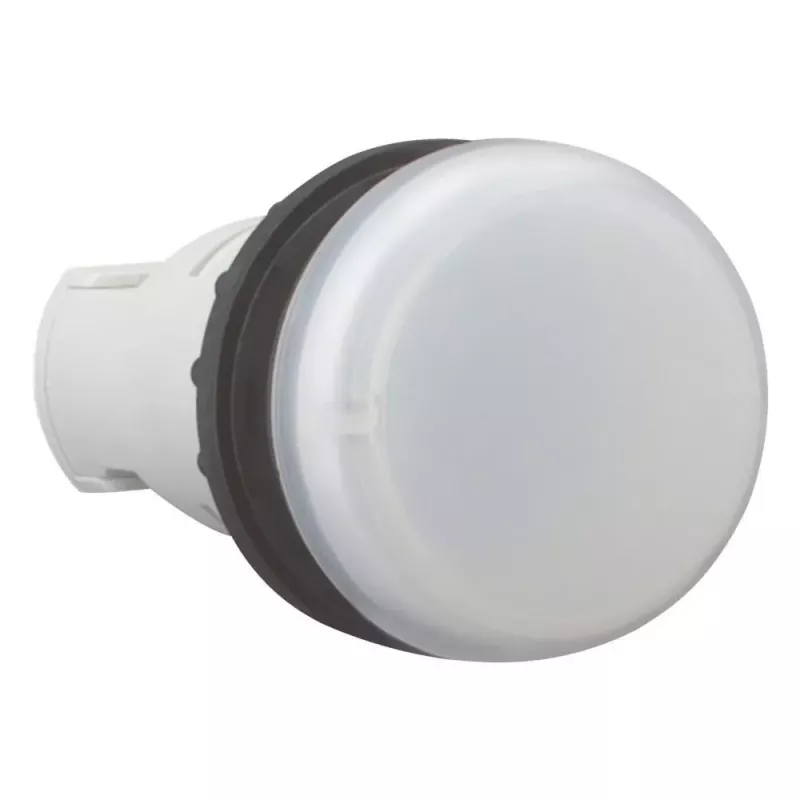

Eaton M22-LC-W elemento indicador LED, blanco, 250 V AC/DC, bornes de tornillo, serie RMQ-Titan M22 216907

In industrial control panels, clear status indication is essential for safe and efficient operation. The Eaton M22-LC-W LED indicator element provides a bright white light to signal machine states, alarms, or process conditions. Designed for rear mounting into Eaton RMQ-Titan M22 control devices, it integrates seamlessly with pushbuttons, selector switches, and pilot lights.

Who is it for

Panel builders, machine OEMs, and maintenance technicians who need a reliable, long-life indicator element for 250 V AC/DC control circuits. It suits applications where white illumination is required for status, warning, or general indication.

Main features

• White LED with a lifespan exceeding 100,000 hours, reducing maintenance and replacement costs.
• Wide supply voltage range of 250 V AC/DC, compatible with common industrial control voltages.
• Screw terminal connection for secure wiring in vibration-prone environments.
• Rear mounting for use with Eaton M22 series control devices, ensuring a clean panel front.
• High-grade plastic housing with IP20 protection for the element itself (front protection depends on the actuator).
• Operating temperature range from -25 to +70 °C, suitable for demanding industrial environments.

Specifications

• Product type: LED indicator element
• Light colour: White
• Supply voltage: 250 V AC/DC
• Lamp type: LED
• Connection type: Screw terminals
• Mounting type: Rear mounting for M22 series
• Series: Eaton RMQ-Titan (M22)
• Rated insulation voltage (Ui): 300 V
• Rated impulse withstand voltage (Uimp): 4 kV
• Protection class (element): IP20
• Operating temperature: -25 to +70 °C
• Storage temperature: -40 to +80 °C
• Current consumption: 5-10 mA
• LED lifetime: >100,000 hours
• Compatibility: Eaton M22 control devices
• Housing material: High-grade plastic

Tips

Ensure the supply voltage matches your control circuit. For outdoor or washdown areas, use a front element with appropriate IP rating. The LED element is not a complete indicator; it must be combined with an M22 front element and contact block if switching is required.
