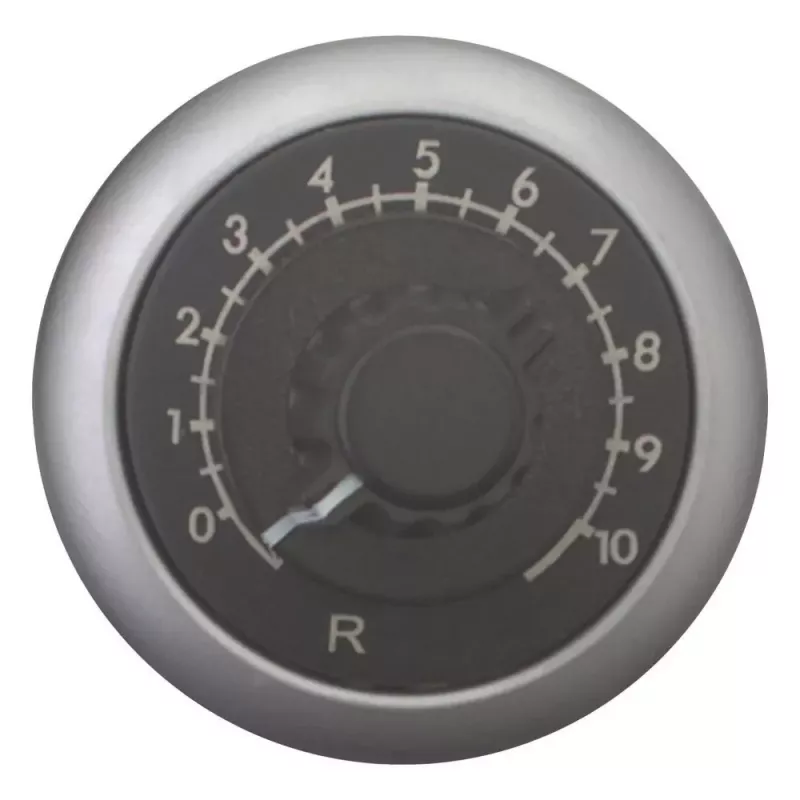

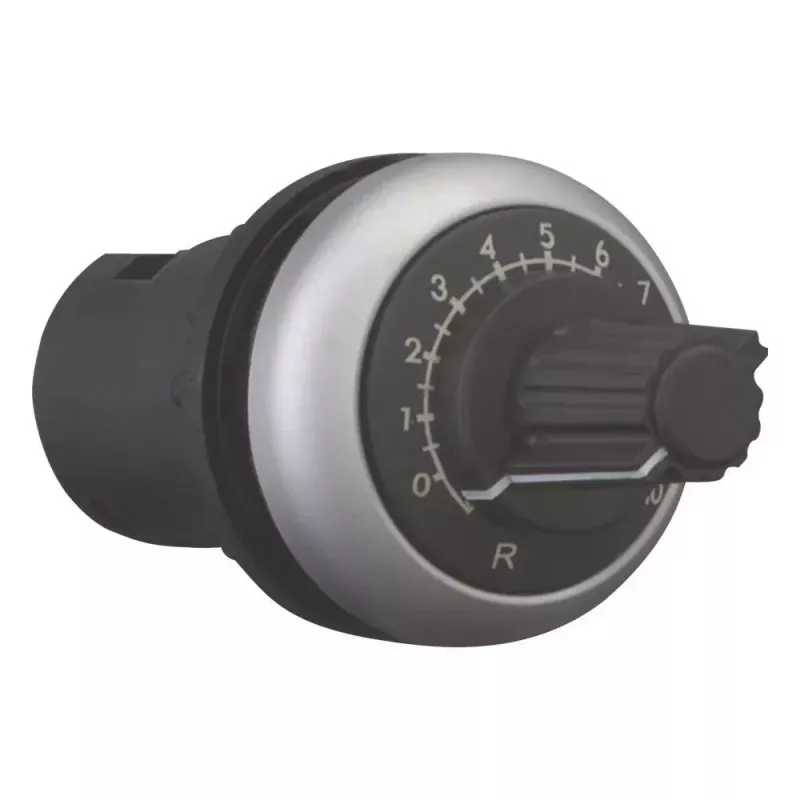

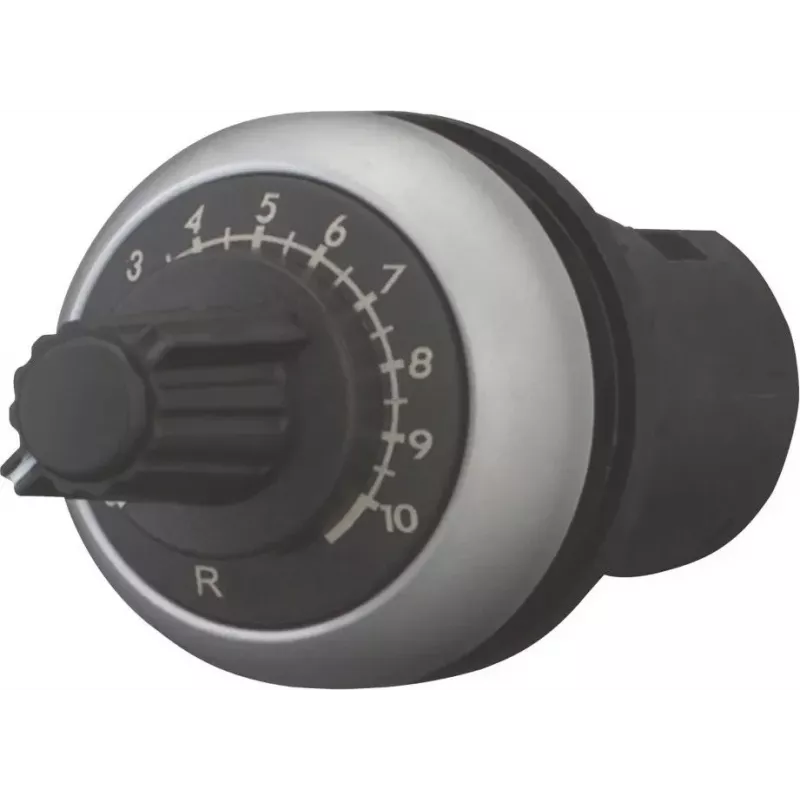

Eaton M22-R470K potenciómetro rotativo, 470 kΩ, 0,5 W, una vuelta, lineal, montaje en panel

With a resistance of 470 kΩ and a power rating of 0.5 W, this Eaton rotary potentiometer element delivers precise analog control in a compact, panel-mount design. Part of the M22 (RMQ-Titan) series, it is engineered for reliable performance in industrial applications.

Overview

The Eaton M22-R470K is a single-gang, linear taper potentiometer with a resistance tolerance of ±20%. It features screw terminals for secure wiring and is designed for rear panel mounting with compatible M22 rotary operators. The mechanical angle is 300°, while the electrical angle is 270°, providing smooth adjustment over a single turn.

What stands out

• High resistance value of 470 kΩ for fine-tuning in control circuits
• Robust construction with a mechanical lifetime of over 100,000 operations
• Wide operating temperature range from -25 °C to +70 °C
• Dielectric strength of 2500 V AC ensures safety in demanding environments

Technical details

• Resistance: 470 kΩ
• Power rating: 0.5 W
• Taper: Linear
• Number of turns: Single turn
• Electrical angle: 270°
• Mechanical angle: 300°
• Termination: Screw terminals
• Mounting: Rear panel mount (for M22 operators)
• Operating temperature: -25 °C to +70 °C
• Insulation resistance: >100 MΩ

Our verdict

A dependable potentiometer element for Eaton M22 control stations, offering precise resistance adjustment and long service life in industrial settings.
