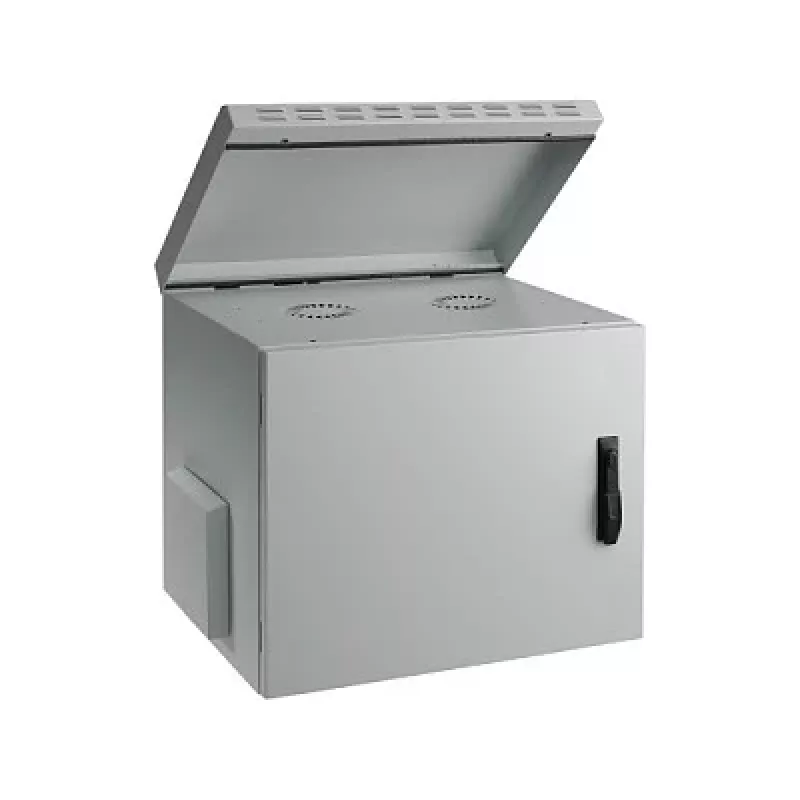

EFB Armario de pared 19" 9U fondo 450mm IP55 premontado RAL7035 gris

When network equipment must be protected from dust, moisture, and unauthorized access in industrial or outdoor environments, a standard rack is not enough. The EFB 691709IP55.1 wall-mount cabinet solves this by providing a sealed, IP55-rated enclosure that keeps your 19-inch devices safe while saving floor space. Pre-assembled and ready to mount, it eliminates complex setup and ensures reliable protection from day one.

Who is it for

This cabinet is ideal for system integrators, IT administrators, and facility managers who need to secure network switches, patch panels, or small servers in factories, workshops, warehouses, or outdoor sheltered areas. It suits anyone requiring a compact, wall-mounted solution with high ingress protection and easy access for maintenance.

Main features

• IP55 protection against dust and water jets, certified to EN 60529.
• 9U of 19-inch rack space with depth-adjustable mounting rails.
• 450 mm external depth accommodates standard network equipment.

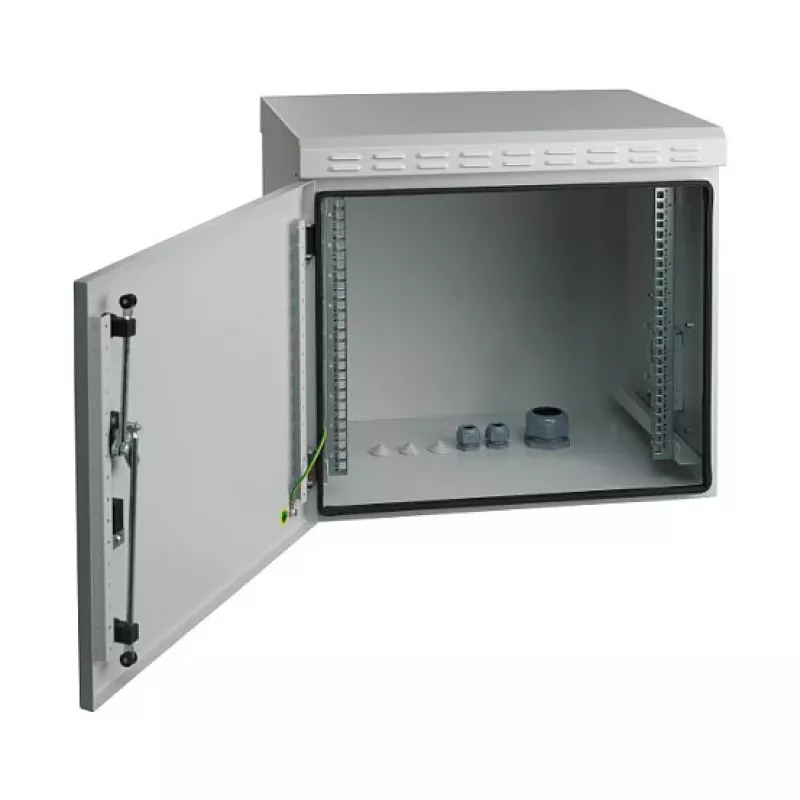

• Solid steel front door with swivel lever handle and security lock.
• Fully pre-assembled welded frame for quick wall installation.
• Sealed cable entries at top and bottom maintain the IP rating.
• Powder-coated light grey (RAL 7035) finish resists corrosion and wear.
• Includes grounding kit for safe electrical bonding.

Specifications

• Rack units: 9U
• Rack width: 19 inch (48.26 cm)
• External dimensions (W x H x D): 600 x 500 x 450 mm
• Material: Sheet steel
• Color: Light grey, RAL 7035
• Door: Single front door, solid steel
• Lock: Swivel lever handle with security lock
• Cable entry: Top and bottom, sealed
• Mounting type: Wall-mounted
• Max static load capacity: 60 kg
• Side panels: Fixed
• Grounding: Grounding kit included
• Finish: Powder-coated
• Standards compliance: IEC 60297-3-100, EN 60529

Tips

Before mounting, ensure the wall can support the cabinet's weight plus equipment. Use appropriate anchors for the wall material. For optimal cable management, plan cable routing through the sealed entries and consider using brush strips or grommets to maintain the IP rating. Periodically inspect the door seal and lock for continued protection.
