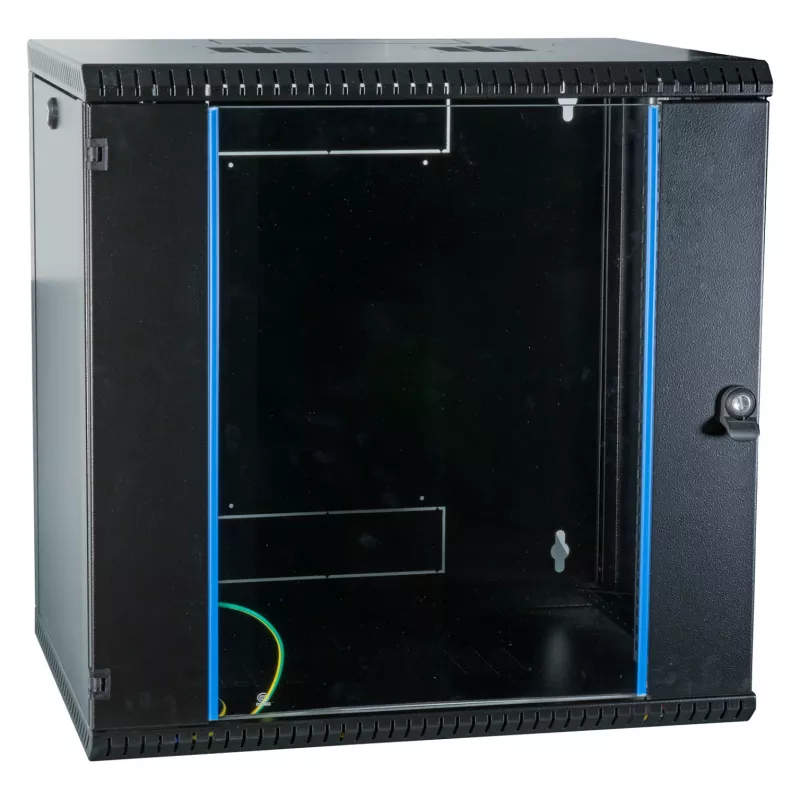

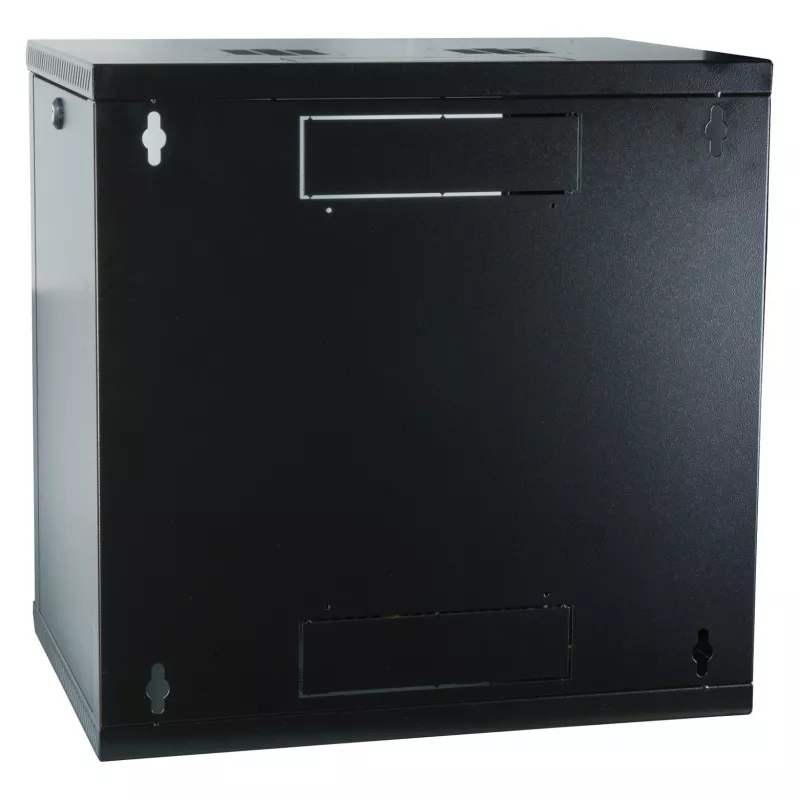

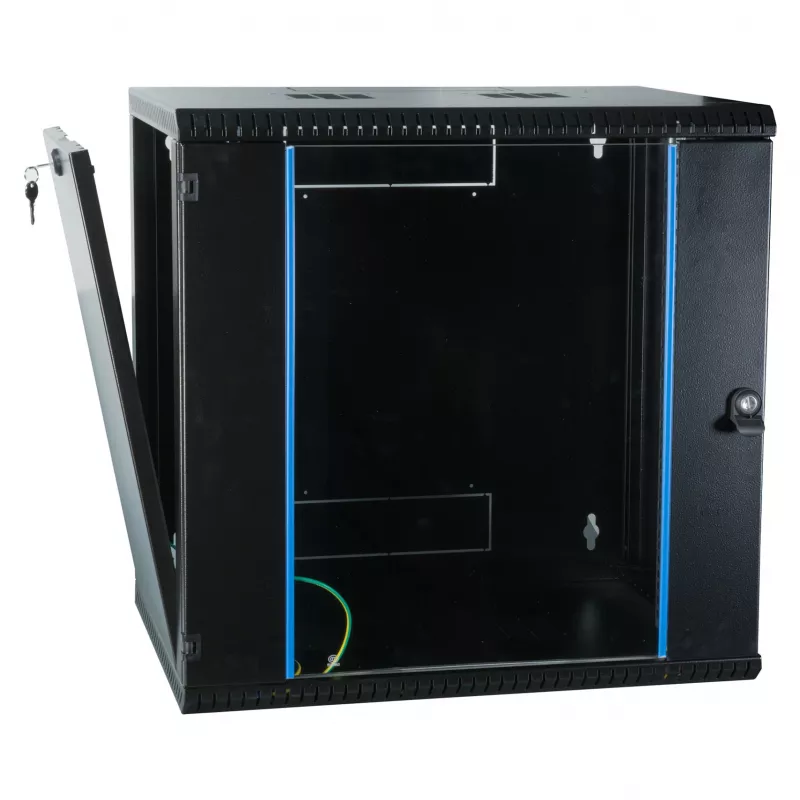

EFB Armario de pared de 19" 12U, fijo, de una pieza, RAL 9005, profundidad 600 mm (691712VTS.60)

Organizing network equipment in limited space can be a challenge, especially when floor space is at a premium. This 19" wall-mount cabinet provides a secure, space-saving enclosure for 12U of rack-mount devices, keeping them protected and easily accessible.

Who is it for

IT administrators and installers who need to mount network switches, patch panels, and other 19" equipment on a wall in offices, retail spaces, or industrial environments where floor-standing racks are impractical.

Main features

• 12U height with 19" rack standard for standard equipment
• Single-section, fixed construction for sturdy wall mounting
• Jet black (RAL 9005) steel sheet body with tempered safety glass front door
• 2-point locking system on front door for security
• Top and bottom cable entry with brush strip for clean cable management
• Depth-adjustable 19" profile rails for flexible equipment mounting
• Passive ventilation, prepared for fan unit installation
• Grounding points included for electrical safety

Specifications

• Rack capacity: 12U
• External dimensions: 600 mm width, 600 mm depth, 635 mm height
• Material: Steel sheet
• Colour: Jet black (RAL 9005)
• Front door: Tempered safety glass, 2-point locking
• Side panels: Fixed
• Load capacity: 60 kg
• Protection class: IP20
• Cable entry: Top and bottom with brush strip
• Mounting rails: 19" profile rails, depth adjustable
• Ventilation: Passive, prepared for fan unit
• Grounding: Grounding points included

Tips

Ensure the wall can support the cabinet's weight plus the installed equipment. Use appropriate anchors and consider the depth of your devices when adjusting the mounting rails.
