EFB Armario de servidor 19 pulgadas PRO 47U 600x1200 mm, puerta frontal perforada 1 pieza, puerta trasera 2 piezas, RAL 7035

For high-density data centers, the EFB PRO-4762GR.P1P2 stands apart with its 47U capacity and robust 1000 kg static load rating, yet remains surprisingly serviceable thanks to a single-piece perforated front door and a two-piece split rear door that both swing open a full 180°. The light grey RAL 7035 powder-coated steel frame resists corrosion and blends into professional environments, while removable side panels and tool-less door removal cut installation time dramatically.

Highlights

• 47U of 19-inch rack space for servers, switches, and storage
• Perforated steel doors (front single, rear split) enable passive airflow
• Lockable doors and side panels secure critical hardware
• Depth-adjustable mounting rails accommodate equipment up to 1200 mm deep
• Brush strip cable entries top and bottom keep cabling tidy
• Includes grounding kit, leveling feet, and all mounting hardware

In daily use

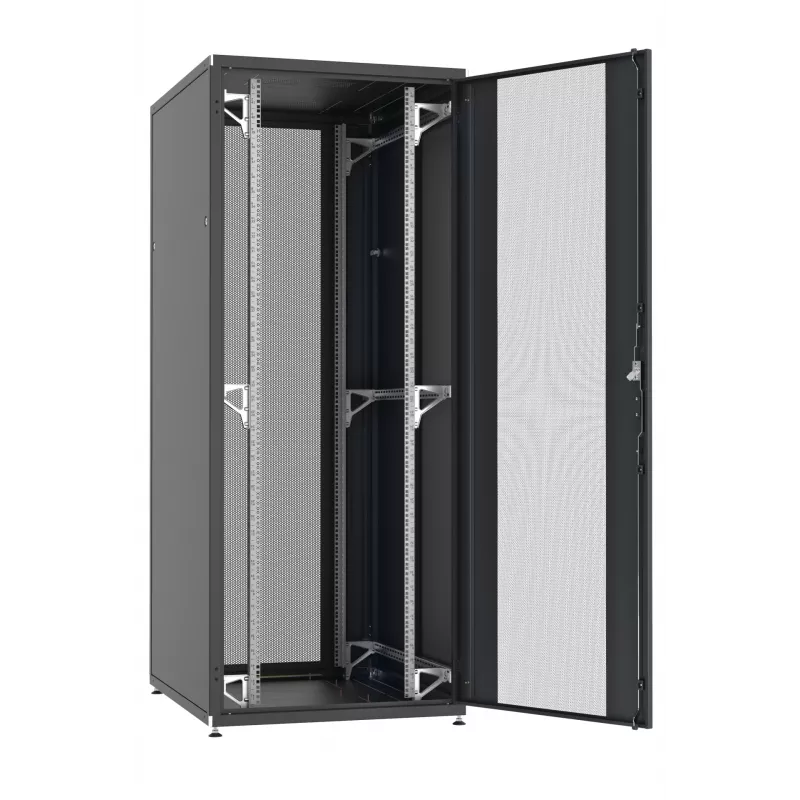

Technicians appreciate the 180° door swing and removable side panels, which allow unobstructed access to every corner of the cabinet during installation or maintenance. The brush strips prevent dust ingress while letting cables pass cleanly. Passive ventilation through the perforated doors eliminates the need for forced airflow in most environments, reducing energy costs. The IP20 rating guards against accidental contact with live parts and solid objects over 12 mm, making it suitable for controlled indoor spaces.

Full specifications

• Rack capacity: 47U
• External dimensions (W x D x H): 600 x 1200 x 2250 mm
• Material: Steel, powder-coated
• Colour: Light grey RAL 7035
• Front door: Single-piece, perforated, lockable, 180° opening
• Rear door: Two-piece split, perforated, lockable, 180° opening
• Side panels: Removable, lockable
• Static load capacity: 1000 kg
• Protection class: IP20
• Cable entry: Top and bottom with brush strips
• Mounting rails: Front and rear, depth-adjustable
• Leveling feet: Included
• Grounding kit: Included
• Ventilation: Passive via perforated doors

Final note

Built to handle dense enterprise workloads, the PRO-4762GR.P1P2 combines heavy-duty construction with practical access features, making it a dependable foundation for any 19-inch infrastructure.
