EFB Conector RJ45 STP Cat.6A montaje en campo bayoneta

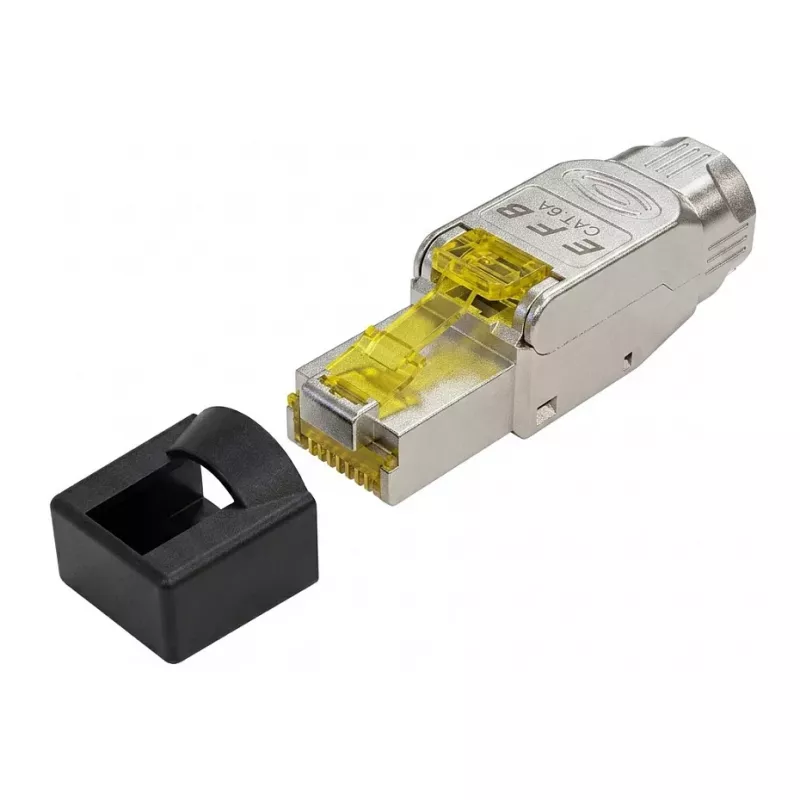

The EFB RJ45 Plug STP Cat.6A Field-Terminable Bayonet (89061.1) is a high-performance, shielded RJ45 connector designed for reliable data transmission in demanding network environments. This field-terminable plug supports Cat.6A (Class EA) performance and features a robust bayonet locking mechanism for secure connections.

Advantages

Tool-less field termination saves installation time and reduces errors. The bayonet locking mechanism ensures a vibration-proof connection, ideal for industrial applications. Gold-plated contacts (50µ) guarantee excellent conductivity and corrosion resistance. Supports PoE, PoE+, and 4PPoE (IEEE 802.3at/af/bt) for power over Ethernet.

Suitable for

• Data networks and Ethernet applications requiring Cat.6A performance
• Industrial environments where secure, vibration-resistant connections are needed
• Field installation and repair of network cables
• Structured cabling systems in offices, data centers, and factories

Key specifications

• Connector Type: RJ45 Plug
• Performance Category: Cat.6A (Class EA)
• Shielding: STP (Shielded Twisted Pair)
• Termination Method: Field-Terminable / Tool-less
• Wiring Scheme: T568A / T568B
• Conductor Compatibility: Solid and Stranded, AWG 22-26
• Outer Cable Diameter: 5.0 - 9.0 mm
• Contact Plating: Gold-plated (50µ)
• Housing Material: Zinc Die-Cast, Nickel-plated
• Locking Mechanism: Bayonet
• Operating Temperature: -40°C to +70°C
• Standards: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2

Recommendations

For optimal performance, use with Cat.6A STP cable and ensure proper grounding of the shield. The bayonet lock provides extra security in high-vibration environments.
