EFB Electronics Estante fijo 19 pulgadas 1U, profundidad de montaje 750-850 mm, capacidad de carga 120 kg, profundidad de armario 1000 mm, RAL 7035 gris claro

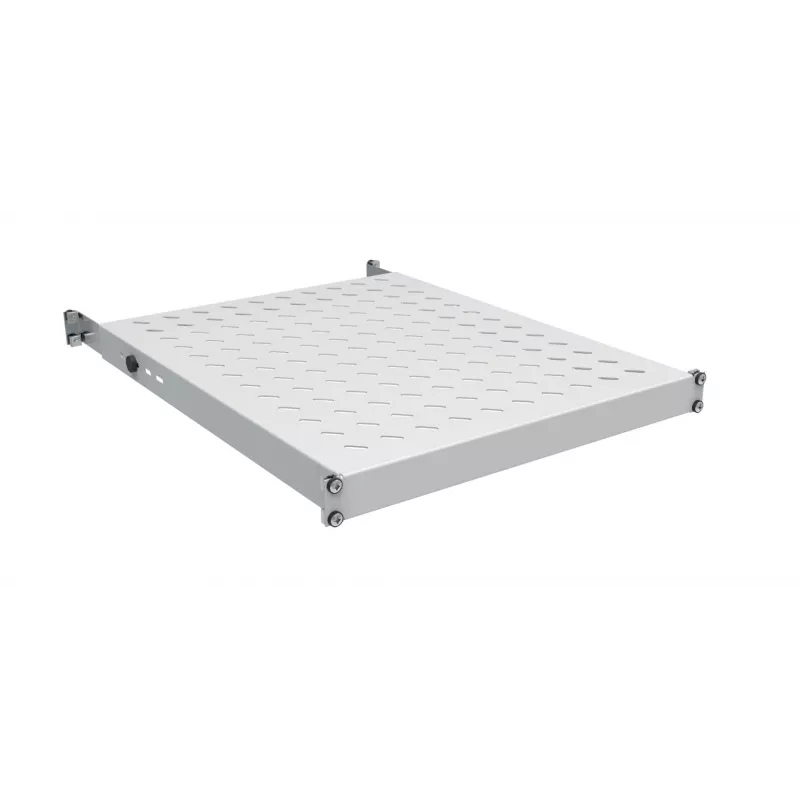

The EFB Electronics 691651FGR.10 is a robust 19-inch 1U fixed shelf designed for professional server and network cabinets. With a load capacity of 120 kg and an installation depth range of 750-850 mm, it provides reliable support for non-rackmount equipment such as UPS units, monitors, and keyboards. The shelf is finished in RAL 7035 light grey powder coating, ensuring durability and a clean appearance.

Advantages

High load capacity of 120 kg allows for heavy equipment. Fixed design ensures stability. Adjustable installation depth (750-850 mm) offers flexibility for various cabinet depths. Powder-coated steel construction provides long-lasting durability.

Suitable for

• Supporting UPS systems in server cabinets
• Mounting monitors and keyboards in network racks
• Holding non-rackmount equipment in 19-inch enclosures

Key specifications

• Rack Size: 19-inch
• Rack Units: 1U
• Shelf Type: Fixed
• Load Capacity: 120 kg
• Shelf Depth: 1000 mm
• Installation Depth Range: 750 - 850 mm
• Colour: RAL 7035 (Light Grey)
• Material: Steel
• Mounting Standard: EIA-310-D
• Finish: Powder-coated
• Design: Solid (Non-ventilated)
• Compatibility: 19-inch Server and Network Cabinets
• Application: Supporting non-rackmount equipment, UPS, monitors, keyboards
• Product Series: ST 1000

Recommendations

Ensure your cabinet depth is at least 1000 mm to accommodate the shelf. For optimal weight distribution, evenly load equipment on the shelf.
