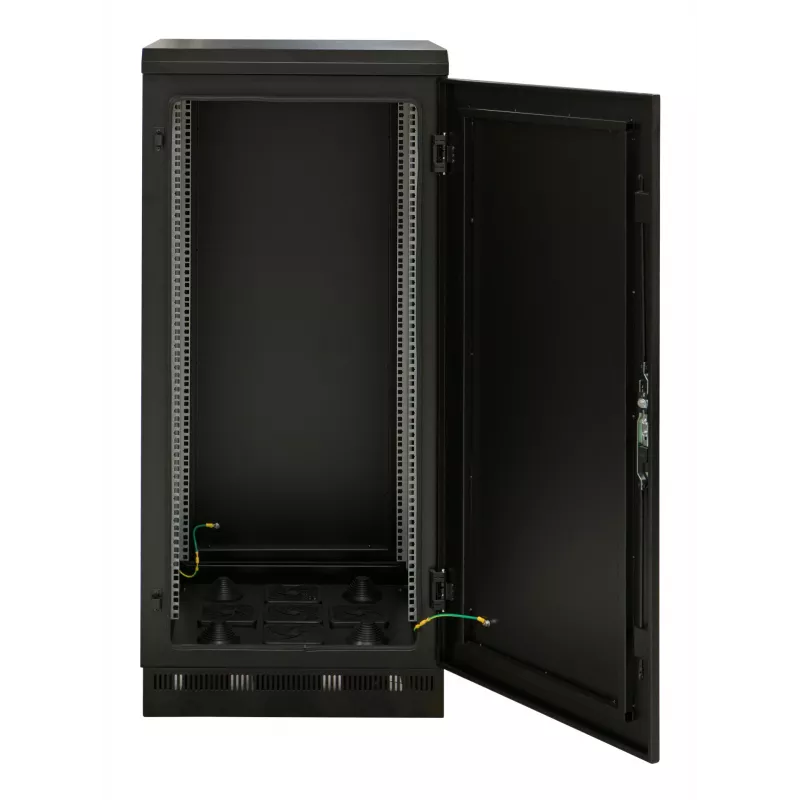

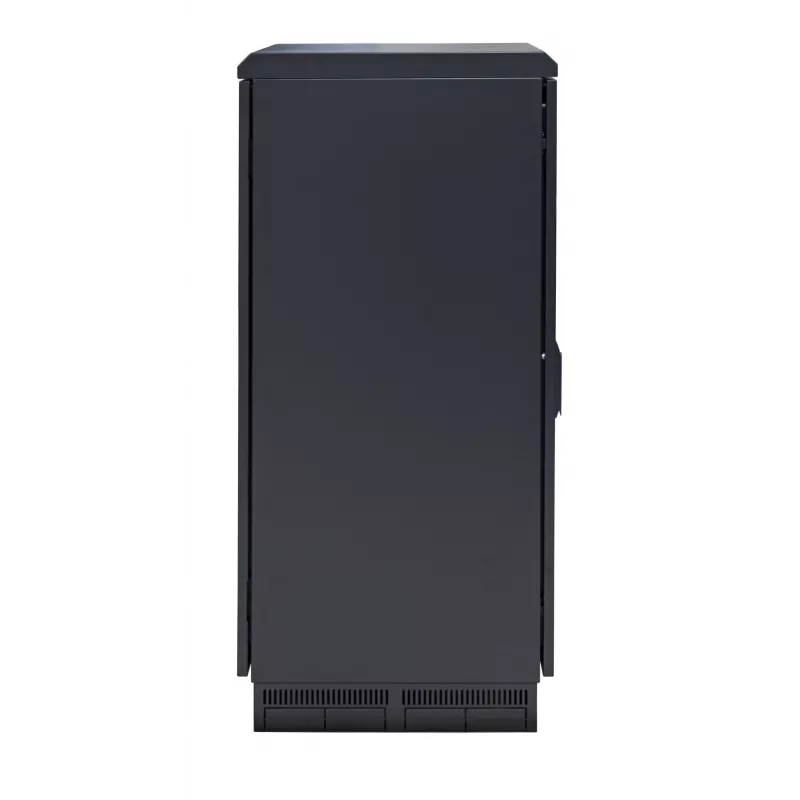

Armario de red de 19" 24U 800x800, IP55, con zócalo premontado, RAL9005 692724IP55V2.TS

Protect sensitive network equipment in dusty or wet environments with this IP55-rated 19" network cabinet. The sealed construction and pre-assembled plinth keep out water jets and dust, ensuring reliable operation in challenging conditions.

Who is it for

IT administrators and facility managers who need a secure, weather-resistant enclosure for servers, switches, and patch panels in industrial or outdoor locations.

Main features

• IP55 protection against dust and water jets
• 24U of 19-inch rack space
• Pre-assembled 100 mm plinth for easy installation
• Lockable steel front door and removable side/rear panels
• Static load capacity of 800 kg

Specifications

• Rack standard: 19-inch
• Rack units: 24U
• External dimensions (W x D x H): 800 x 800 x 1260 mm
• Colour: RAL 9005 (Jet Black)
• Material: Steel
• Front door: Single-leaf steel, swivel lever handle with profile half cylinder
• Rear panel: Solid steel, removable, lockable
• Side panels: Solid steel, removable, lockable
• Mounting rails: 4x 19-inch, depth-adjustable

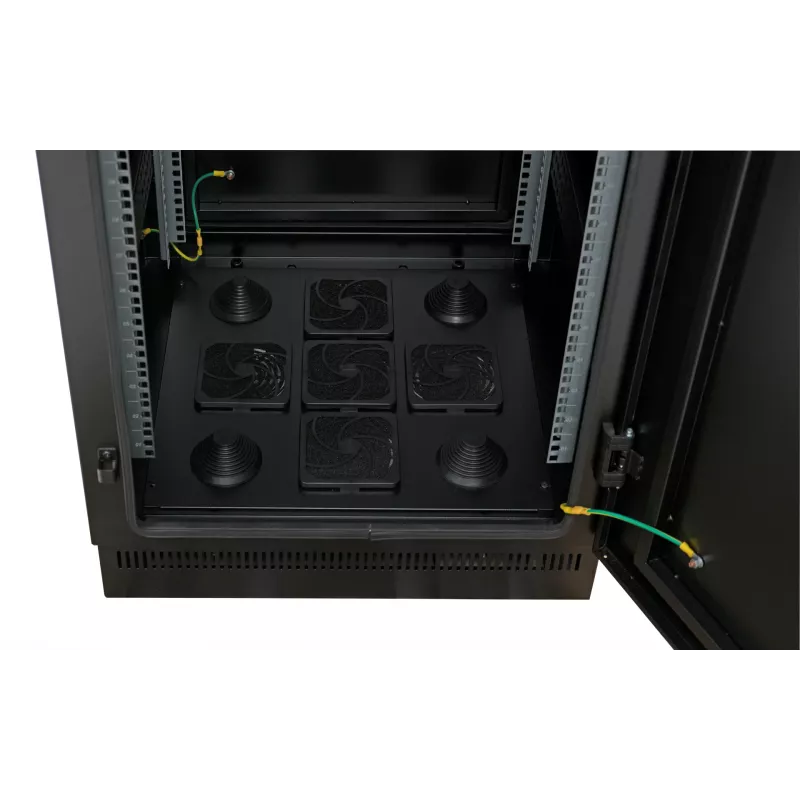

• Cable entry: Top and bottom, sealed brush strips
• Earthing: Earthing kit included
• Ventilation: Passive
• Construction: Welded frame

Tips

Use the sealed brush strips for cable entry to maintain the IP55 rating. The pre-assembled plinth simplifies floor mounting and provides clearance for bottom cable routing.
