EFB-Elektronik ECOFIBER Latiguillo Dúplex SC-SC OM1 62,5/125 µm LSZH 3,0 mm 1 m Naranja

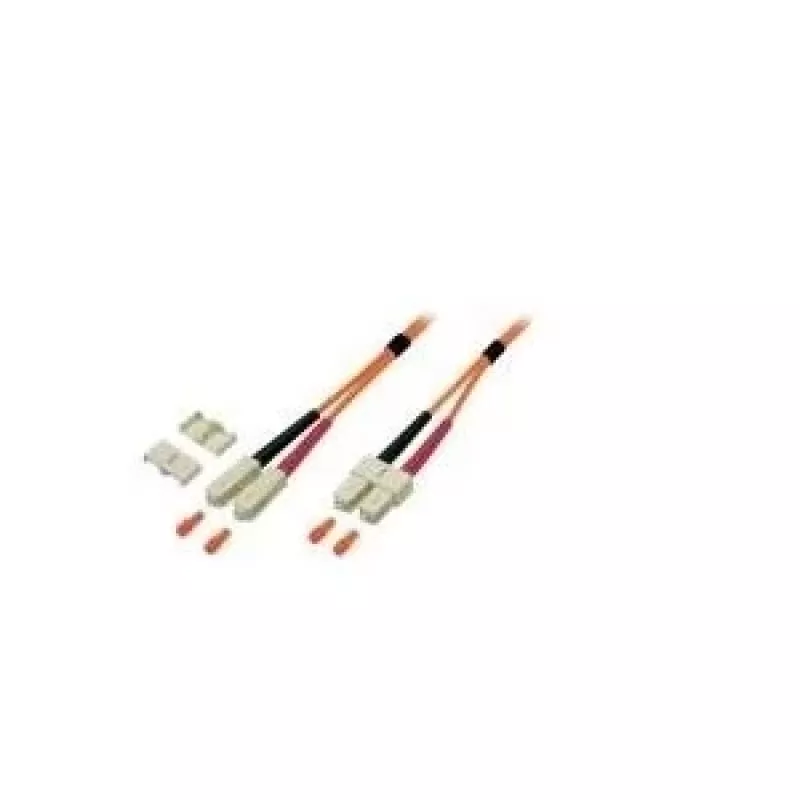

The EFB-Elektronik ECOFIBER Duplex Jumper SC-SC is a high-quality fiber optic patch cable designed for reliable multimode network connections. With OM1 grade fiber, 62.5/125µm core/cladding, and duplex SC connectors, this cable ensures efficient data transmission for short to medium distances. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in enclosed spaces, while the 3.0mm diameter and orange color offer easy identification and flexibility.

Advantages

This patch cable delivers low insertion loss and high return loss, ensuring minimal signal degradation. The LSZH jacket reduces toxic smoke and fumes in case of fire, making it ideal for use in offices, data centers, and public areas. The duplex configuration supports bidirectional communication, and the 1-meter length is perfect for patch panel to equipment connections.

Suitable for

• Fiber optic network installations in enterprise environments
• Connecting switches, routers, and servers in data centers
• FTTH (Fiber to the Home) and LAN applications
• Any application requiring reliable multimode fiber connectivity

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Fiber Mode: Multimode
• Fiber Grade: OM1
• Core Diameter: 62.5 µm
• Cladding Diameter: 125 µm
• Connector A: SC
• Connector B: SC
• Connector Configuration: Duplex
• Cable Length: 1 meter
• Cable Diameter: 3.0 mm
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Orange
• Attenuation at 850nm: < 3.5 dB/km
• Attenuation at 1300nm: < 1.5 dB/km
• Insertion Loss (typical): < 0.3 dB
• Return Loss (typical): > 20 dB
• Operating Temperature: -20°C to +70°C
• Standards Compliance: IEC 60793, TIA/EIA-568-C.3, RoHS

Recommendations

For optimal performance, ensure clean and properly terminated connectors. This cable is compatible with all standard SC duplex ports. Store in a clean, dry environment to maintain signal quality.
