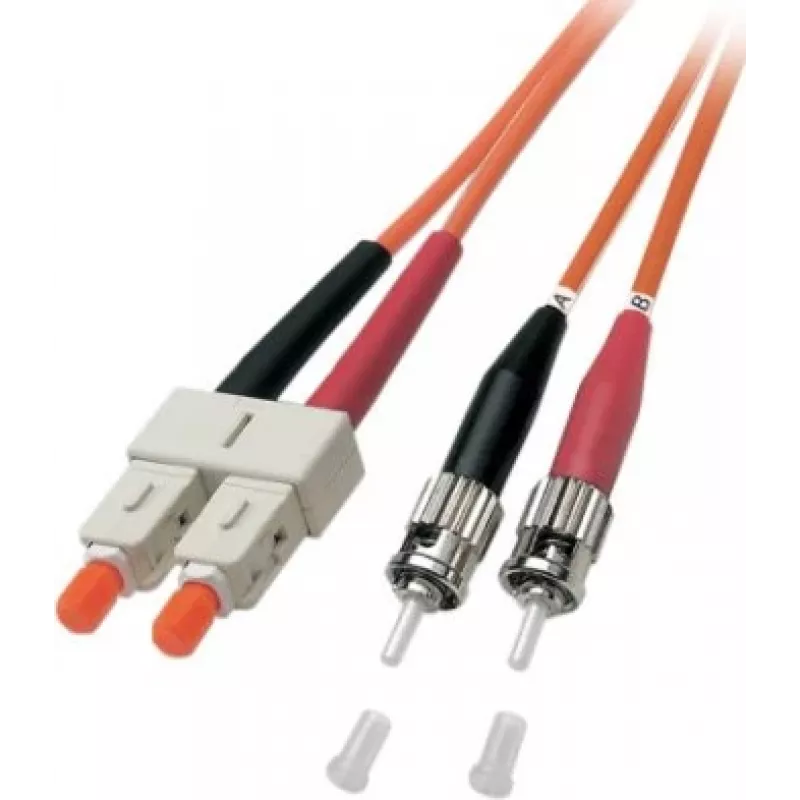

EFB-Elektronik ECOFIBER Latiguillo Dúplex SC-ST 62,5/125 µm OM1 LSZH Naranja 3,0 mm 3 m

The EFB-Elektronik ECOFIBER Duplex Jumper SC-ST is a high-quality fiber optic patch cable designed for reliable data transmission in multimode networks. With OM1 performance and LSZH jacket, it ensures safety and efficiency in indoor installations.

Advantages

Low smoke zero halogen (LSZH) jacket reduces toxic emissions in case of fire, making it ideal for confined spaces. Duplex design supports bidirectional communication, and the SC to ST connectors provide versatile connectivity.

Suitable for

• Data centers
• Telecommunications rooms
• Local area networks (LANs)
• Fiber-to-the-desk applications

Key specifications

• Fiber type: Multimode OM1
• Core/Cladding: 62.5/125 µm
• Connectors: SC to ST, PC polish
• Cable diameter: 3.0 mm
• Length: 3 m
• Jacket: LSZH, orange
• Insertion loss: < 0.3 dB typical
• Return loss: > 30 dB typical
• Attenuation: 3.0 dB/km @ 850 nm, 1.0 dB/km @ 1300 nm
• Operating temperature: -20°C to +70°C
• Compliance: RoHS, REACH

Recommendations

For optimal performance, use with OM1-rated transceivers and ensure proper handling of connectors to maintain low insertion loss.
