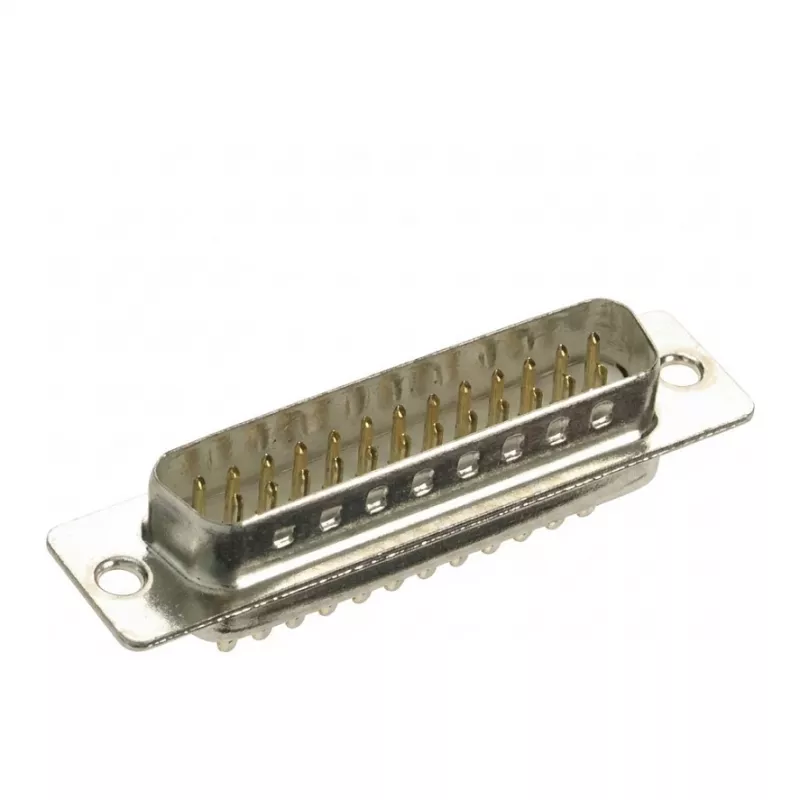

EFB-Elektronik Conector macho D-Sub de soldadura 25 polos EDS 25 LL /Z

The EFB-Elektronik D-Sub solder connector 25-pin male (EDS 25 LL /Z) is a high-quality connector designed for reliable data, serial, and parallel communication applications. Manufactured by EFB-Elektronik, this connector features a robust design with gold-plated contacts for excellent conductivity and corrosion resistance.

Advantages

Gold flash over nickel contact plating ensures low contact resistance and long-term reliability. The solder cup termination allows for secure and easy cable assembly. The nickel-plated steel shell provides durability and effective shielding against electromagnetic interference.

Suitable for

• Data communication systems
• Serial and parallel interfaces
• Industrial control and automation
• Computer peripherals

Key specifications

• Connector Type: D-Sub
• Number of Positions: 25
• Gender: Male (Plug)
• Termination Style: Solder Cup
• Mounting Type: Cable Mount
• Contact Plating: Gold Flash over Nickel
• Insulator Material: PBT (Polybutylene Terephthalate)
• Shell Material: Steel, Nickel Plated
• Current Rating (per contact): 5 A
• Voltage Rating: 250 V
• Operating Temperature Range: -55°C to +105°C
• Contact Material: Copper Alloy
• Flammability Rating: UL94 V-0
• Series: EDS Series
• RoHS Compliance: Yes

Recommendations

This connector is ideal for custom cable assemblies and repair of D-Sub connections. Ensure proper soldering technique for optimal performance.
