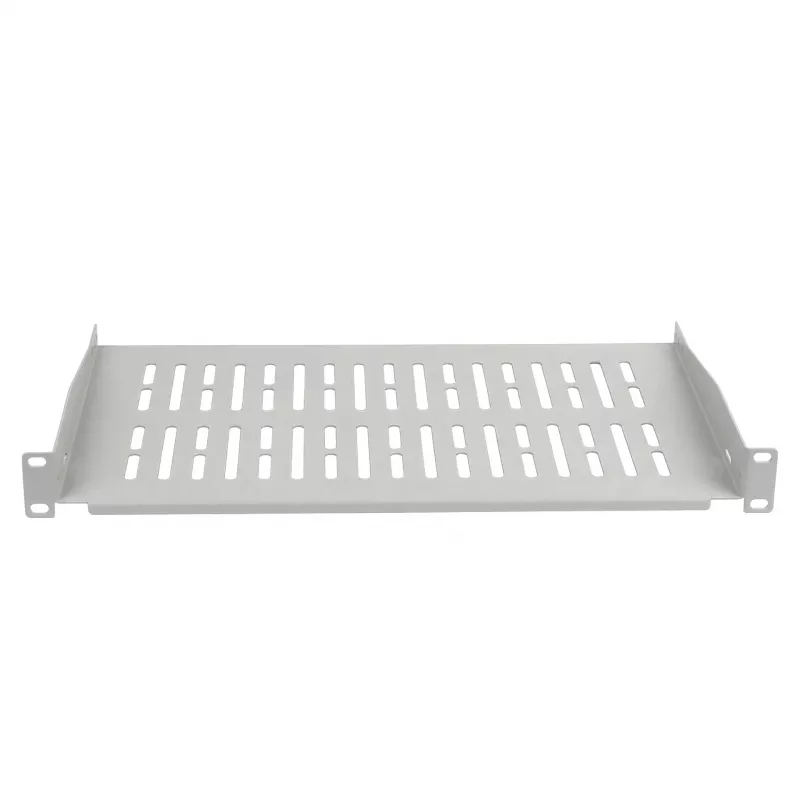

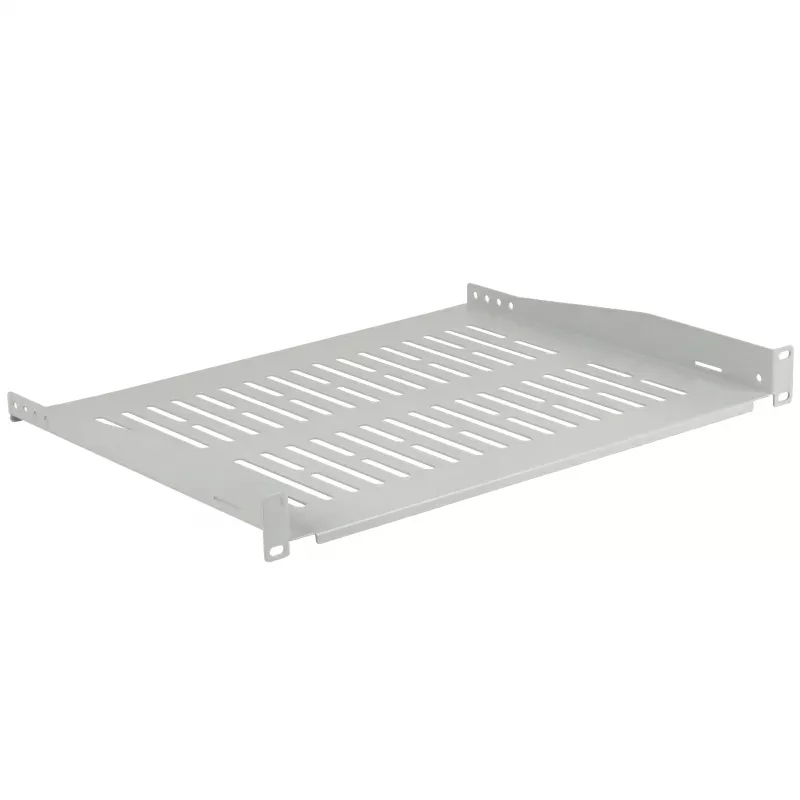

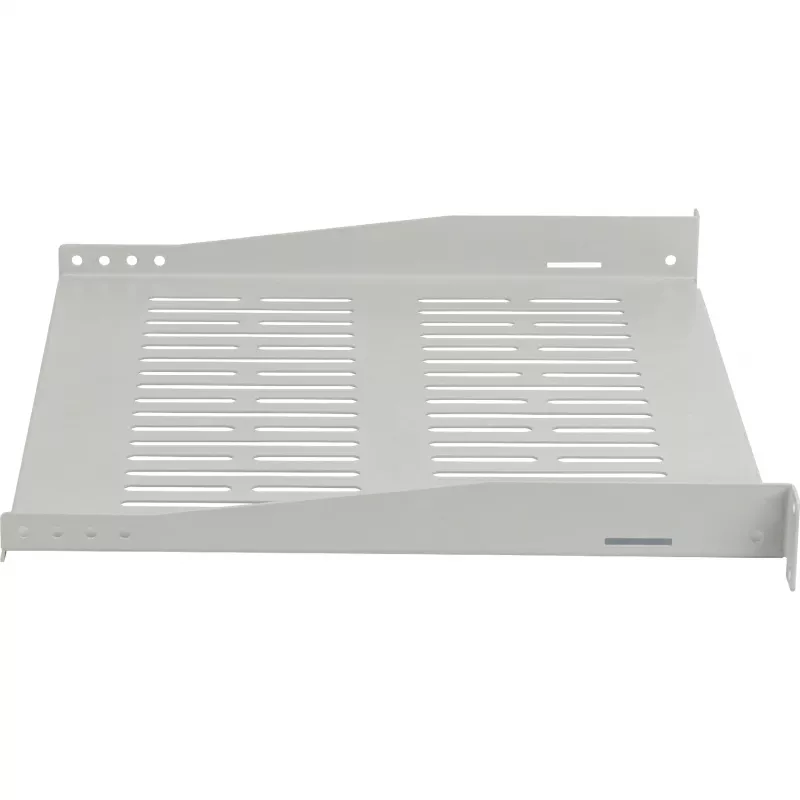

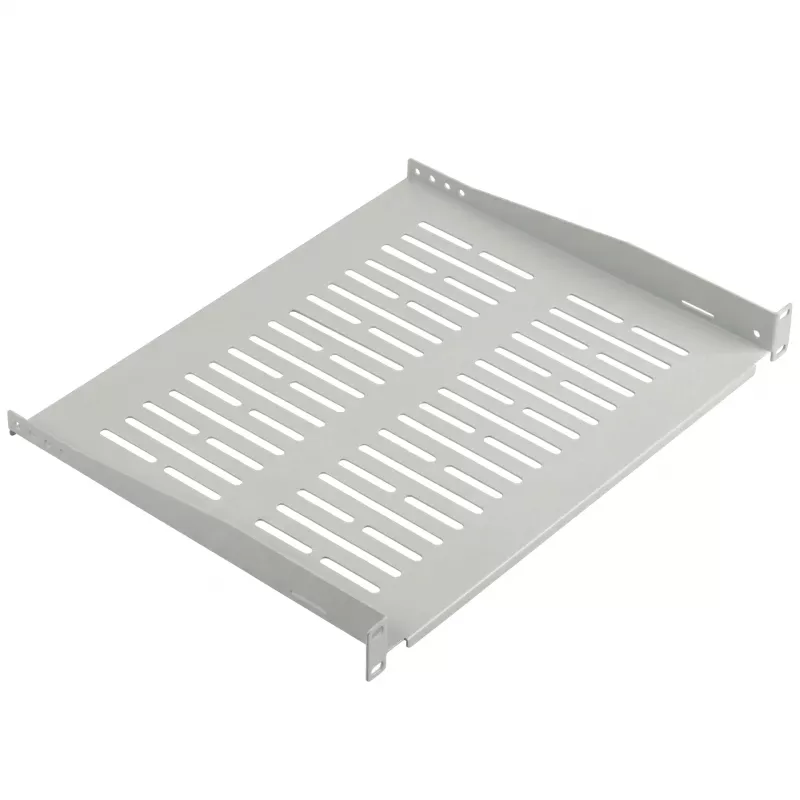

EFB Elektronik estante fijo 19 inch 1U, 350 mm de profundidad, 10 kg de carga, gris claro RAL 7035

Server rooms and network cabinets often lack a stable, space-efficient platform for non-rackmount equipment. This EFB Elektronik 1U fixed shelf solves that by providing a sturdy, 350 mm deep surface that mounts directly into standard 19-inch racks. It supports up to 10 kg, making it ideal for small switches, modems, or test instruments that would otherwise sit precariously on top of other gear.

Who is it for

IT technicians, network administrators, and system integrators who need to install non-rackmount devices in a 19-inch server rack or network enclosure. It suits small offices, data centers, and industrial control rooms where space is at a premium and equipment must be securely mounted.

Main features

• Fits standard 19-inch racks, occupying exactly 1U of vertical space.
• 350 mm usable depth accommodates compact devices and accessories.
• Robust steel construction with powder-coated finish in light grey RAL 7035.
• Supports up to 10 kg evenly distributed load.
• Front mounting design for easy installation; includes mounting hardware.
• Solid, non-ventilated surface protects equipment from dust and debris.

Specifications

• Rack size compatibility: 19 inch
• Height units: 1U
• Shelf type: Fixed shelf
• Mounting type: Front mounting
• Depth: 350 mm
• Load capacity: 10 kg
• Colour: Light grey RAL 7035
• Material: Steel
• Surface finish: Powder-coated
• Ventilation: Non-ventilated (solid)
• Mounting points: 4-point mounting
• Usable depth: 350 mm
• Width (mounting): 482.6 mm
• Height (mounting): 44.45 mm
• Application: Server cabinets, network racks

Tips

Ensure the rack rails are properly aligned before installation. Use the included screws and cage nuts for a secure fit. For heavier equipment, consider distributing the load evenly across the shelf surface.
