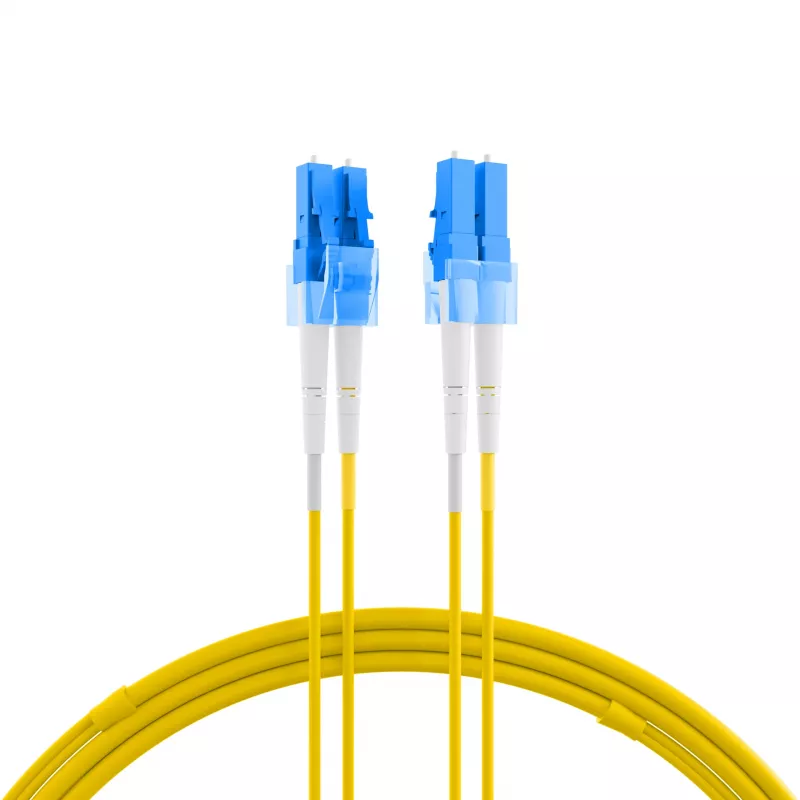

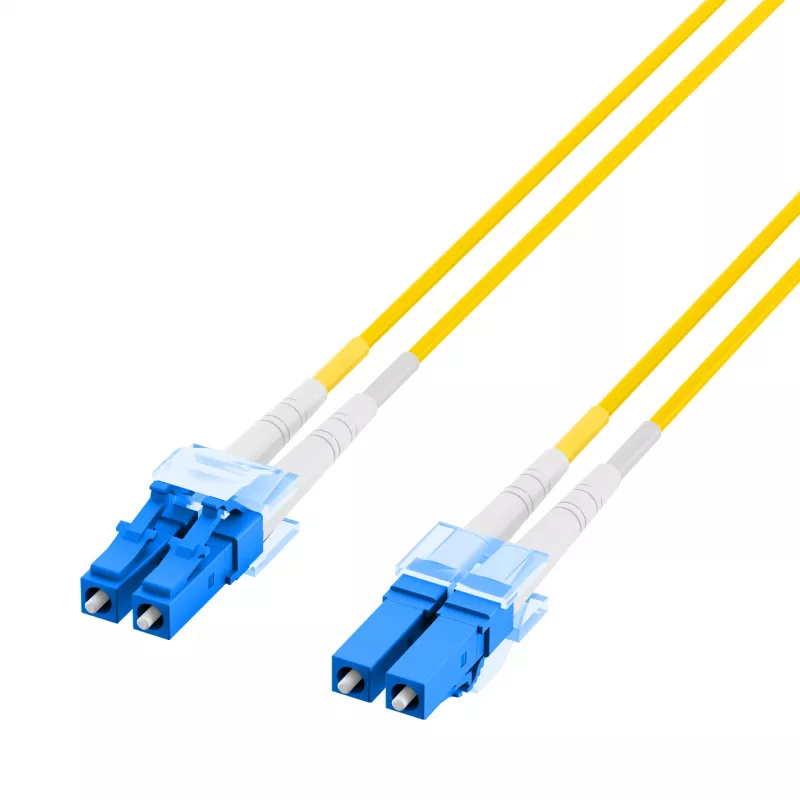

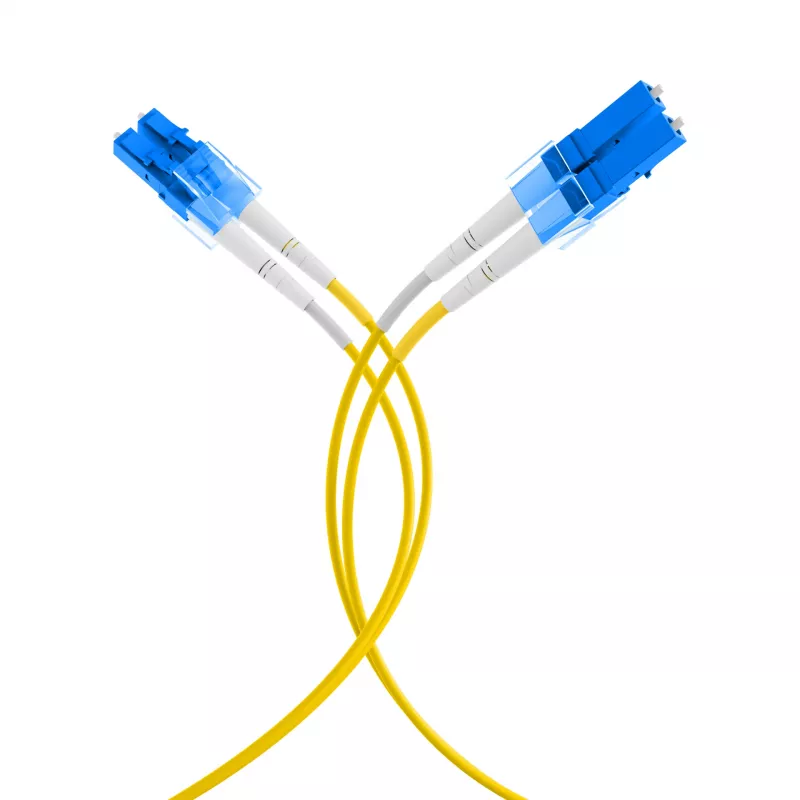

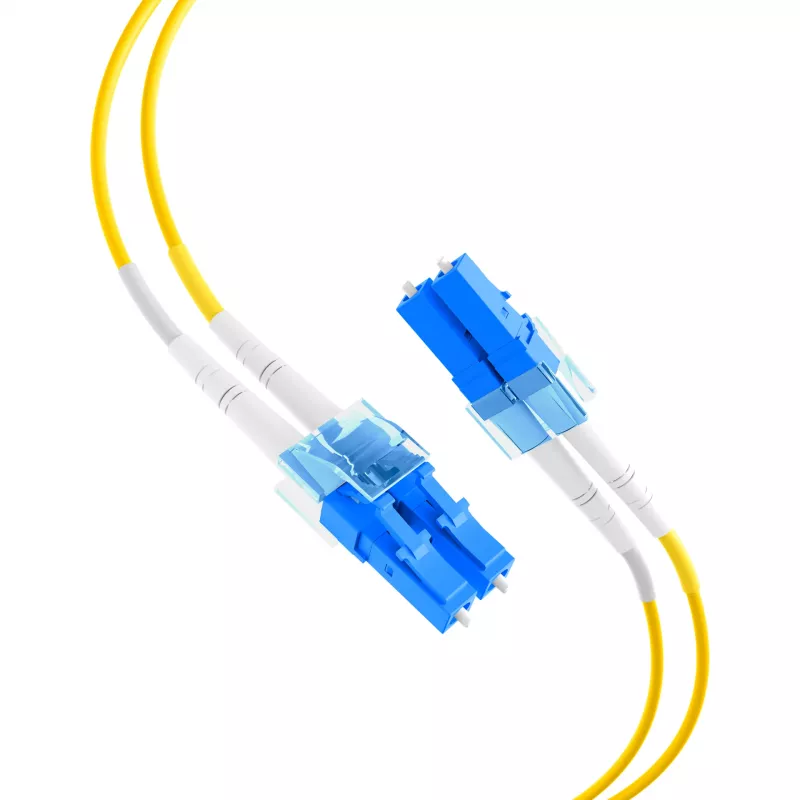

EFB Elektronik IPL-DF-LCULCU-2-0500 - 5 m - OS2 - LC - LC

The EFB Elektronik IPL-DF-LCULCU-2-0500 is a high-quality duplex fiber optic patch cable designed for reliable single-mode data transmission. With a length of 5 meters and OS2 fiber class, it ensures low attenuation and high return loss, making it ideal for demanding network environments.

Advantages

This patch cable offers exceptional performance with typical insertion loss ≤0.25 dB and return loss ≥50 dB. The LSZH jacket provides safety in case of fire, emitting low smoke and no halogen. Its duplex configuration supports bidirectional communication, and the yellow jacket ensures easy identification.

Suitable for

• Data center interconnects
• Telecommunications networks
• Fiber-to-the-home (FTTH) installations
• Local area networks (LANs) requiring single-mode fiber

Key specifications

• Fiber Type: Single-mode OS2
• Connectors: LC/UPC to LC/UPC
• Length: 5 meters
• Number of Fibers: 2 (Duplex)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Yellow
• Cable Diameter: 3.0 mm
• Core/Cladding: 9/125 µm
• Insertion Loss: ≤0.25 dB typical
• Return Loss: ≥50 dB typical
• Attenuation: ≤0.35 dB/km @ 1310nm, ≤0.22 dB/km @ 1550nm
• Operating Temperature: -20°C to 70°C
• Standards: IEC 60794-2-50, ISO/IEC 11801, EN 50173-1
• RoHS Compliant

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with standard LC/UPC interfaces and is suitable for both indoor and protected outdoor use.
