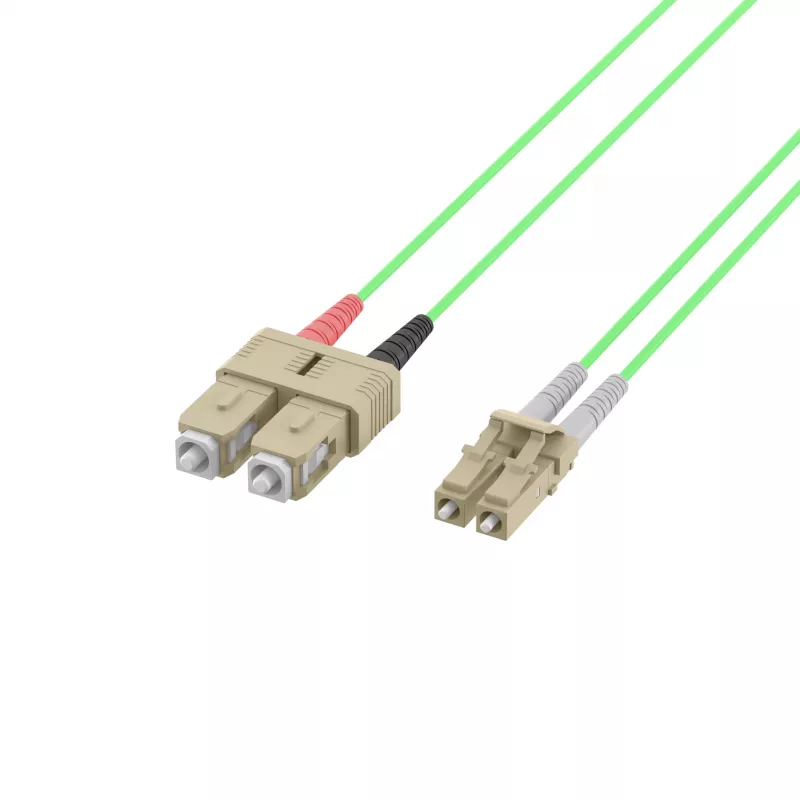

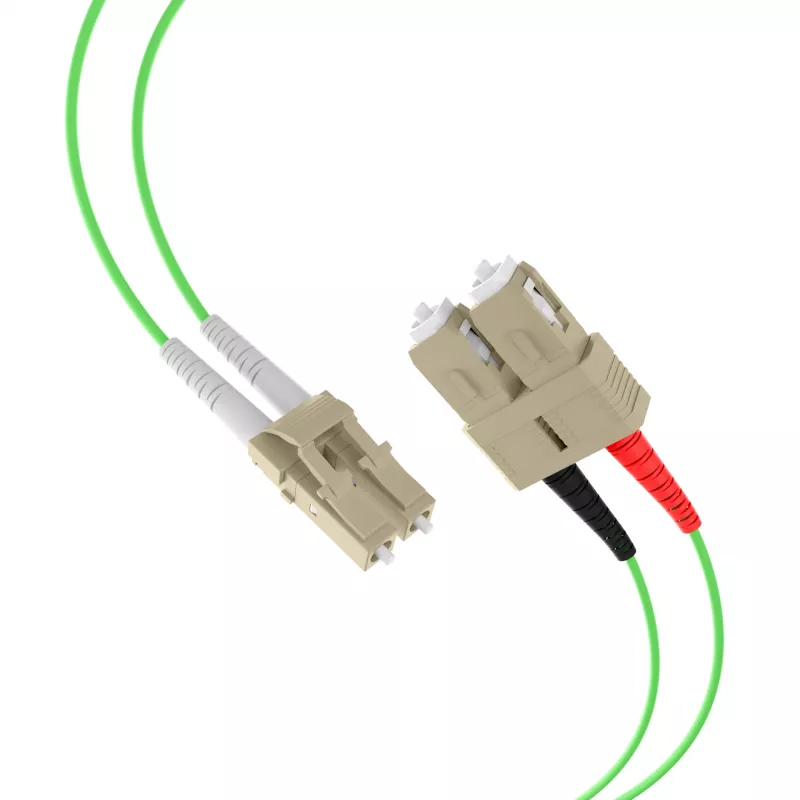

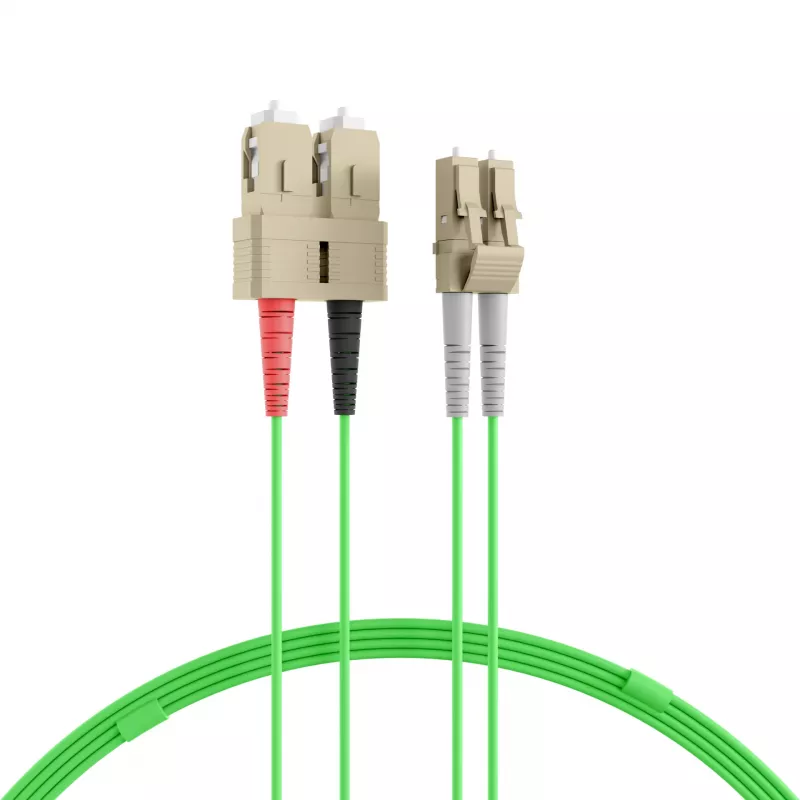

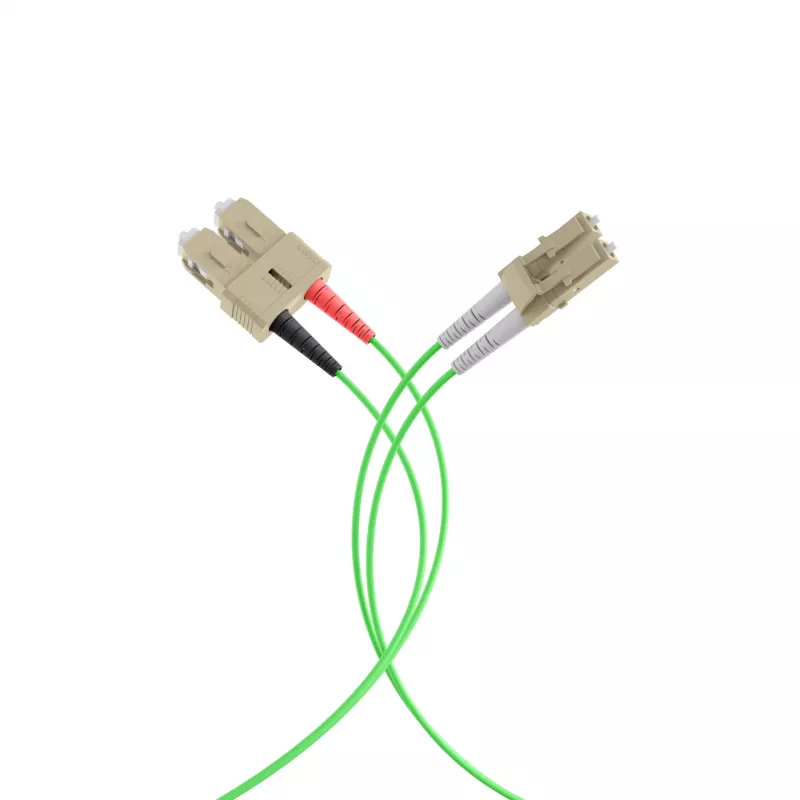

EFB Elektronik IPL-DR-LCUSCU-5-1000 Cable de conexión de fibra óptica, OM5, LC-SC, 10 m, LSZH, Verde lima

The EFB Elektronik IPL-DR-LCUSCU-5-1000 is a high-performance fiber optic patch cable designed for demanding network environments. With OM5 wideband multimode fiber (WBMMF) and duplex LC to SC connectors, this 10-meter cable supports high-bandwidth applications over both 850 nm and 1300 nm wavelengths. The LSZH (Low Smoke Zero Halogen) jacket ensures safety in confined spaces, while the lime green color provides easy identification.

Advantages

OM5 fiber offers superior bandwidth and supports multiple wavelengths, making it ideal for next-generation data centers and high-speed networks. The duplex construction allows for bidirectional communication, and the low insertion loss (≤0.3 dB) ensures reliable signal transmission. LSZH jacket reduces toxic smoke and fumes in case of fire, enhancing safety.

Suitable for

• Data center interconnects
• High-speed local area networks (LANs)
• Storage area networks (SANs)
• Telecommunications infrastructure
• Any application requiring high-bandwidth multimode fiber

Key specifications

• Product Type: Fiber Optic Patch Cable
• Fiber Type: OM5 (Wideband Multimode Fiber)
• Connector A: LC Duplex
• Connector B: SC Duplex
• Cable Length: 10 m
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Lime Green
• Core Diameter: 50 µm
• Cladding Diameter: 125 µm
• Insertion Loss (Max): ≤ 0.3 dB
• Return Loss (Min): ≥ 30 dB
• Operating Temperature: -20°C to 70°C
• Attenuation @ 850nm: ≤ 2.5 dB/km
• Attenuation @ 1300nm: ≤ 0.8 dB/km
• Bandwidth @ 850nm (OFL): 4700 MHz·km
• Bandwidth @ 1300nm (OFL): 500 MHz·km

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with standard LC and SC interfaces. Store in a clean, dry environment.
