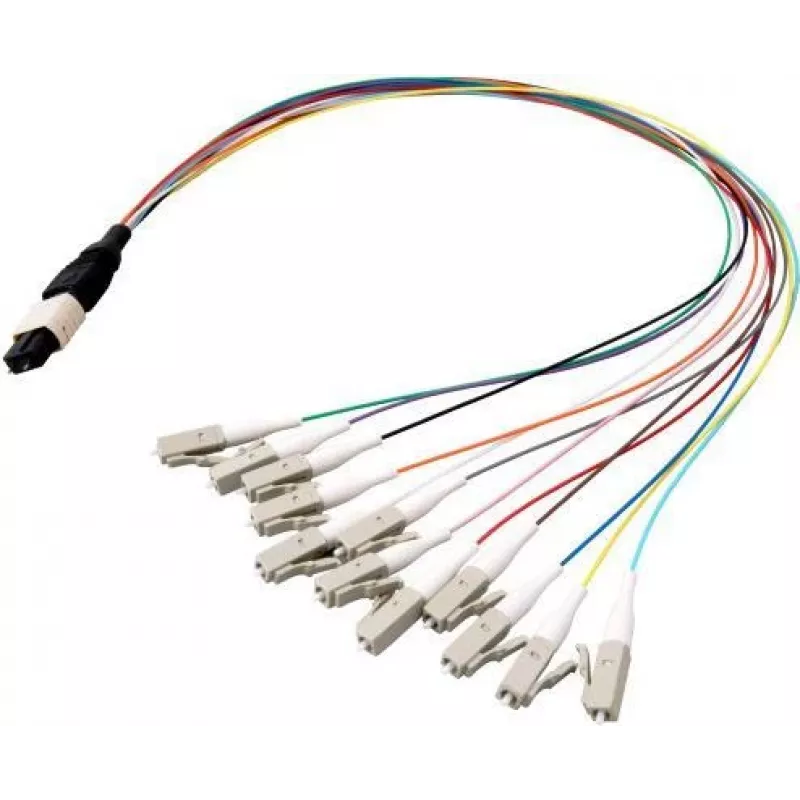

EFB Elektronik MTPM08LCOM3-0.4 Cable fanout MTP a LC, OM3, LSZH, aqua, 0,4 m

The EFB Elektronik MTPM08LCOM3-0.4 is a high-performance MTP to LC fanout cable designed for 40G/100G Ethernet breakout applications in data centers and storage area networks. This 8-fiber multimode OM3 cable features an MTP male connector on one end and four LC duplex connectors on the other, enabling seamless connectivity between MPO-based equipment and LC interfaces. The cable is built with a low smoke zero halogen (LSZH) jacket in aqua color, ensuring safety and easy identification in high-density environments.

Advantages

This fanout cable offers reliable, low-loss performance with insertion loss less than 0.35 dB for MTP and less than 0.25 dB for LC connectors. The OM3 fiber grade supports high-bandwidth applications up to 10 Gb/s over distances up to 300 meters. The LSZH jacket reduces toxic smoke and halogen emissions in case of fire, making it ideal for confined spaces. Polarity Type B ensures correct fiber alignment for duplex transmission.

Suitable for

• Data center 40G/100G Ethernet breakout connections
• Storage area network (SAN) infrastructure
• High-density fiber optic patching
• Telecommunications and enterprise networks

Key specifications

• Cable type: MTP to LC Fanout Cable
• Connector A: MTP Male (MPO)
• Connector B: LC Duplex (4x)
• Fiber count: 8 fibers
• Fiber mode: Multimode
• Fiber grade: OM3
• Core/Cladding: 50/125 µm
• Jacket material: LSZH
• Jacket color: Aqua
• Cable length: 0.4 m
• Insertion loss: <0.35 dB (MTP), <0.25 dB (LC)
• Return loss: >20 dB
• Polarity: Type B
• Operating temperature: -10°C to +70°C
• Storage temperature: -40°C to +85°C
• Standards: RoHS, REACH, TIA/EIA-568-C.3

Recommendations

For optimal performance, ensure proper cable management and avoid exceeding the minimum bend radius of 30 mm during installation. This cable is compatible with standard MPO and LC transceivers.
