EFB Elektronik O0318.1-1.2 cable de red de fibra óptica SC dúplex OM4 multimodo, 1m, violeta, LSZH

With a modal bandwidth of 4700 MHz·km at 850 nm, this EFB Elektronik OM4 fiber patch cable is engineered for high-speed 10G, 40G, and even 100G Ethernet over multimode fiber. The 1-meter length is perfect for patching between switches, servers, and patch panels in data centers and enterprise networks.

Overview

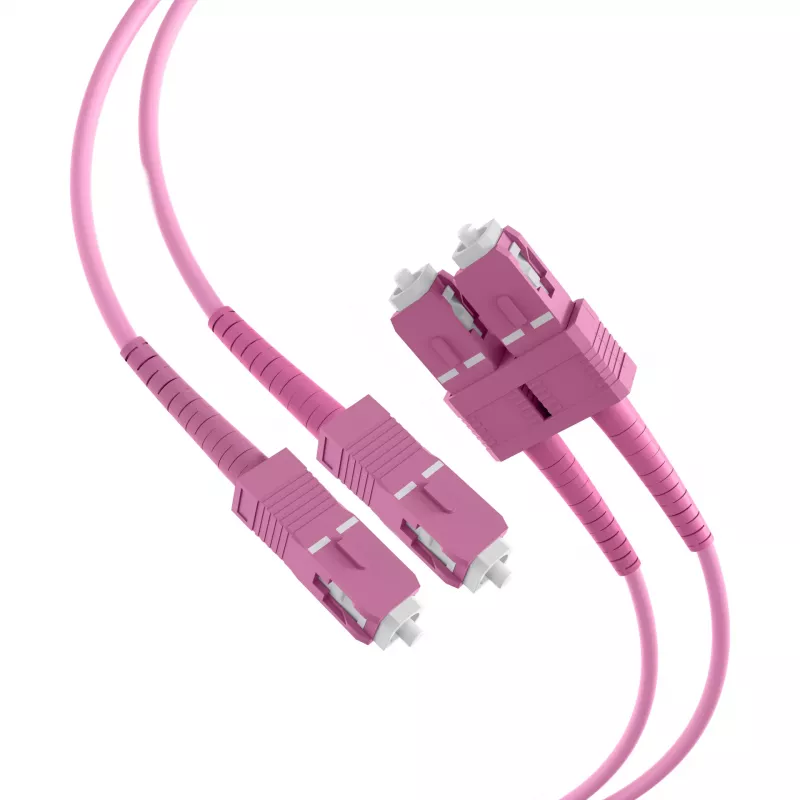

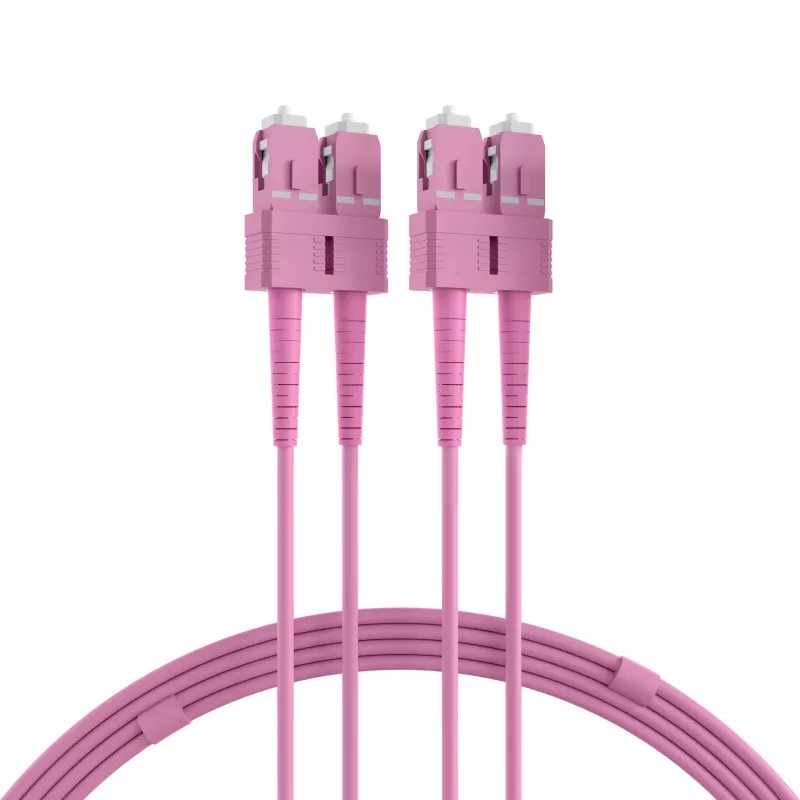

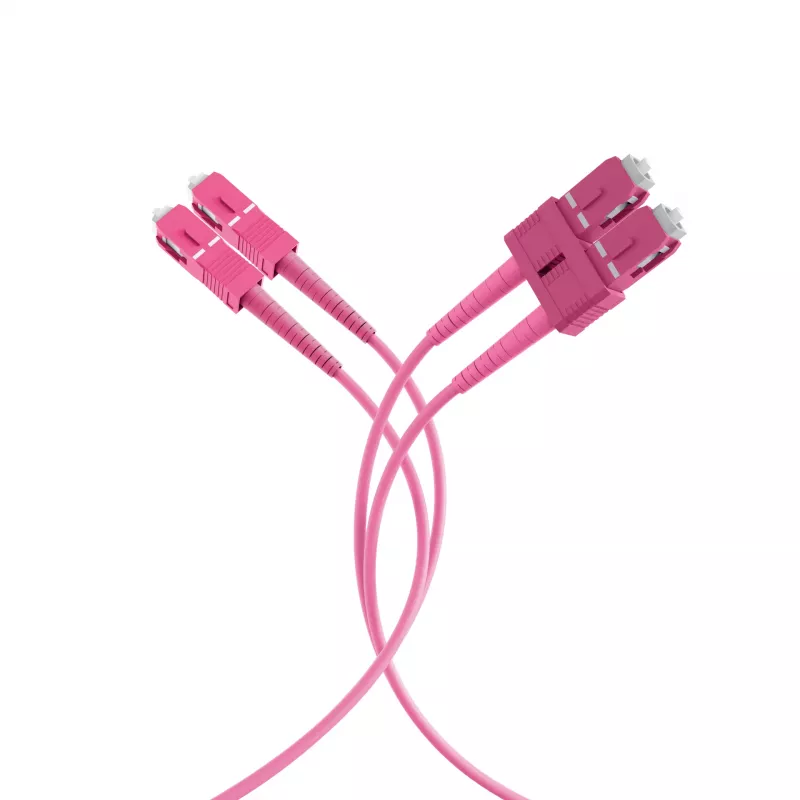

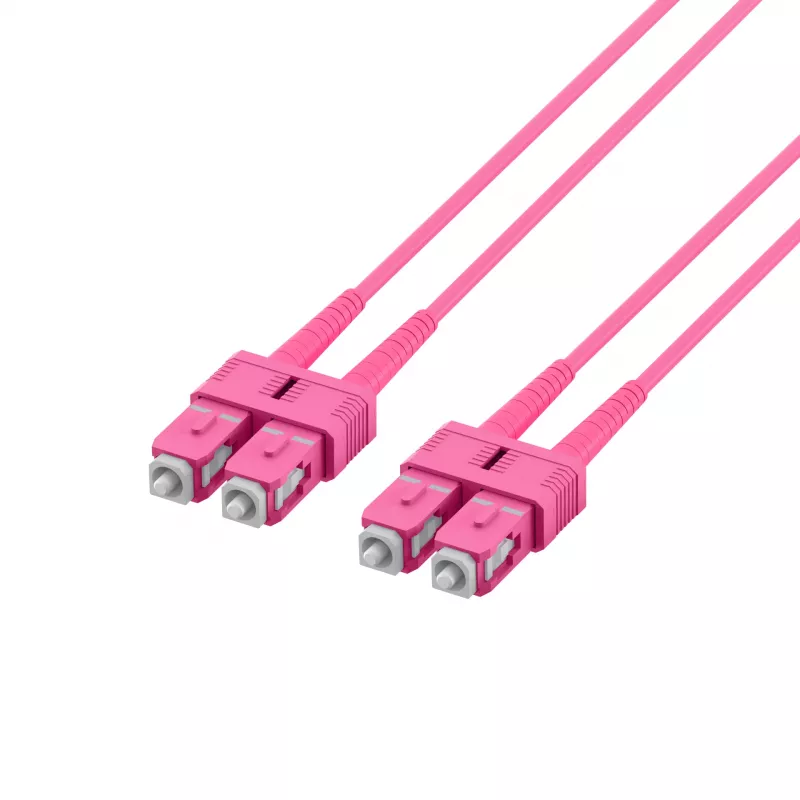

The EFB Elektronik O0318.1-1.2 is a duplex multimode fiber optic patch cable terminated with SC connectors on both ends. It features laser-optimized OM4 fiber with a 50/125 µm core/cladding diameter, ensuring excellent signal integrity for short-reach high-bandwidth applications. The violet LSZH jacket provides low smoke and zero halogen properties, making it suitable for use in plenum and riser environments where fire safety is critical.

What stands out

• OM4 laser-optimized multimode fiber supports 10G, 40G, and 100G Ethernet up to 150 meters at 850 nm.
• SC duplex connectors offer secure, push-pull latching for reliable connections.
• Low insertion loss of ≤ 0.3 dB and return loss of ≥ 30 dB ensure minimal signal degradation.
• LSZH jacket reduces toxic smoke and corrosive gases in case of fire.
• Violet color coding complies with TIA/EIA-568-C.3 standards for OM4 identification.

Technical details

• Cable type: Fiber optic patch cable, duplex multimode
• Fiber grade: OM4
• Connectors: SC duplex to SC duplex
• Cable length: 1 m
• Jacket color: Violet
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Core/cladding diameter: 50/125 µm
• Insertion loss: ≤ 0.3 dB
• Return loss: ≥ 30 dB
• Attenuation at 850 nm: ≤ 2.3 dB/km
• Attenuation at 1300 nm: ≤ 0.6 dB/km
• Operating temperature: -20°C to 70°C
• Standards compliance: TIA/EIA-568-C.3, ISO/IEC 11801, EN 50173-1, IEC 60793-2-10 Type A1a.3

Our verdict

A reliable OM4 patch cable that delivers high performance for demanding data center applications, with safety-conscious LSZH jacketing.
