EFB Elektronik U-DQ(ZN)BH 24E 9/125µm G657A LSZH negro CPR B2ca - cable de fibra óptica universal low-smoke

The EFB Elektronik U-DQ(ZN)BH 24E is a high-performance universal fiber optic cable designed for indoor and outdoor applications. With 24 single-mode fibers (OS2) featuring bend-insensitive G.657.A technology, this cable ensures reliable data transmission even in tight installation spaces. The LSZH (Low Smoke Zero Halogen) sheath in black provides enhanced safety in case of fire, while the CPR B2ca classification guarantees compliance with European fire safety standards. Ideal for backbone cabling, data centers, and FTTH networks.

Advantages

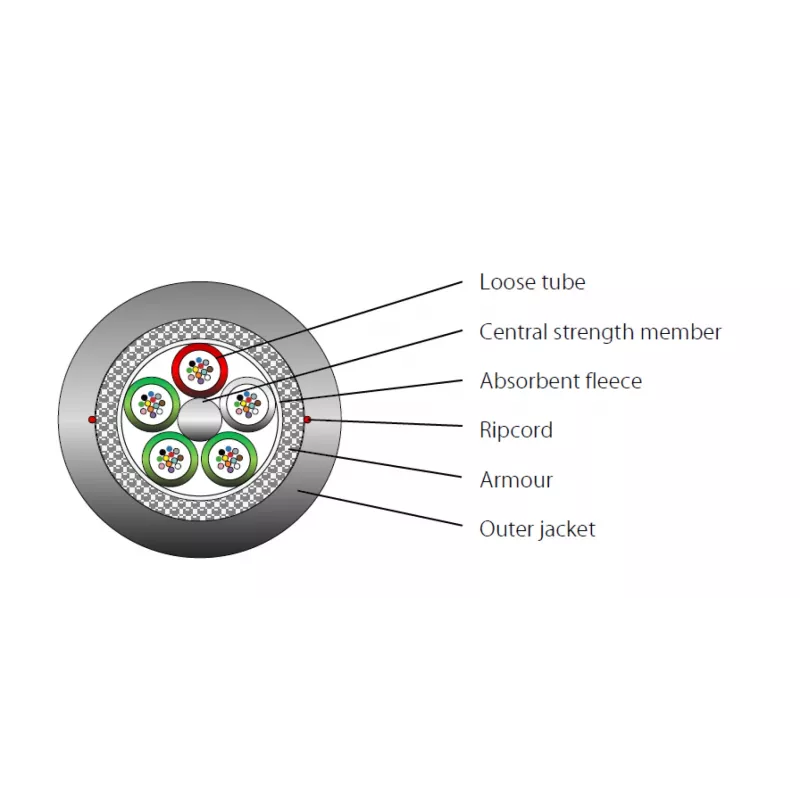

Bend-insensitive fibers reduce signal loss during installation and operation. Dry water-blocking technology eliminates the need for gels, making installation cleaner and faster. The robust construction with aramid yarn strain relief ensures durability and long service life.

Suitable for

• Indoor/outdoor backbone cabling
• Data center infrastructure
• FTTH (Fiber to the Home) networks
• Industrial environments requiring low smoke and halogen-free materials

Key specifications

• Fiber count: 24
• Fiber type: Single-mode (OS2), G.657.A
• Core/cladding: 9/125 µm
• Sheath: LSZH, black
• CPR class: B2ca-s1a, d1, a1
• Outer diameter: 11.0 mm
• Min. bend radius (installation): 220 mm
• Min. bend radius (operation): 110 mm
• Tensile strength (short term): 1500 N
• Crush resistance: 1500 N/10cm
• Temperature range: -20°C to +70°C

Recommendations

For optimal performance, use with appropriate connectors (LC, SC, FC, or ST) and ensure proper cable management to maintain bend radius limits. This cable is suitable for both indoor and outdoor use, but direct burial is not recommended without additional protection.
