EFB PRO Armario de red 18U 600x800mm Gris claro RAL7035

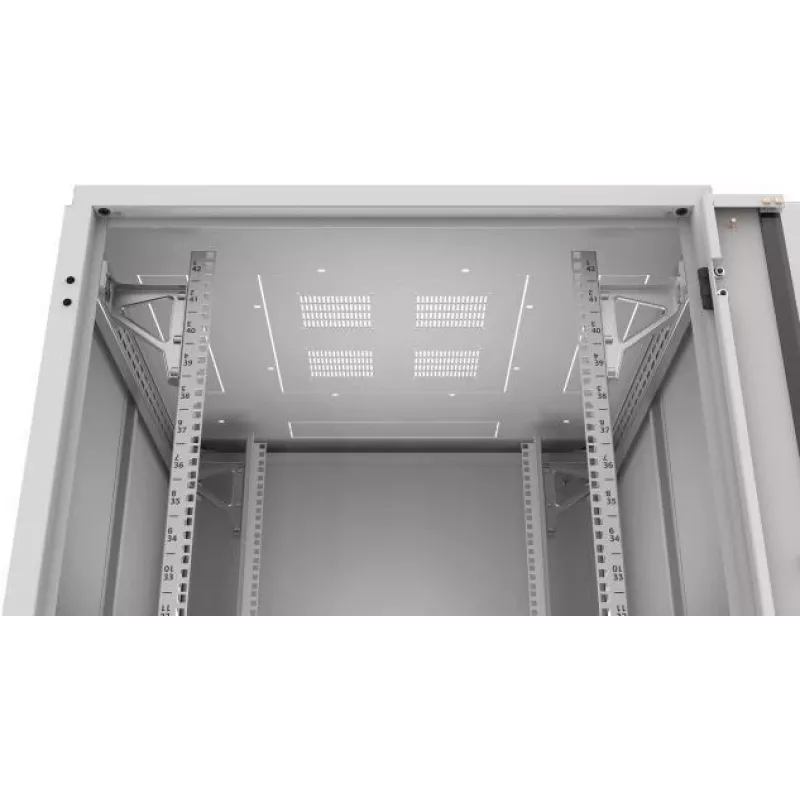

The EFB PRO-1868GR.G1SV is a high-quality 19-inch network cabinet designed for professional IT environments. With 18U of rack space and dimensions of 600x800 mm (WxD), it offers ample room for servers, switches, and networking equipment. The cabinet features a lockable safety glass front door and a solid steel rear door, ensuring security and visibility. Side panels are removable and lockable for easy access. Finished in RAL 7035 light grey powder coating, it provides a clean, modern appearance.

Advantages

Robust steel construction with a load capacity of up to 600 kg. Adjustable depth mounting rails accommodate various equipment depths. Cable entry at top and bottom with brush strips for tidy cable management. Pre-assembled for quick deployment. Includes levelling feet and castors for flexible positioning.

Suitable for

• Data centers and server rooms
• Network and telecommunications installations
• IT infrastructure for small to medium businesses

Key specifications

• Rack Units: 18U
• Rack Width: 19 inches (48.3 cm)
• External Dimensions: 600 x 800 x 930 mm (WxDxH)
• Colour: Light Grey RAL 7035
• Front Door: Safety glass, lockable
• Rear Door: Solid steel, lockable
• Side Panels: Removable, lockable
• Material: Steel sheet
• Protection Class: IP20
• Load Capacity: 600 kg
• Cable Entry: Top and bottom with brush strips
• Mounting Rails: Adjustable depth, front and rear
• Ventilation: Passive, prepared for active fan units
• Feet/Castors: Levelling feet and castors included
• Security: Lockable doors and side panels
• Standard Compliance: IEC 60297-3-100
• Assembly: Pre-assembled
• Finish: Powder coated

Recommendations

This cabinet is ideal for organizing and securing your network equipment. Ensure adequate ventilation for active components; optional fan units can be added.
