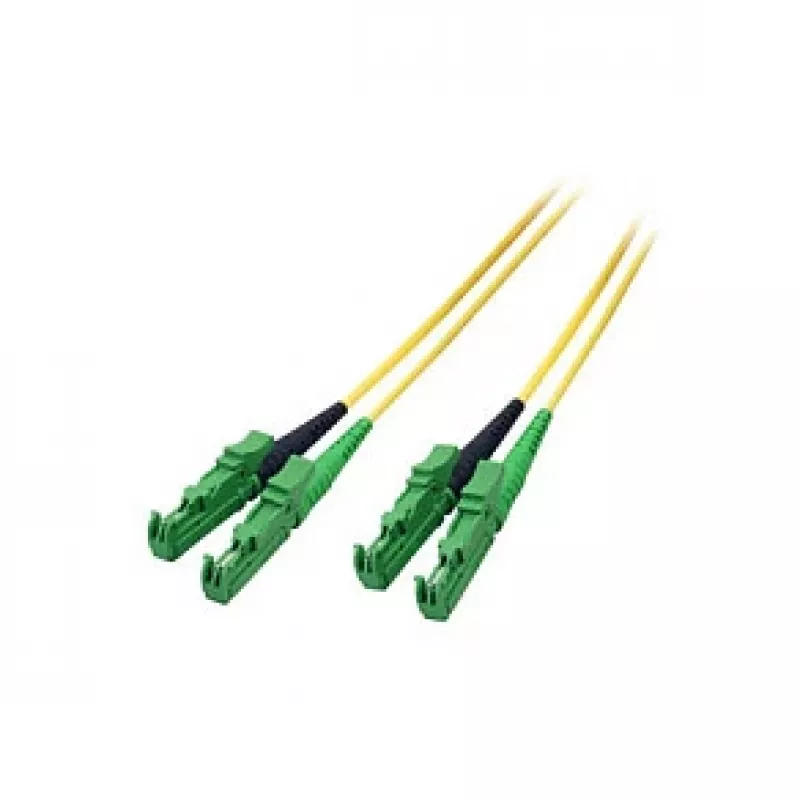

EFB R&M cable de parcheo dúplex E2000/APC-E2000/APC OS2 5m LSZH 3mm amarillo G657A1 Grade C

The EFB R&M Duplex Patch Cable E2000/APC-E2000/APC OS2 5m LSZH 3mm Yellow G657A1 Grade C is a high-performance fiber optic patch cable designed for reliable singlemode connections in data centers, telecommunications, and enterprise networks. Engineered with premium components, it ensures low insertion loss and high return loss for optimal signal integrity.

Advantages

This patch cable offers exceptional bend resistance thanks to ITU-T G.657.A1 fiber, making installation in tight spaces easy without compromising performance. The LSZH jacket provides safety in enclosed areas by emitting low smoke and no halogen in case of fire. Duplex configuration supports bidirectional communication, and the E2000/APC connectors with zirconia ceramic ferrules guarantee stable, low-loss connections.

Suitable for

• Fiber optic network infrastructure in data centers
• Telecommunications and broadband networks
• Enterprise LAN and SAN environments
• FTTx and CATV systems
• High-speed data transmission up to 10 Gbps and beyond

Key specifications

• Connector Type: E2000/APC to E2000/APC
• Fiber Mode: Singlemode (OS2)
• Cable Configuration: Duplex
• Cable Length: 5 m
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Yellow
• Cable Diameter: 3 mm
• Fiber Standard: ITU-T G.657.A1
• Insertion Loss: ≤ 0.25 dB
• Return Loss: ≥ 60 dB
• Ferrule Material: Zirconia Ceramic
• Polishing Type: APC
• Operating Temperature: -20°C to +70°C
• Compliance: RoHS, REACH

Recommendations

For optimal performance, ensure connectors are clean before mating. This cable is ideal for high-density patching areas where bend-insensitive fiber is required. Pair with EFB R&M adapters and cassettes for a complete solution.
