ELEKTRA-PLUS R2 cerradero eléctrico estrecho derecho 1340

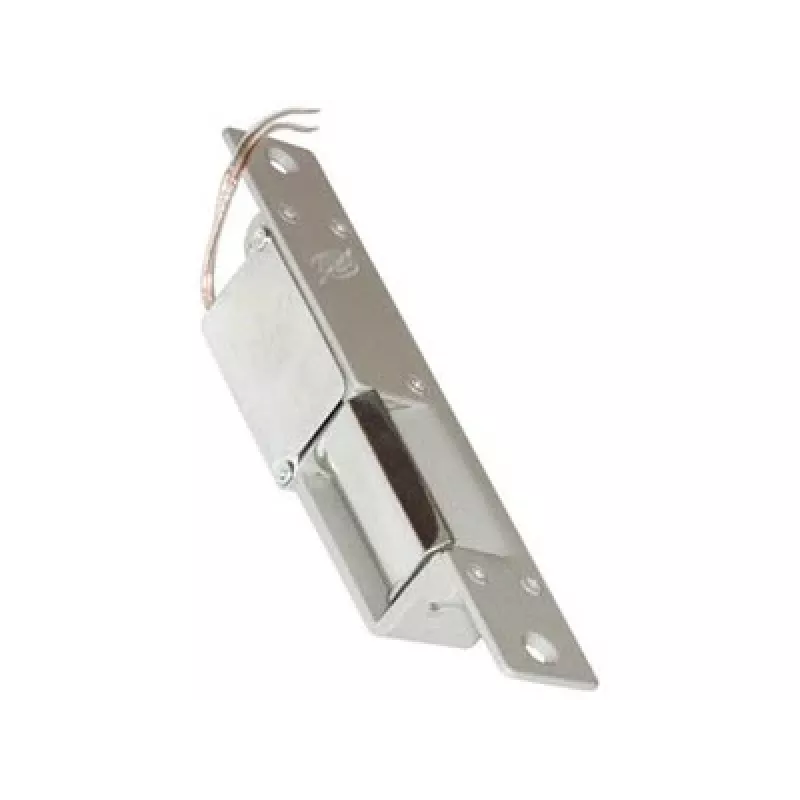

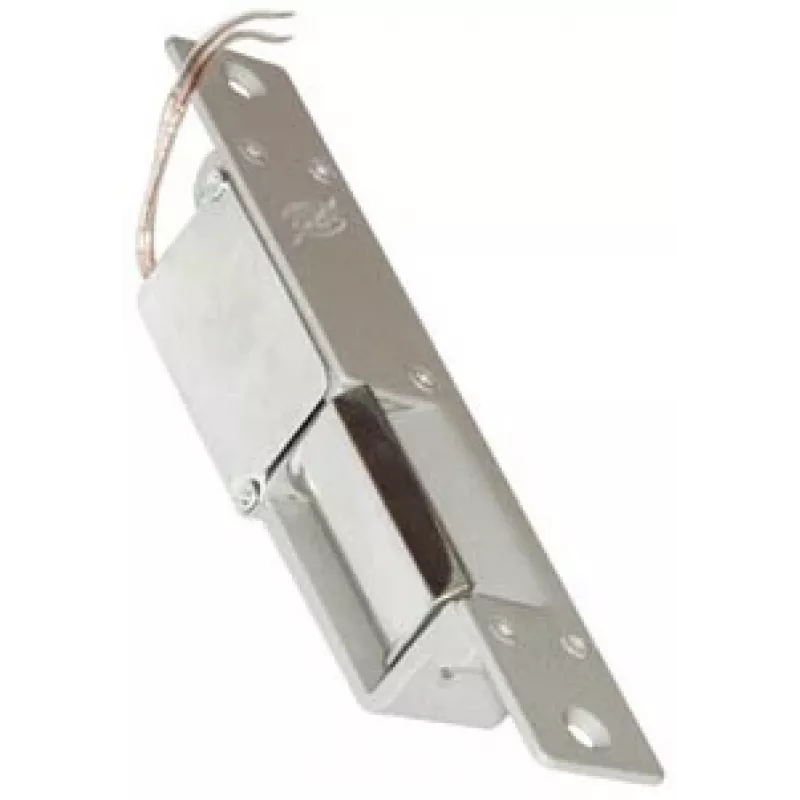

The ELEKTRA-PLUS R2 Narrow Right Electric Strike 1340 is a narrow electric strike designed for door access control. It features a housing with external dimensions of 27 x 33 x 118 mm and a weight of 0.25 kg.

Key features

• Narrow right electric strike
• Model: R2-12.10P
• Permissible pressure on door during latch release: 30N (3 kG)
• Permissible door load acting on strike: 2500 N (250 kG)
• Rated voltage U: 10 ± 2V * / 24 ± 2V **
• Current I: AC 340-540mA, DC 630-940mA
• Permissible continuous operation time: 30 min.

Specifications

• Brand: Elektra-Plus
• MPN: R2-12.10P

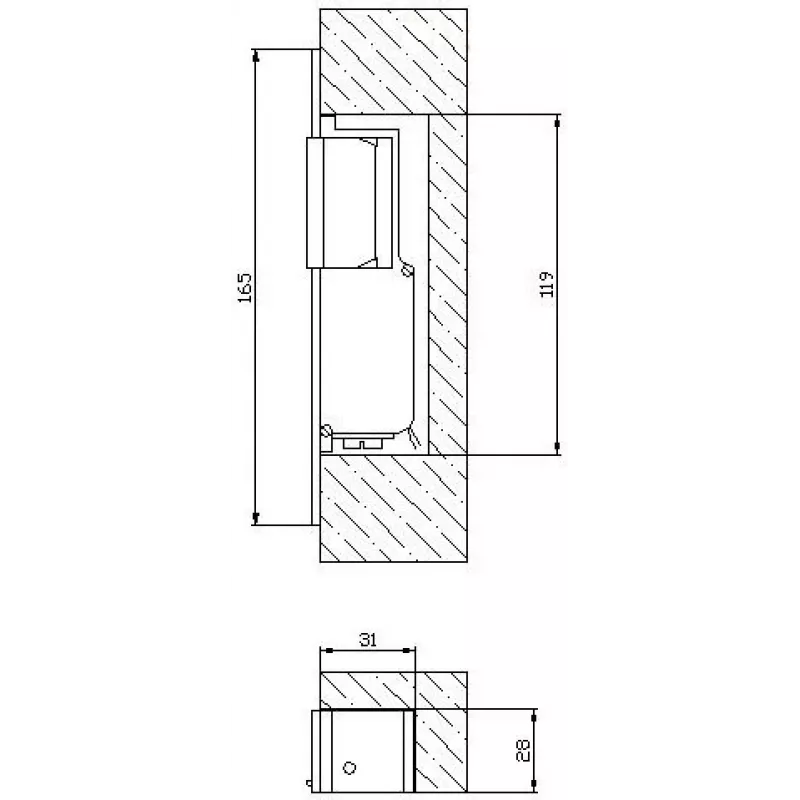

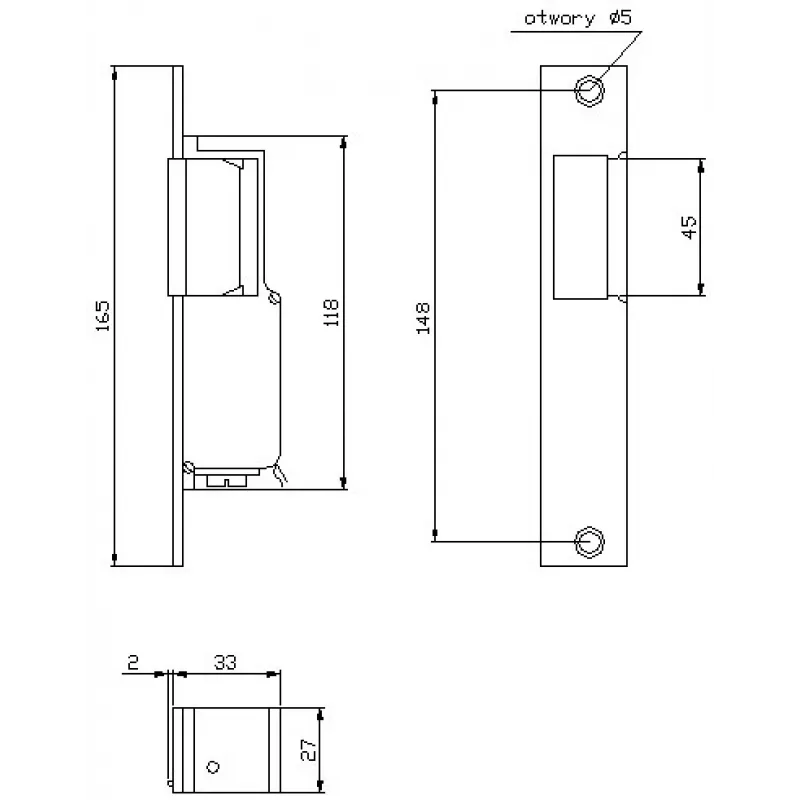

• Housing external dimensions: 27 x 33 x 118 mm
• Weight: 0.25 kg
• Permissible pressure on door during latch release: 30N (3 kG)
• Permissible door load acting on strike: 2500 N (250 kG)
• Rated voltage U: 10 ± 2V * / 24 ± 2V **
• Current I: AC 340-540mA, DC 630-940mA
• Permissible continuous operation time: 30 min.

* allows the use of a bell transformer
** in special version
