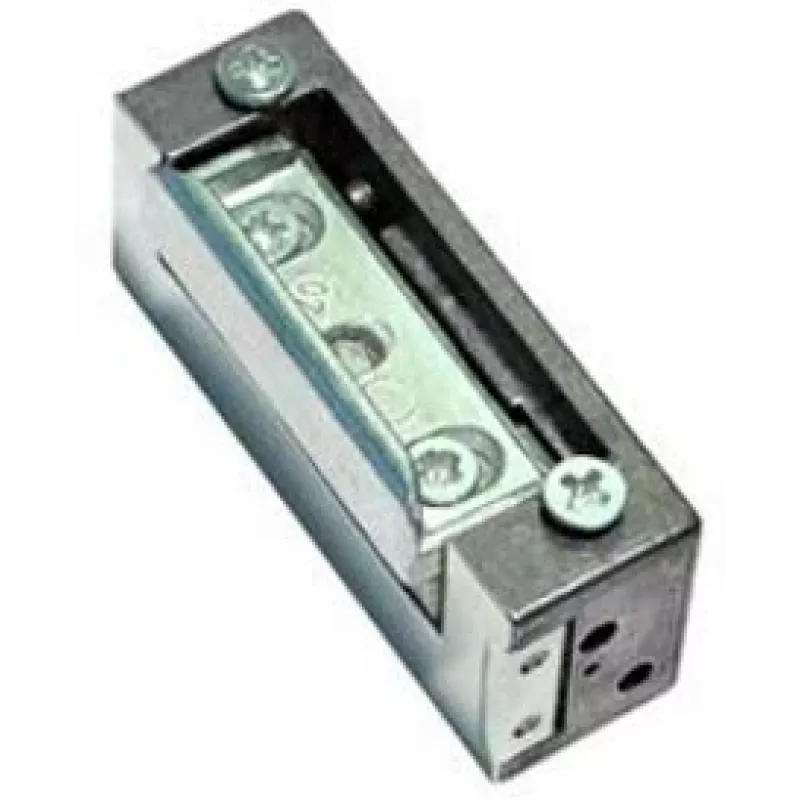

ELEKTRA-PLUS R4 cerradero eléctrico reversible sin bloqueo, 12V DC

The ELEKTRA-PLUS R4 is a reversible electric strike designed for door release applications. It operates at a nominal voltage of 11 ± 1V DC or AC (with an additional rectifier system required for AC). The strike features an adjustable latch with a 3 mm adjustment range to compensate for play.

Key features

• Reversible design
• Adjustable latch with 3 mm range
• Unlimited continuous operation time
• Can be used with a bell transformer

Specifications

• Brand: Elektra-Plus
• MPN: R4-12.13-DC
• Model: R4-12.13-DC
• External housing dimensions: 21 x 29 x 67 mm
• Weight: 0.16 kg
• Permissible pressure on door during latch release: 30 N (3 kg)
• Permissible door load acting on strike: 3000 N (300 kg)
• Nominal voltage U: 11 ± 1V DC; 11 ± 1V AC (requires additional rectifier system)
• Current I: AC 210-270 mA; DC 250-300 mA
• Permissible continuous operation time: unlimited
• Latch: adjustable within 3 mm range
