EMITER Cuadro eléctrico DC/AC hermético IP65 EMITTER con protector contra sobretensiones DC Dehn 1000V Tipo 2, 2 x PV-String, 2 x MPPT // og. AC Dehn Tipo 2, 10A 3 fases, RCD Tipo A 40A/300mA

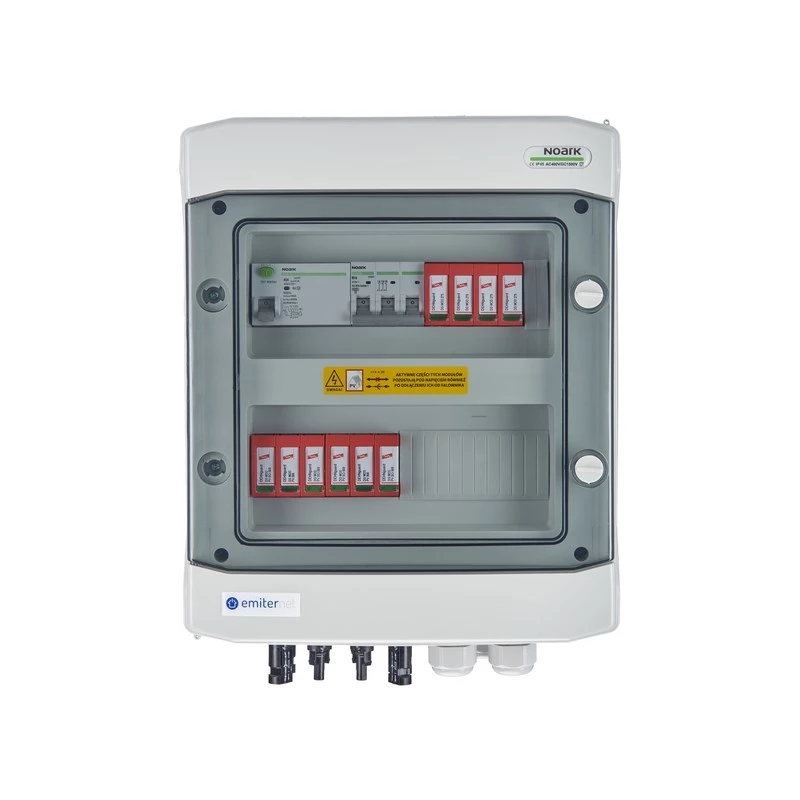

The EMITER EM-1102_DCAC is a high-performance DC/AC photovoltaic switchgear designed for reliable protection and control in solar PV systems. This hermetic IP65 enclosure integrates both DC and AC surge protection devices from Dehn, ensuring comprehensive safety for your installation. With support for 2 PV strings and 2 MPPT inputs, it is ideal for residential and commercial on-grid or off-grid applications.

Advantages

Integrated DC and AC surge protection in a single compact unit; hermetic IP65 enclosure for outdoor use; Type 2 SPDs from Dehn provide robust protection against transient overvoltages; 3-phase AC configuration with 10A main switch and Type A RCD ensures electrical safety.

Suitable for

• Solar photovoltaic systems (on-grid and off-grid)
• Outdoor installations requiring IP65 protection
• Systems with up to 2 PV strings and 2 MPPT inputs
• 3-phase AC networks with 10A rating

Key specifications

• Product Type: DC/AC Photovoltaic Switchgear
• Enclosure Protection Rating: IP65
• DC System Voltage: 1000V
• Number of DC PV Strings: 2
• Number of MPPT Inputs: 2
• DC Surge Protection Device (SPD) Brand: Dehn
• DC Surge Protection Device (SPD) Type: Type 2
• AC Surge Protection Device (SPD) Brand: Dehn
• AC Surge Protection Device (SPD) Type: Type 2
• AC System Configuration: 3-Phase
• AC Main Switch/Breaker Current: 10A
• Residual Current Device (RCD) Type: Type A
• Residual Current Device (RCD) Rated Current: 40A
• Residual Current Device (RCD) Tripping Current: 300mA
• Enclosure Design: Hermetic
• Application: Solar Photovoltaic Systems

Recommendations

For optimal performance, ensure proper installation by a qualified electrician. Verify compatibility with your PV system voltage and string configuration. Regular inspection of surge protection devices is recommended.
