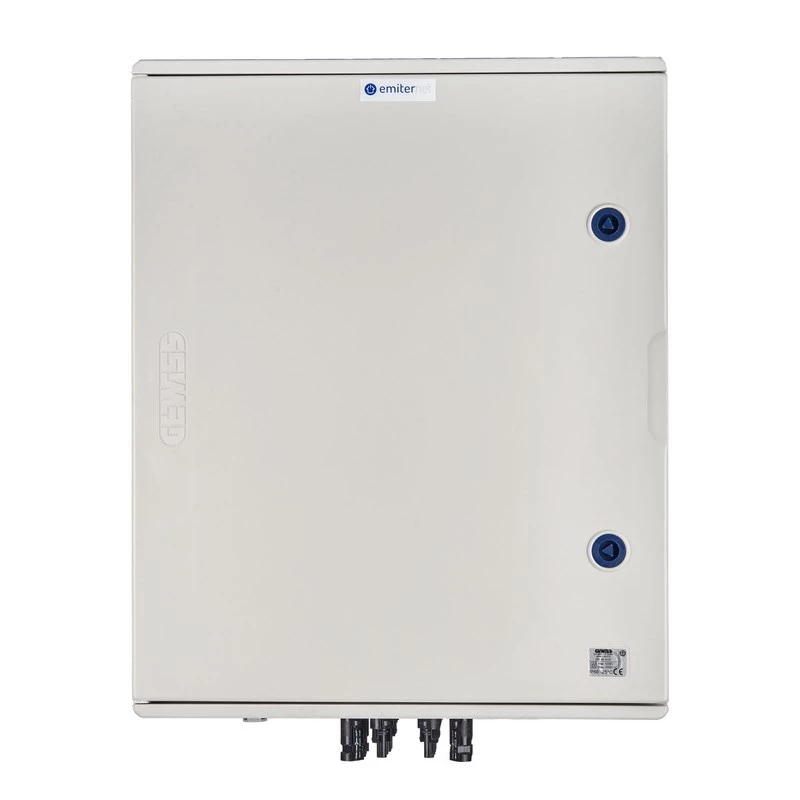

EMITER Cuadro eléctrico DCAC hermético IP66 EMITTER con descargador de sobretensión DC Dehn 1000V Type 1+2, 4 x string PV, 4 x MPPT // Ogr. AC Dehn Type 1+2, 100A 3 fases, FR 100A, Syg. Faz + toma de corriente

The EMITER Switchgear Attached DCAC Hermetic IP66 EMITTER is a high-performance photovoltaic (PV) switchgear unit designed for reliable DC and AC protection in solar installations. This unit integrates Dehn surge protection devices (Type 1+2) for both DC and AC sides, ensuring comprehensive overvoltage protection. With a 4-string DC input configuration and 4 MPPT inputs, it is ideal for medium to large PV systems. The hermetic IP66 enclosure guarantees dust and water ingress protection, making it suitable for outdoor and harsh environments. The AC side features a 3-phase 100A fuse-switch-disconnector (FR) and an auxiliary socket for convenient maintenance.

Advantages

Integrated Dehn Type 1+2 surge arresters for both DC (1000V) and AC (3-phase) provide robust protection against lightning and switching surges. The hermetic IP66 enclosure ensures long-term durability in outdoor conditions. The unit includes phase signaling and an auxiliary socket for easy monitoring and servicing.

Suitable for

• Photovoltaic (PV) systems requiring combined DC and AC switchgear
• Outdoor installations where IP66 protection is necessary
• Systems with up to 4 PV strings and 4 MPPT inputs
• 3-phase AC networks up to 100A

Key specifications

• Product Type: PV DC/AC Switchgear
• DC Input Configuration: 4 PV Strings
• MPPT Compatibility: 4 MPPT Inputs
• DC Surge Protection: Dehn Type 1+2, 1000V
• AC Surge Protection: Dehn Type 1+2
• AC Rated Current: 100A
• AC Phase Configuration: 3-Phase
• AC Disconnect: Fuse-switch-disconnector (FR) 100A
• Enclosure Protection: IP66, Hermetic
• Integrated Features: Phase Signaling, Auxiliary Socket
• Mounting: Wall-attached
• SPD Manufacturer: Dehn

Recommendations

For optimal performance, ensure that the PV system design matches the 4-string and 4-MPPT configuration. Professional installation by a qualified electrician is recommended to comply with local regulations.
