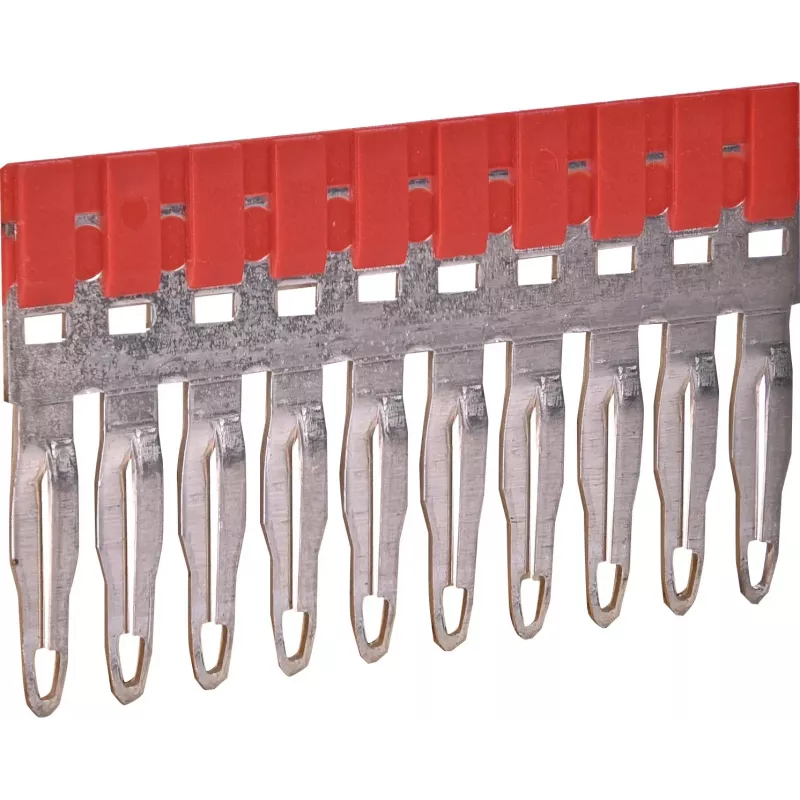

ETI ESC-PTP4/10/R puente de conexión para unión transversal, 10 polos, rojo, 32 A, 800 V 003903030

Plug-in bridge for ETI ESC series terminal blocks, enabling cross-connection of 10 poles with a rated current of 32 A and voltage of 800 V. Its red polyamide housing provides clear visual identification and robust insulation.

Advantages

Direct plug-in mounting saves time during installation. The bridge is made of nickel-plated copper alloy for reliable conductivity and polyamide with UL94-V0 flammability rating for safety. Operating temperature range from -40°C to +105°C ensures performance in harsh environments.

Suitable for

• Cross-connection and potential distribution in control cabinets
• ETI ESC series terminal blocks with 4 mm² cross-section
• Industrial automation and power distribution applications

Key specifications

• Number of poles: 10
• Colour: Red
• Rated current: 32 A
• Rated voltage: 800 V
• Insulation material: Polyamide (PA)
• Conductor material: Copper alloy, nickel-plated
• Operating temperature: -40°C to +105°C
• Flammability rating: UL94-V0
• Compatible with ETI ESC series terminal blocks, 4 mm²

Recommendations

Use with ETI ESC-CBC.4 and ESC-CBC.4B bridges for efficient cross-connection in distribution boards.
