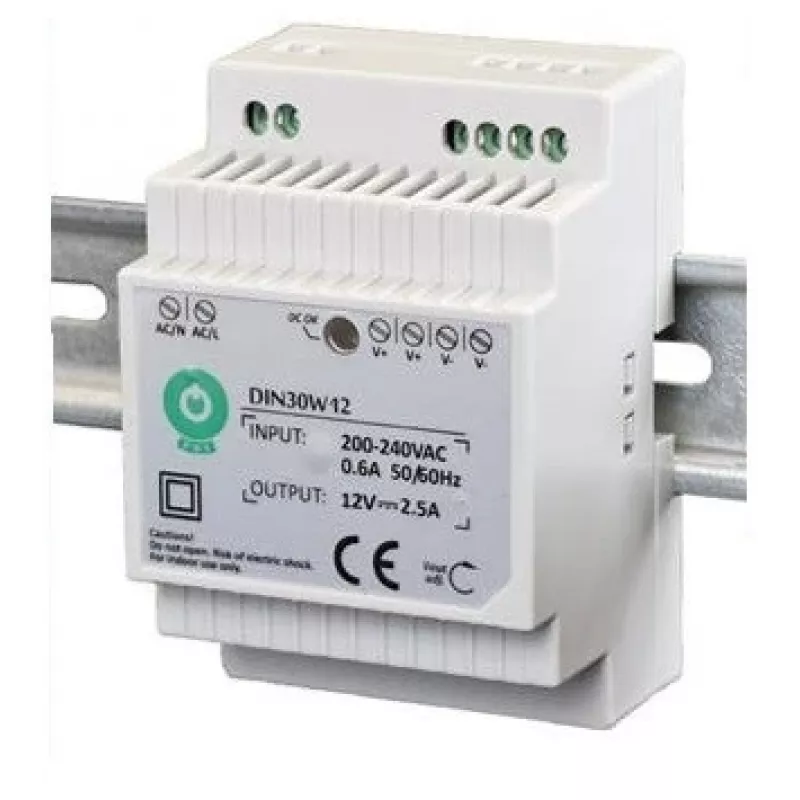

Fuente de alimentación conmutada DIN EURA DIN30W12 12V 2,5A DC

The EURA DIN30W12 is a high-quality DIN rail power supply delivering a stable 12V DC output with 2.5A current and 30W power. Designed for industrial automation, control cabinets, and building technology, it ensures reliable performance in demanding environments.

Advantages

Compact design for space-saving installation on TS-35 DIN rails. High efficiency (>82%) reduces energy loss and heat generation. Comprehensive protection features safeguard connected equipment against overload, short circuit, and overvoltage. Natural convection cooling ensures silent operation and long service life.

Suitable for

• Industrial control systems
• PLC and automation equipment
• Building management systems
• Security and access control systems
• LED lighting and signage

Key specifications

• Output: 12V DC, 2.5A, 30W
• Input: 100-240V AC, 50/60 Hz
• Mounting: DIN Rail (TS-35/7.5 or TS-35/15)
• Efficiency: >82%
• Protection: Overload, Short Circuit, Overvoltage
• Operating Temperature: -10°C to +50°C
• Connection: Screw Terminals
• Housing: Plastic (PC/ABS)
• Certifications: CE

Recommendations

For optimal performance, ensure adequate ventilation and do not exceed the rated output. Suitable for use in dry, indoor environments. Pair with appropriate circuit protection devices.
