Fuente de alimentación MEAN WELL GST280A48-C6P, 280 W, salida 48 V, entrada 85–264 V, RoHS, 95×220×46 mm

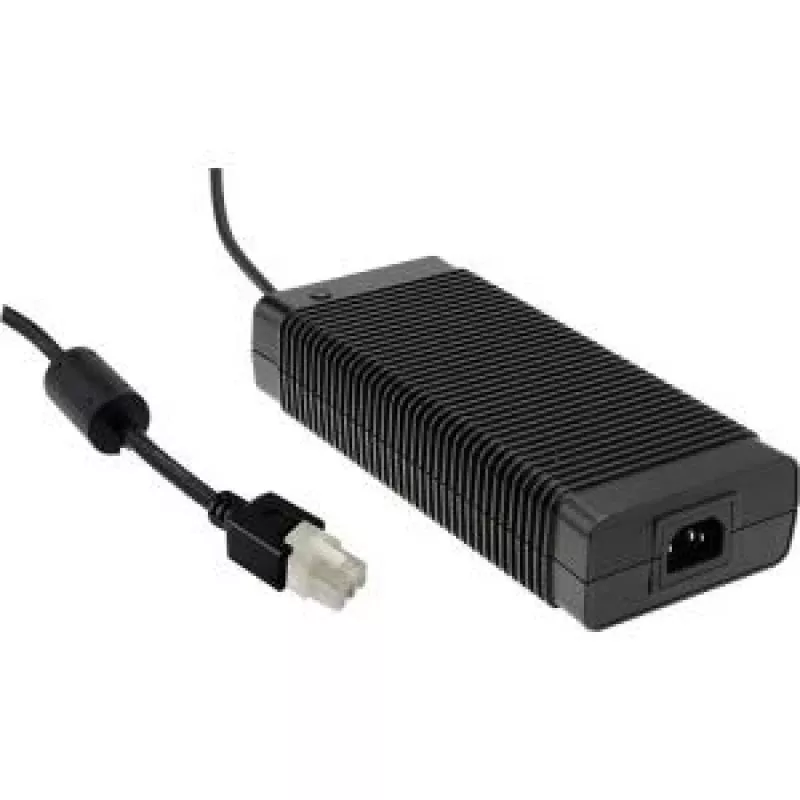

MEAN WELL GST280A48-C6P is an AC-DC industrial desktop adapter with active power factor correction (PFC) delivering 48 V DC at up to 5.84 A (280 W). It accepts a wide input voltage range of 85–264 V AC and is supplied with a 3-pole IEC320-C14 AC inlet. The unit is RoHS compliant and is designed for reliable power delivery in industrial and professional equipment.

Advantages

The GST280A48-C6P provides stable 48 V output with up to 280 W of power in a compact desktop enclosure (95 × 220 × 46 mm). Built-in PFC improves input current quality and compatibility with global AC mains, while the IEC320-C14 inlet simplifies installation and replacement. RoHS compliance ensures adherence to environmental material standards.

Suitable for

• Industrial control systems and automation equipment
• Network and telecommunications devices requiring 48 V supply
• Laboratory and bench power for professional electronics
• Embedded systems and appliances with external desktop power modules

Key specifications

• Model: MEAN WELL GST280A48-C6P
• Input voltage: 85–264 V AC
• Output voltage/current: 48 V DC / 5.84 A (280 W)
• AC inlet: 3-pole IEC320-C14
• Compliance: RoHS
• Dimensions (W×D×H): 95 × 220 × 46 mm
• Quantity per pack: 12 pcs

How to use

Connect the adapter to a compatible AC mains supply using a cord with an IEC320-C13 connector matched to the device's IEC320-C14 inlet. Verify the input voltage is within 85–264 V AC before powering on. Connect the 48 V DC output to the target equipment, observing correct polarity and appropriate cable sizing for a 5.84 A load. Allow adequate ventilation around the unit and mount or place it on a stable surface.

Recommendations

For reliable operation, avoid operating the adapter in environments exceeding the manufacturer's specified ambient temperature and ensure sufficient airflow. Use appropriate fusing on the AC and DC sides when integrating into permanent installations and follow local electrical codes for grounding and protection.
