Fuente de alimentación mean well GST36B12-P1J 36 W, entrada 85–264 V, salida 12 V, RoHS, 54×79×33 mm

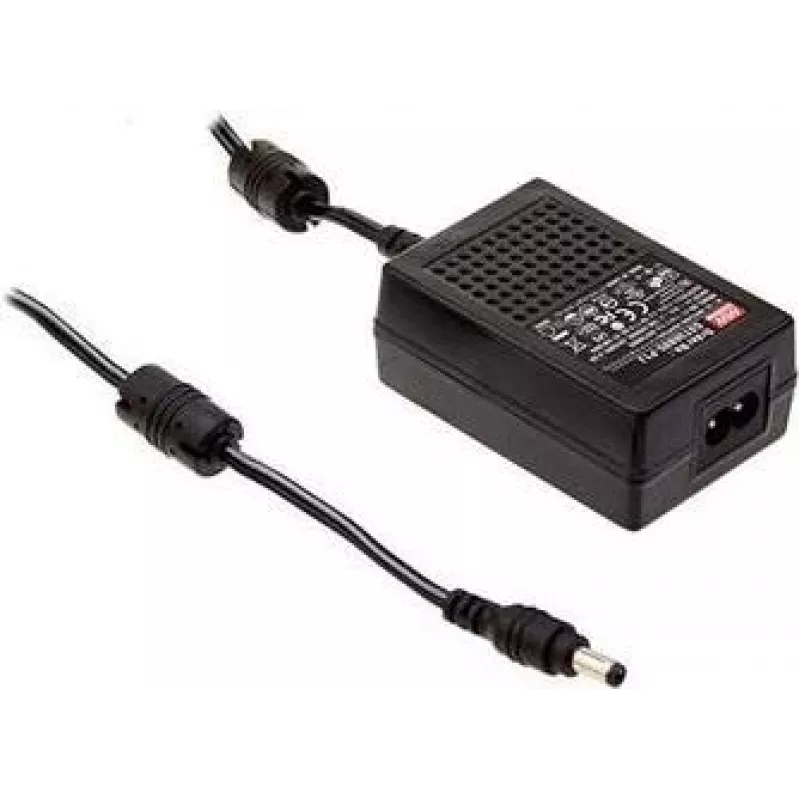

Mean Well GST36B12-P1J is a 36 W AC-DC industrial desktop adapter that delivers a regulated 12 V DC output at up to 3 A. It accepts a wide 85–264 V AC input range and features a 2-pole IEC320-C8 AC inlet. The adapter is RoHS-compliant and has compact dimensions of 54 × 79 × 33 mm, making it suitable for installations with limited space. Pack quantity: 60 pcs.

Advantages

The GST36B12-P1J provides stable 12 V DC output with up to 3 A current capacity, compact size for constrained mounting locations, wide input voltage range for global compatibility, and compliance with RoHS environmental requirements. The integrated IEC320-C8 inlet ensures easy connection to standard mains cables commonly used in desktop and industrial applications.

Suitable for

• Low-voltage electronic devices and modules requiring 12 V DC
• Desktop equipment and small industrial control units
• Installations with limited space where a compact adapter is required
• Applications needing wide AC input compatibility (85–264 V)

Key specifications

• Model: GST36B12-P1J
• Output: 12 V DC, 3 A, 36 W
• Input: 85–264 V AC
• AC inlet: 2-pole IEC320-C8
• Compliance: RoHS
• Dimensions: 54 × 79 × 33 mm
• Pack quantity: 60 pcs

How to use

Connect a compatible IEC320-C7 mains cable to the adapter's IEC320-C8 inlet and plug the cable into an appropriate AC supply within the 85–264 V range. Connect the 12 V DC output to the device observing correct polarity and ensure the connected device does not exceed the 3 A maximum current. Place the adapter in a well-ventilated area and avoid covering it during operation to maintain proper cooling.

Recommendations

Verify device current draw before use; for continuous loads near 3 A, allow sufficient ventilation and consider thermal derating in enclosed environments. Use cables and connectors rated for the required current and follow local electrical safety regulations when installing.
