Fuente de alimentación PLANET PWR-60-24 60 W Azul Blanco

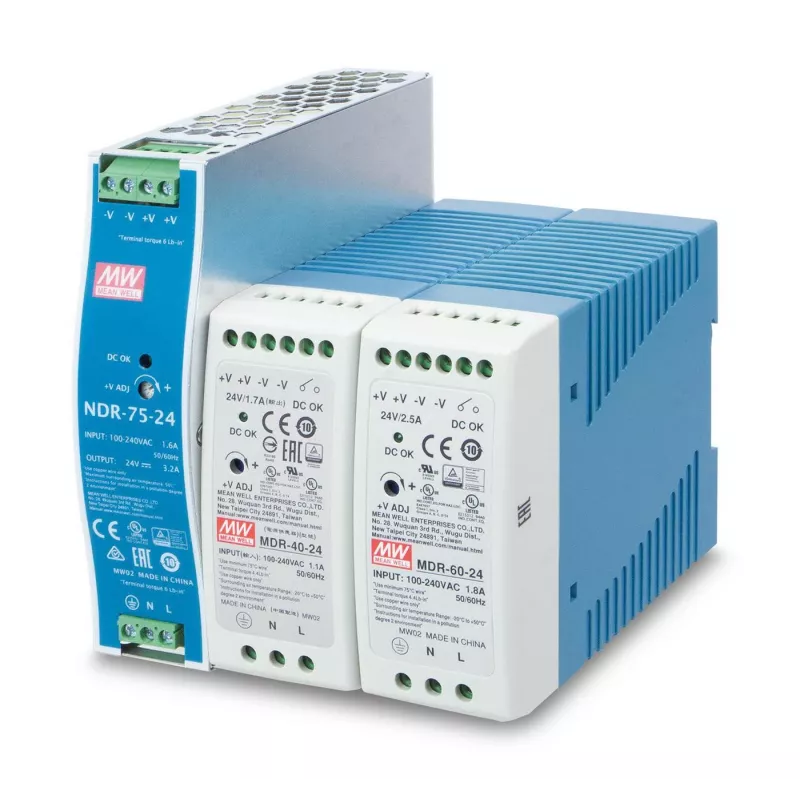

PLANET PWR-60-24 is a compact DIN-rail mounted power supply delivering 60 W output at 24 V DC. It accepts a wide AC input range of 100–240 V, 50–60 Hz, and can also accept DC input. The unit measures 40 mm (W) × 100 mm (D) × 90 mm (H), uses passive (free air convection) cooling, includes LED indicators for power status, and complies with UL508 and TUV EN60950-1 safety standards. Its small footprint and DIN-rail compatibility make it suitable for industrial Ethernet devices and other industrial equipment where a reliable 24 V DC source is required.

Advantages

The PLANET PWR-60-24 combines a universal AC input and DC input capability with a compact enclosure that mounts on a TS-35/7.5 or TS-35/15 DIN rail. Passive cooling allows operation in a wide ambient temperature range (-20 °C to 70 °C), while built-in protections against short circuit, overload, overvoltage and overtemperature support stable operation. LED indicators provide clear status feedback, and compliance with UL508 and TUV EN60950-1 ensures recognized safety and reliability.

Suitable for (tasks / use cases)

• Powering industrial Ethernet switches, routers and network equipment
• Supplying 24 V DC to PLCs, sensors and automation modules
• Industrial control cabinets and DIN-rail installations
• Environments requiring compact, reliable 24 V power with protective features

Key specifications

• Output: 24 V DC, 60 W total
• Input voltage: 100–240 V AC, 50–60 Hz (DC input supported)
• Cooling: passive (free air convection)
• Operating temperature: -20 °C to 70 °C (maximum)
• Dimensions: 40 mm (W) × 100 mm (D) × 90 mm (H)
• Mounting: DIN rail TS-35/7.5 or 15
• Protections: short circuit, overload, overvoltage, overtemperature
• Indicators: LED power status
• Standards: UL508, TUV EN60950-1
• Brand / Model: PLANET PWR-60-24 (MPN: PWR-60-24, EAN: 4711605283304)

How to use

Mount the PWR-60-24 on a TS-35 DIN rail and connect the AC (100–240 V) or approved DC input to the input terminals following local wiring regulations. Connect the 24 V DC output to the load, observing correct polarity. Ensure the unit has adequate ventilation for passive cooling and avoid blocking airflow around the enclosure. Use the LED indicator to confirm presence of output power. For wiring details and terminal torque values refer to the manufacturer wiring diagram and installation instructions.

Recommendations

Install the power supply inside a control cabinet or enclosure that meets the environmental requirements of your application. Verify protective device sizing (fuses/breakers) on the input side and confirm compatibility of the connected loads with a 24 V DC, 60 W supply. Regularly inspect terminals and ventilation openings for dust accumulation in harsh environments.
