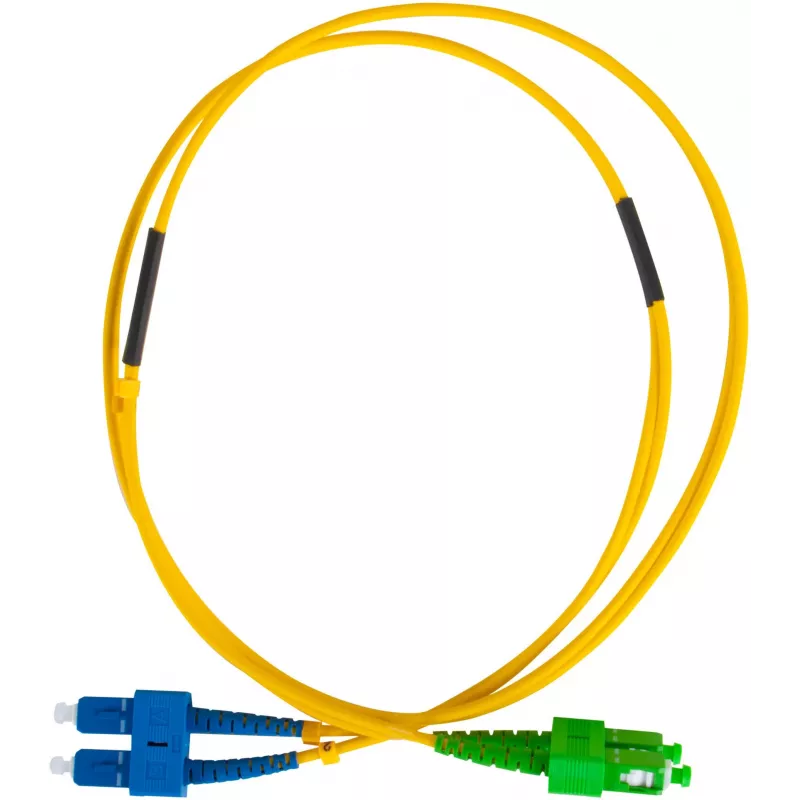

GETFORT latiguillo de fibra óptica SM SC/UPC-SC/APC dúplex 3m

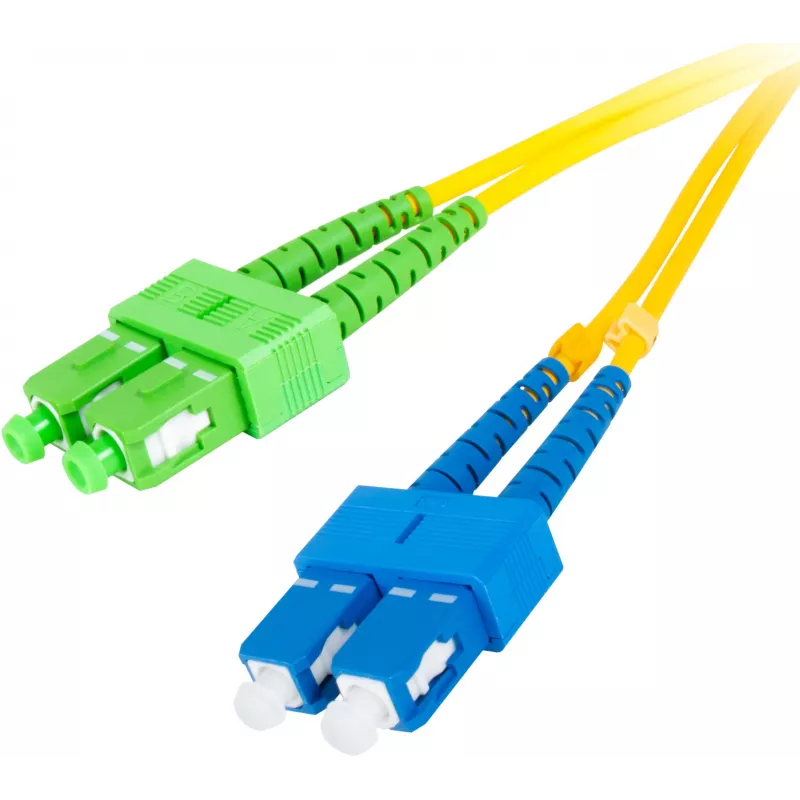

The GETFORT GF-SUSAD3 is a high-quality single-mode fiber optic patch cord designed for reliable, high-speed data transmission in telecommunications, data centers, FTTH, and LAN applications. This duplex cable features SC/UPC to SC/APC connectors, ensuring low insertion loss and high return loss for optimal signal integrity.

Advantages

Engineered with precision ceramic ferrules and LSZH (Low Smoke Zero Halogen) jacket, this patch cord provides excellent durability and safety. The UPC polish on one end and APC polish on the other minimize back reflection, making it ideal for applications requiring high return loss performance.

Suitable for

• Data center interconnects
• Telecommunications networks
• FTTH (Fiber to the Home) installations
• Local Area Networks (LAN)
• Test equipment and patch panels

Key specifications

• Fiber Type: Single-Mode (SM) 9/125 µm
• Connector End 1: SC/UPC
• Connector End 2: SC/APC
• Cable Configuration: Duplex
• Length: 3 meters
• Insertion Loss: ≤ 0.3 dB
• Return Loss (UPC): ≥ 50 dB
• Return Loss (APC): ≥ 60 dB
• Jacket Material: LSZH
• Cable Diameter: 3.0 mm
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C

Recommendations

For optimal performance, ensure connectors are clean before mating. Avoid sharp bends exceeding the minimum bend radius. This patch cord is compatible with standard SC ports and is ideal for high-speed networks requiring low loss and high return loss.
