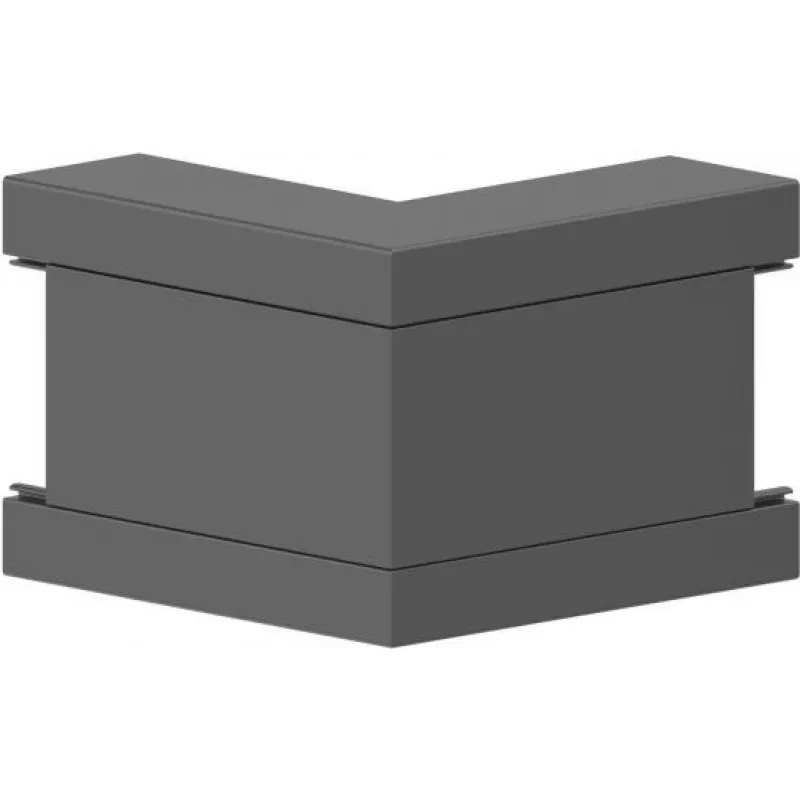

GGK BR 60x130/80-AE Esquina exterior 60x130/80 RAL 9005 PVC (12793)

Snap-on external corner for GGK BR cable trunking, 60 mm height × 130 mm width, jet black (RAL 9005) PVC. Provides a 90° bend for cable routing and protection.

Overview

The GGK BR 60x130/80-AE is an external corner piece for the GGK BR cable trunking system. It is designed to create a 90-degree change of direction on external corners. The corner piece is made of PVC and comes in jet black (RAL 9005). It fits trunking with a height of 60 mm and width of 130 mm.

What stands out

• Snap-on / clip-on installation for quick assembly
• Self-extinguishing PVC material
• Temperature resistance from -5°C to +60°C
• Smooth surface finish

Technical details

• Product type: External corner piece
• System compatibility: GGK BR cable trunking system
• Trunking height compatibility: 60 mm
• Trunking width compatibility: 130 mm
• Trunking depth compatibility: 80 mm
• Material: Polyvinyl Chloride (PVC)
• Colour: Jet black (RAL 9005)
• Corner angle: 90 degrees
• Installation type: Snap-on / clip-on
• Application: Cable routing and protection
• Fire behaviour: Self-extinguishing
• Temperature resistance: -5°C to +60°C
• Halogen-free: No
• Protection class: IP20
• UV resistance: Limited (indoor use)
• Certifications: CE, VDE
• Internal dividers support: Yes
• Surface finish: Smooth
• Impact resistance: IK07

Our verdict

This external corner piece is a straightforward solution for completing cable trunking installations around external corners. Its snap-on design and durable PVC construction make it suitable for indoor cable management.
