GGK BR 60x130/80-IE esquina interior 60x130/80 RAL 9005 negro intenso PVC 12795

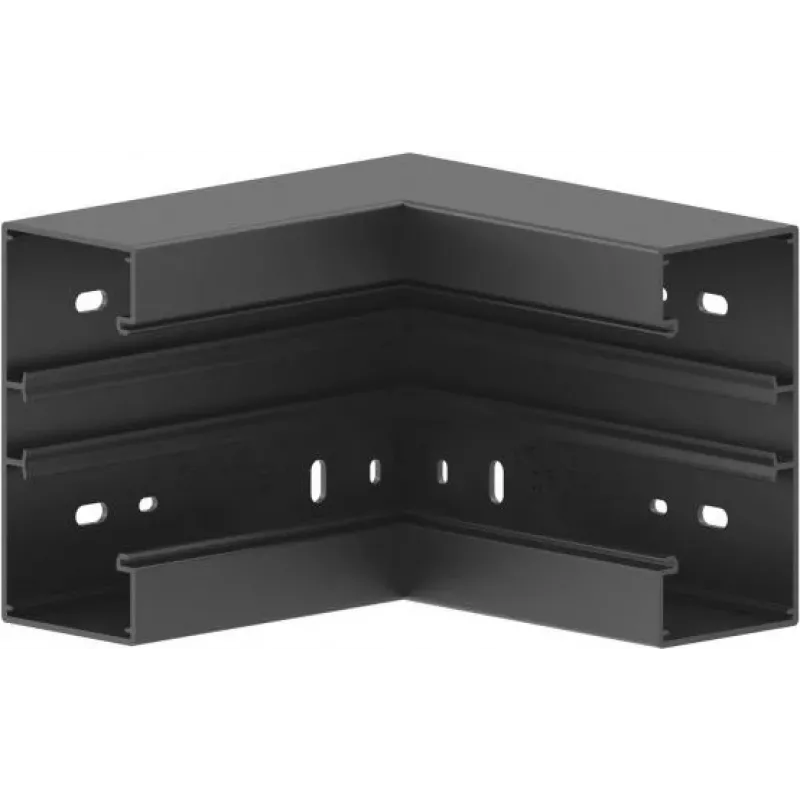

Inner corner piece for GGK BR cable trunking, enabling a 90° internal turn in 60x130 mm duct runs. Snap-on installation for secure connection without tools.

Advantages

Made from PVC with a smooth jet black finish (RAL 9005), it matches the trunking profile for a seamless appearance. The clip-on design speeds up assembly and maintains cable protection at corners.

Suitable for

• Indoor cable routing and protection in residential or commercial installations
• Connecting two GGK BR 60x130 trunking sections at an internal corner

Key specifications

• Compatible trunking dimensions: 60 mm height x 130 mm width
• Material: Polyvinyl Chloride (PVC)
• Colour: Jet Black (RAL 9005)
• Corner angle: 90°
• Installation: Snap-on / Clip-on
• Operating temperature: -5°C to +60°C
• Halogen-free: No
• UV resistance: No

Recommendations

Use with GGK BR 60x130 trunking for a consistent system. For external corners, pair with the corresponding outer corner piece.
