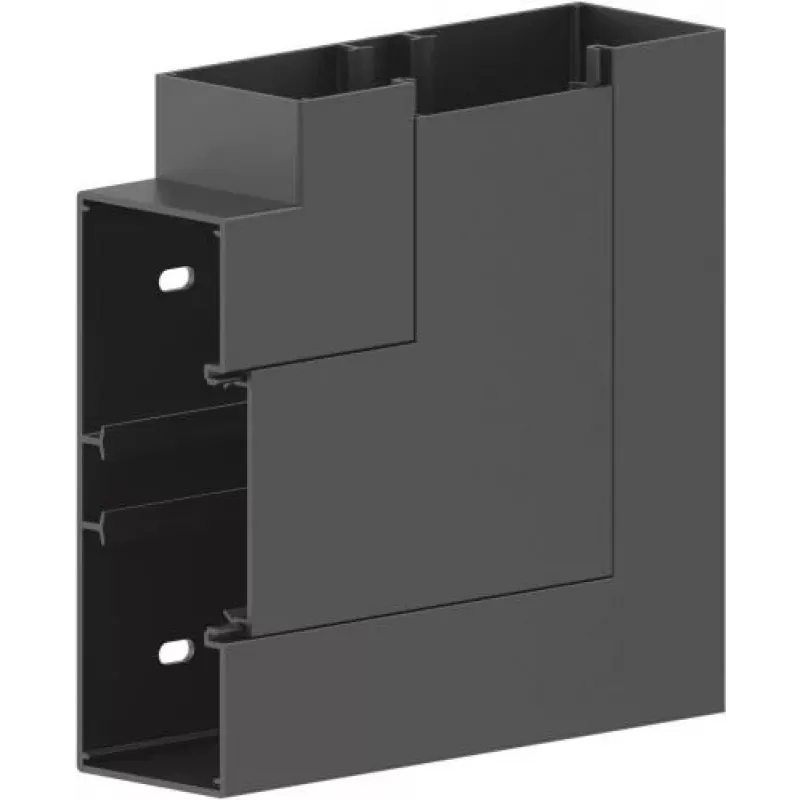

GGK BR 60x170/80-FW Ángulo plano 60x170/80 negro intenso PVC 12746

Electricians and network installers working with GGK BR 60x170 trunking use this flat angle to route cable runs around internal corners cleanly. The 90° bend keeps conductors organised and protected where the duct changes direction, avoiding kinks or exposed wiring.

Key specifications

• Compatible trunking size: 60 x 170 mm
• Material: PVC
• Colour: Jet Black (RAL 9005)
• Angle: 90° internal flat angle
• Mounting: Snap-on / clip-on
• UV resistant
• Temperature range: -5°C to +60°C
• Fire behavior: Self-extinguishing
• Compliance: EN 50085

Why choose it

The GGK BR flat angle matches the trunking profile precisely, so the joint stays flush and professional. PVC resists UV and everyday impacts, while the snap-on design speeds up installation without extra fasteners.

Ideal use cases

• Routing cable trunking around internal wall corners in offices or industrial buildings
• Creating neat 90° turns in surface-mounted cable management systems
• Protecting power and data cables where ducting changes direction

Good to know

This corner piece is part of the GGK BR series and is intended for indoor use. It is not halogen-free, so check project requirements for low-smoke environments.
