GGK BR 60x170/80-IE esquina interior 60x170/80 negro intenso PVC 12729

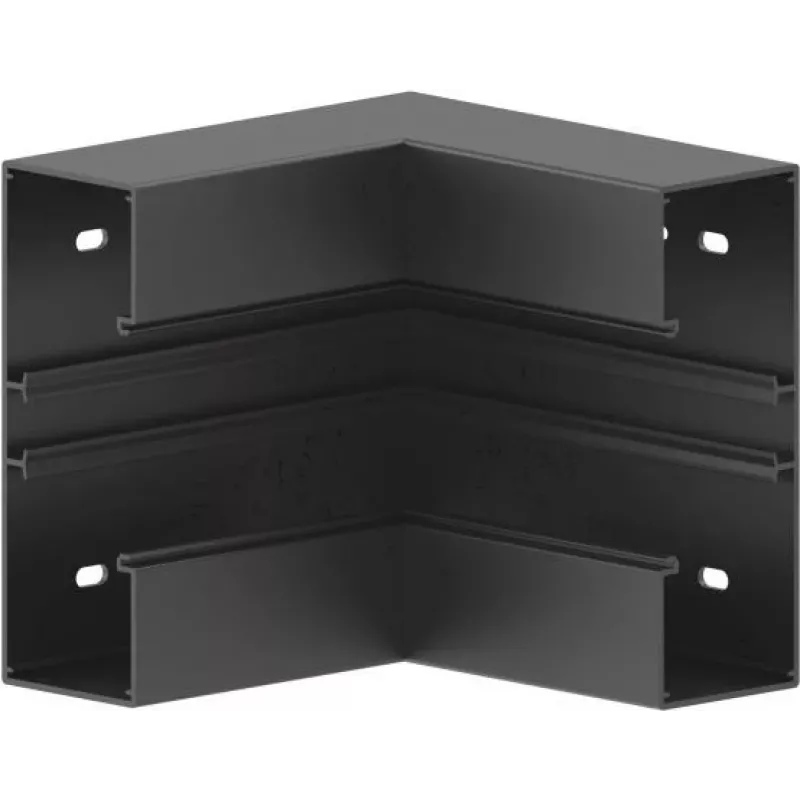

Inner corner for the GGK BR 60x170/80 trunking system, made of PVC in jet black (RAL 9005).

Overview

This inner corner is designed for the GGK BR 60x170/80 cable trunking system. It allows a clean 90° turn inside a corner, maintaining the trunking profile. The component is made of PVC and is jet black (RAL 9005). It snaps onto the trunking sections without tools.

What stands out

• Compatible with GGK BR 60x170/80 trunking
• Material: PVC
• Colour: Jet black (RAL 9005)
• Angle: 90°
• Mounting: Snap-on / Clip-on

Technical details

• Product type: Inner corner
• Trunking height: 60 mm
• Trunking width: 170 mm
• Angle: 90°
• Material: PVC
• Colour: Jet black (RAL 9005)
• Mounting type: Snap-on / Clip-on
• Application: Cable management, electrical installations
• Product series: GGK BR 60x170/80
• UV resistance: No (indoor use)
• Halogen-free: No
• Self-extinguishing: Yes
• Operating temperature range: -5°C to +60°C
• Impact resistance: IK07
• RoHS compliant: Yes
• REACH compliant: Yes

Our verdict

A precise inner corner for the GGK BR 60x170/80 trunking system, ensuring neat cable routing at 90° turns.
