Gira Carcasa de superficie 3 elementos marco negro mate 106309

Impact-resistant IK05 surface-mounted housing with frame for 3 Gira System 55 inserts, in black matte finish.

Overview

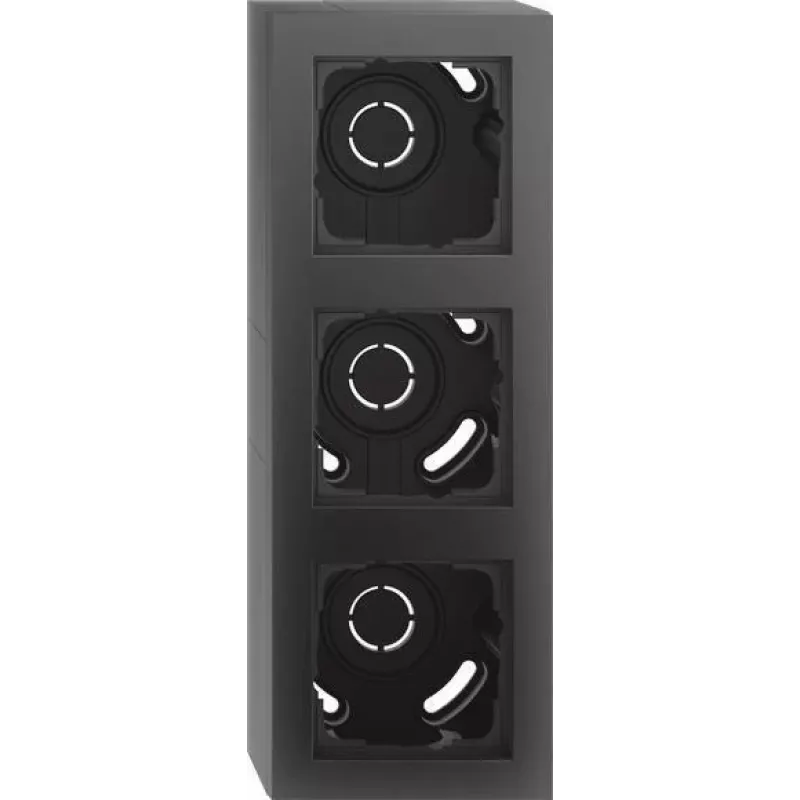

The Gira 106309 is a surface-mounted housing with frame, designed to accommodate three inserts from the Gira System 55 range. Its shatter-proof thermoplastic construction ensures durability, while the matte black finish provides a clean, modern appearance. The housing is suitable for indoor use in dry rooms and can be mounted horizontally or vertically.

What stands out

• Impact resistance rated IK05 for robust protection
• Halogen-free and UV-resistant material
• Pre-punched cable entries for easy installation
• Compatible with Gira System 55 inserts

Technical details

• Number of gangs: 3
• Material: Thermoplastic, shatter-proof
• Colour: Black
• Finish: Matte
• Mounting type: Surface-mounted
• Protection class: IP20
• Impact resistance: IK05
• Halogen-free: Yes
• UV-resistant: Yes
• Operating temperature: -5 °C to +45 °C
• Dimensions (W x H x D): 222.2 x 80.8 x 47.0 mm
• Installation method: Screw mounting
• Orientation: Horizontal or vertical

Our verdict

A reliable surface-mounted housing that offers solid impact protection and a sleek matte black look for Gira System 55 installations.
