Grabador IP 16 canales 5 en 1 AHD HD-CVI HD-TVI CVBS APTI-XB1601

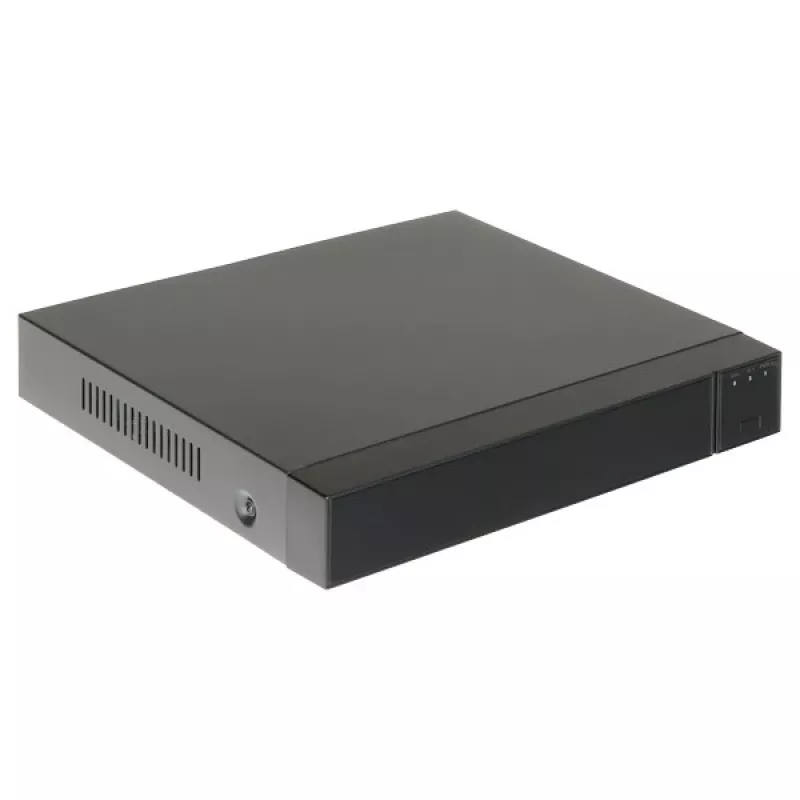

The APTI-XB1601 is a versatile 16-channel hybrid video recorder that supports AHD, HD-CVI, HD-TVI, CVBS, and IP cameras (5-in-1). It offers up to 1080p analog recording and can expand to 24 IP channels in NVR mode. With H.265+ compression, a single SATA bay (up to 8TB), and remote access via XMEye, this recorder is ideal for medium-sized security installations.

Advantages

Hybrid 5-in-1 technology allows mixing different camera types. H.265+ compression saves storage and bandwidth. Easy setup with plug-and-play and mobile app support.

Suitable for

• Retail stores and offices
• Warehouses and logistics centers
• Residential complexes
• Small to medium businesses

Key specifications

• Video Input: 16 BNC (Analog) + 8 IP (max 24 IP in NVR mode)
• Analog Resolution: Up to 1080p (1920x1080) @15fps
• IP Resolution: Up to 5MP
• Compression: H.265+/H.265/H.264+/H.264
• Storage: 1x SATA HDD up to 8TB
• Video Output: 1x HDMI, 1x VGA (1080p)
• Audio: 1x RCA input, 1x RCA output
• Network: 1x RJ45 10/100Mbps Ethernet
• USB: 2x USB 2.0
• PTZ Control: RS485, Coaxitron (UTC)
• Power: DC 12V/2A
• OS: Embedded Linux
• Mobile App: XMEye (iOS/Android)

Recommendations

For optimal performance, use high-quality BNC cables and a compatible SATA HDD. Ensure the power supply is stable. The recorder supports up to 8TB HDD; check compatibility before purchase.
