HAGER 3x juego de barras colectoras de cobre universUM30V4 conexión CT 30x10x170mm estañado (UM30V4)

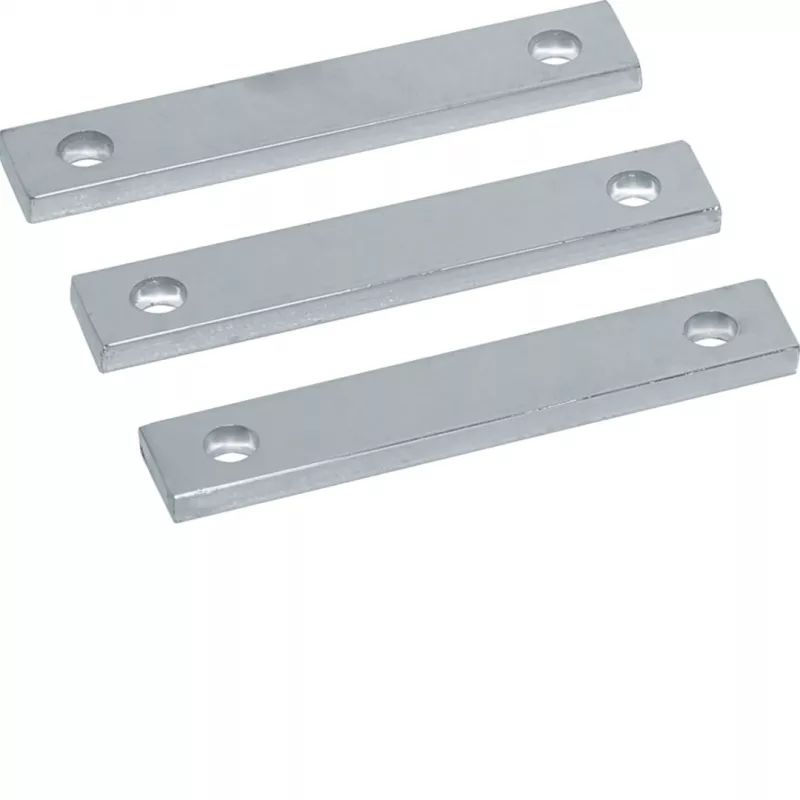

The HAGER UM30V4 is a high-quality copper busbar set designed for current transformer (CT) connections within the Hager universUM30V4 distribution system. This set includes three tin-plated electrolytic copper busbars, each measuring 30x10x170mm, ensuring reliable and efficient power distribution.

Advantages

Tin-plated surface provides excellent corrosion resistance and maintains low contact resistance. The 300 mm² cross-section supports high current capacity up to 630 A, making it suitable for demanding industrial applications. Easy integration into the universUM30V4 system simplifies installation.

Suitable for

• Current transformer connections in Hager universUM30V4 distribution systems
• Industrial and commercial power distribution panels
• Applications requiring high current capacity and reliable connections

Key specifications

• Product Type: Copper Busbar Set
• Number of Busbars: 3
• Material: Electrolytic Copper (E-Cu), tin-plated
• Dimensions: 30 mm width, 10 mm thickness, 170 mm length
• Cross-Sectional Area: 300 mm²
• Nominal Current Capacity: Up to 630 A (system dependent)
• Standards: Compliant with IEC 61439 (as part of assembly)
• Operating Temperature Range: -5°C to +40°C

Recommendations

For optimal performance, ensure proper torque settings during installation and use compatible Hager components. Verify system compatibility before ordering.
